Brand: Rader Product origin: china Delivery time: within 20 days Supply capacity: 50 thousand per month Gel battery accumulator shows some distinctive advantages over flooded battery or AGM battery, such as super thermal stability, high deep discharge capability, good recovery from deep discharge, even if the battery is left discharged for three days, it will recover to 100% of capacity.
48V15Ah OEM/ODM Rechargeable Lithium Battery Li-ion Lifepo4 Battery Pack
Model:RD-48-15
Product Features
1. Lighter weight, smaller size.
2. High temperature performance.
Product Description
Electrical Characteristics | Technology | Lithium Iron Phosphate |
Nominal Voltage | 48V | |
Nominal Capacity | 15Ah±5%@0.2C | |
Energy | 720Wh | |

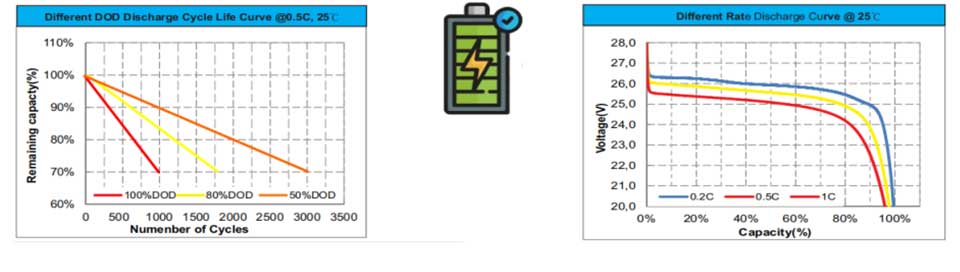

Cycle Life | 100% Depth of Discharge ~2000 cycles | |
Internal Resistance | 30mΩ | |
Self Discharge | ＜3% per month @25℃ | |
Charge | Charge mode | CC&CV(0.2C Constant current & 14.6V Constant voltage@0.02C) |
Max. Charge Voltage | 54.75V | |
Standard Charge Current | 3A | |
Max.Charge Current | 7.5A | |
Discharge | Discharge Cut-o ffVoltage | 37.5V |
Standard Discharge Current | 7.5A | |
Max.Continuous Discharge Current | 15A | |
Pulse Current | / | |
Operating Condition | Storage Temperature | 0℃to45℃(32℉to113℉) |
Humidity | 60±25% | |
Charge Temperature | 0℃to 45℃(32℉to113℉) | |
Discharge Temperature | -20℃to 45℃(32℉to113℉) | |
Structure | Water Dust Resistance | IP55 |
Terminal | F8 | |
Carrying | / | |
Case and Cover | ABS | |
Dimension（L*W*H) | 375*165*110mm
| |
Weight | Approx6.2Kg |

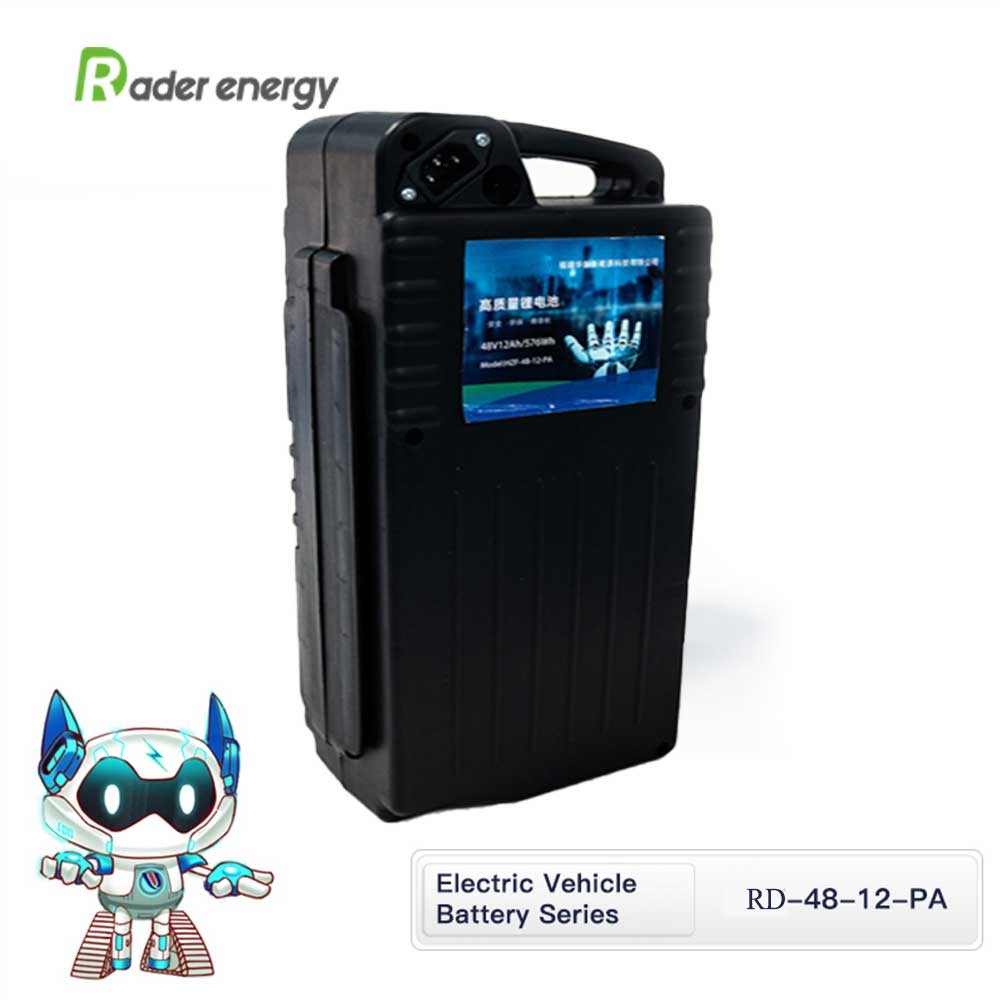

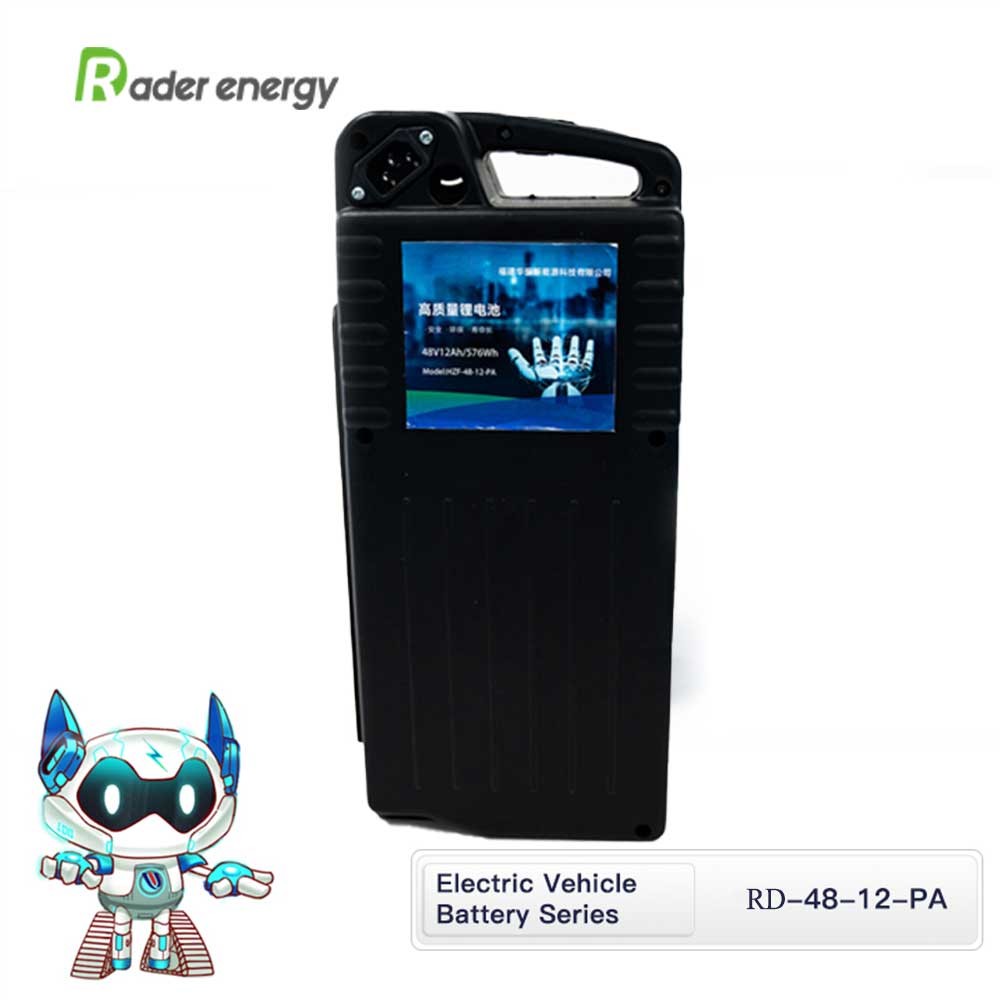

Product Display
