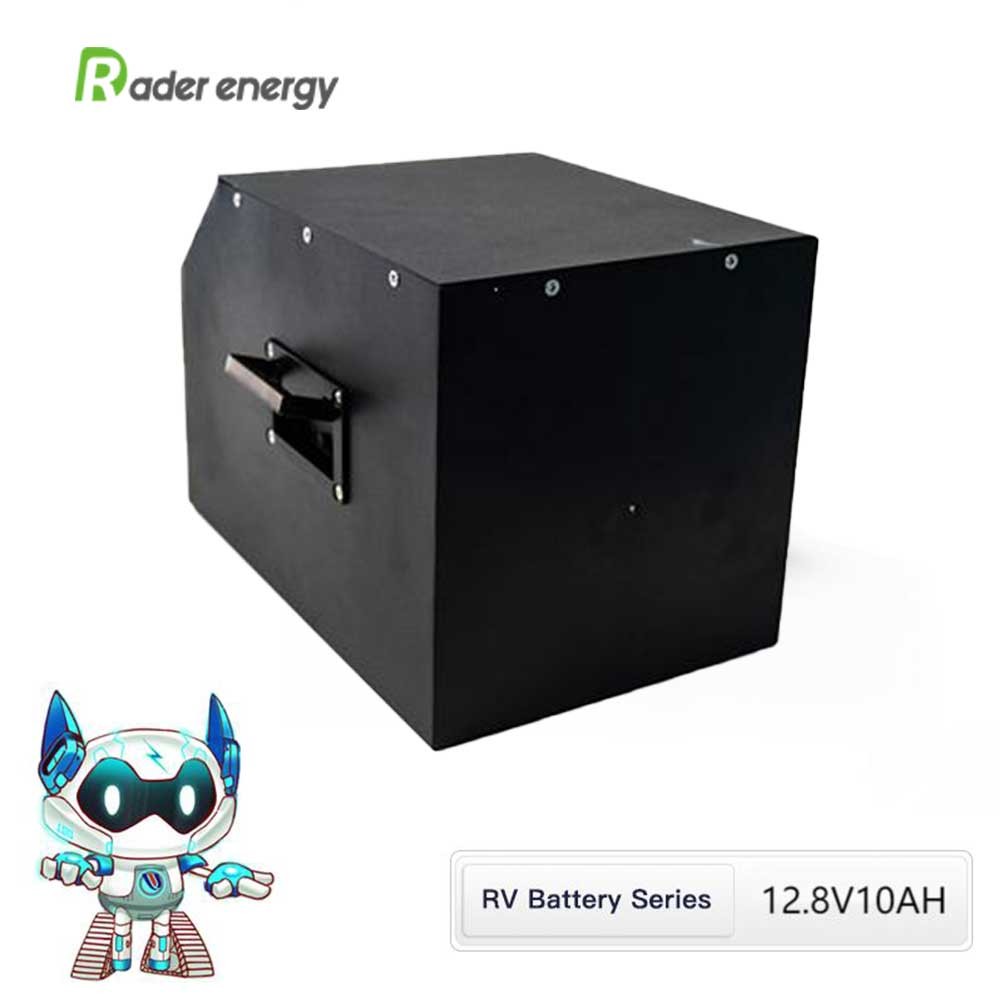

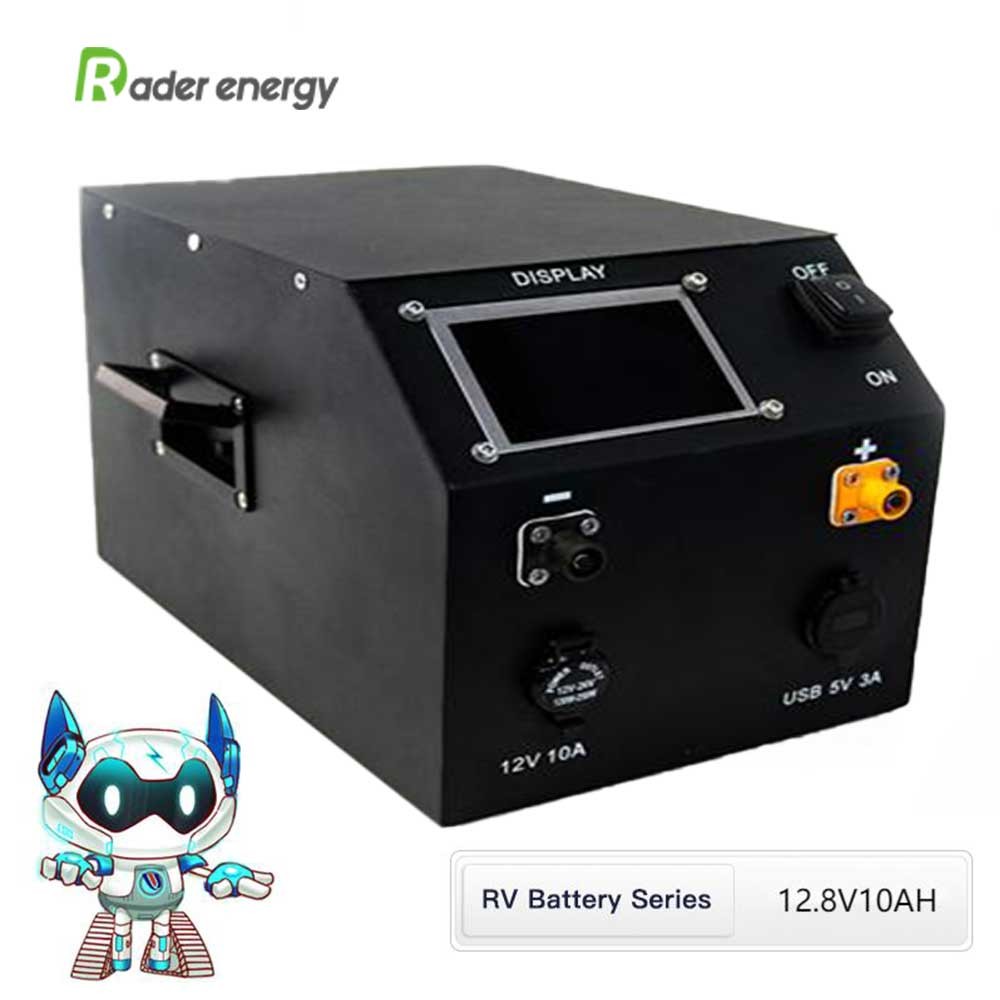

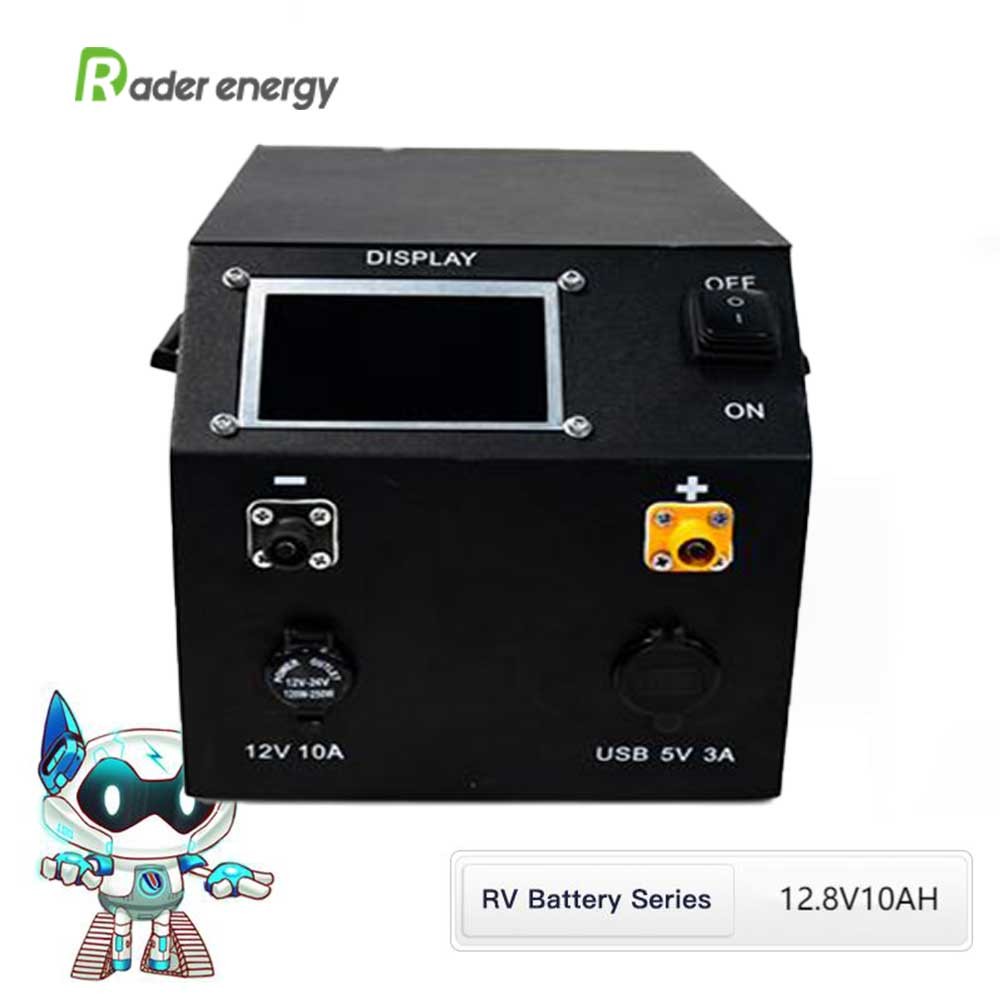

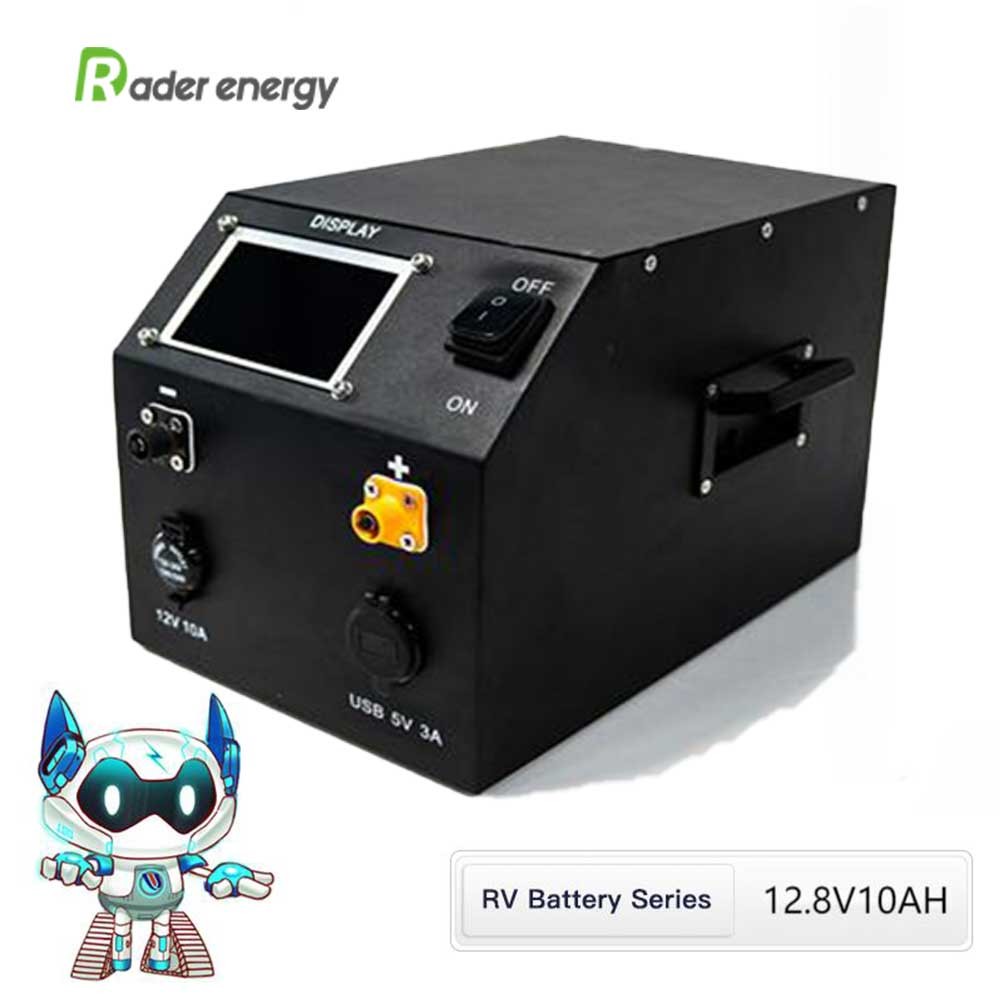

Emergency Backup Power System and RV Travel 12.8V 10Ah Lithium iron Phosphate Battery

Brand: Rader
Product origin: china
Delivery time: within 20 days
Supply capacity:50 thousand per month

1. Long discharge feature.
2. Suitable for backup and energy storage power supply.
3. Special dividers enhance the internal performance of the battery.
4. Special plate design, long cycle life
5. Large heat capacity, reduce the risk of thermal runaway, special lead calcium alloy formula
6. Strengthen the corrosion resistance of the grid and prolong the battery life. Not easy to dry u

Product Description:

RV battery 12.8V10AH

 Preface

This Product Specification describes the technique requirements,test procedures and precaution notes of Lithium-ion Rechargeable cell by Fujian Huazhen New Energy Technology Co.,ltd.

 Description

2.1 Product:RV Lithium Battery

2.2 Model:RD-12.8-10-SA

2.3 Type:LiFePO4  10Ah/12V

 Specification

3.1General

No

 Item

Specifications

 Remark

1

Nominal Capacity

10Ah

0.2C5A discharge at 25℃

2

Nominal Voltage

12.8V

OCV

3

Charge Current

Standard:2.0A;Max:5.0A

Working temperature:0~45℃

10 to 90%RH non condensing

4

Charge cut-off Voltage

14.6V

/CC/CV

5

Discharge Current

Standard:5.0A ;

Max:10A

Working temperature:-20~60℃10 to 90%RH non condensing

temperature:-10~50

6

Discharge cut-off Voltage

10.0V

Not including cycle life,-10℃discharge

7

Pack Voltage

12.8V~13.2V

Shipment status

8

Pack Impedance

<100

50% SOC at 25℃

9

Weight

Approx:1.0kg

ABS Case

10

Dimension

 65×151×94mm

Not included Terminal

Approx

11

Terminals type

F2
