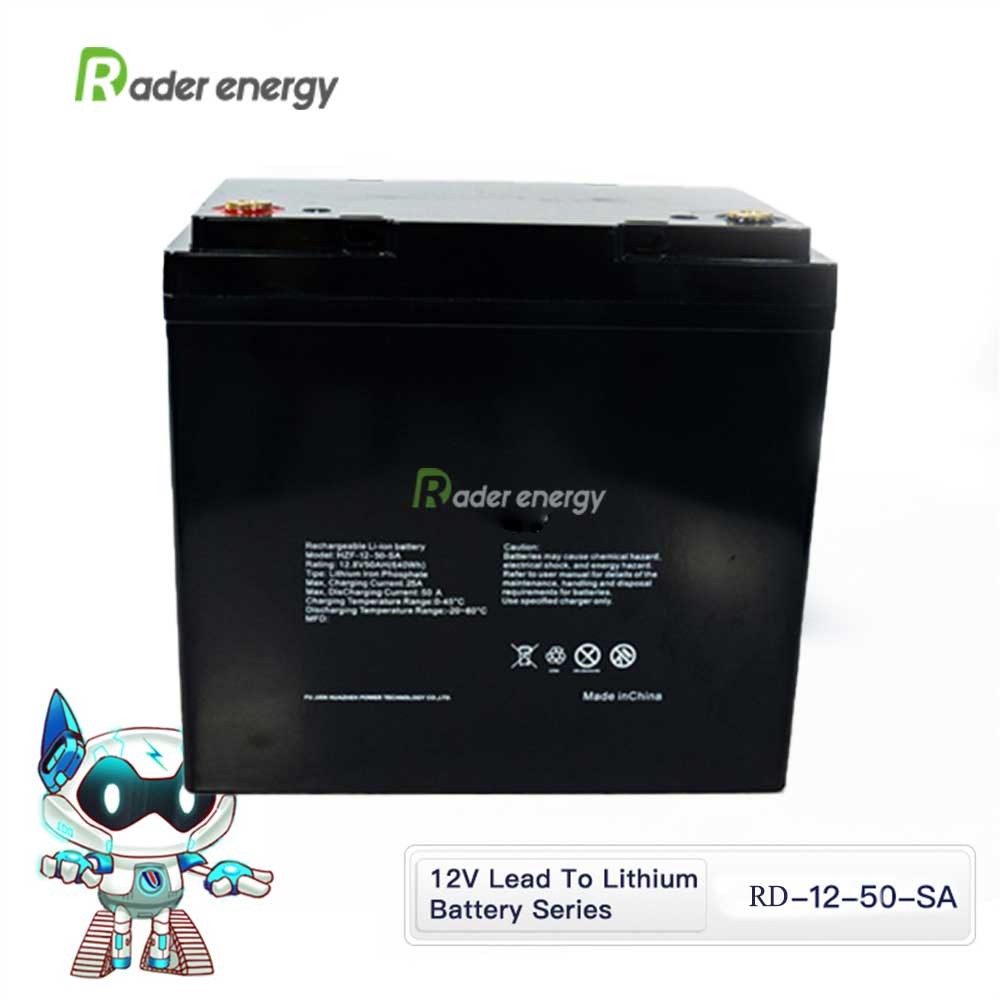

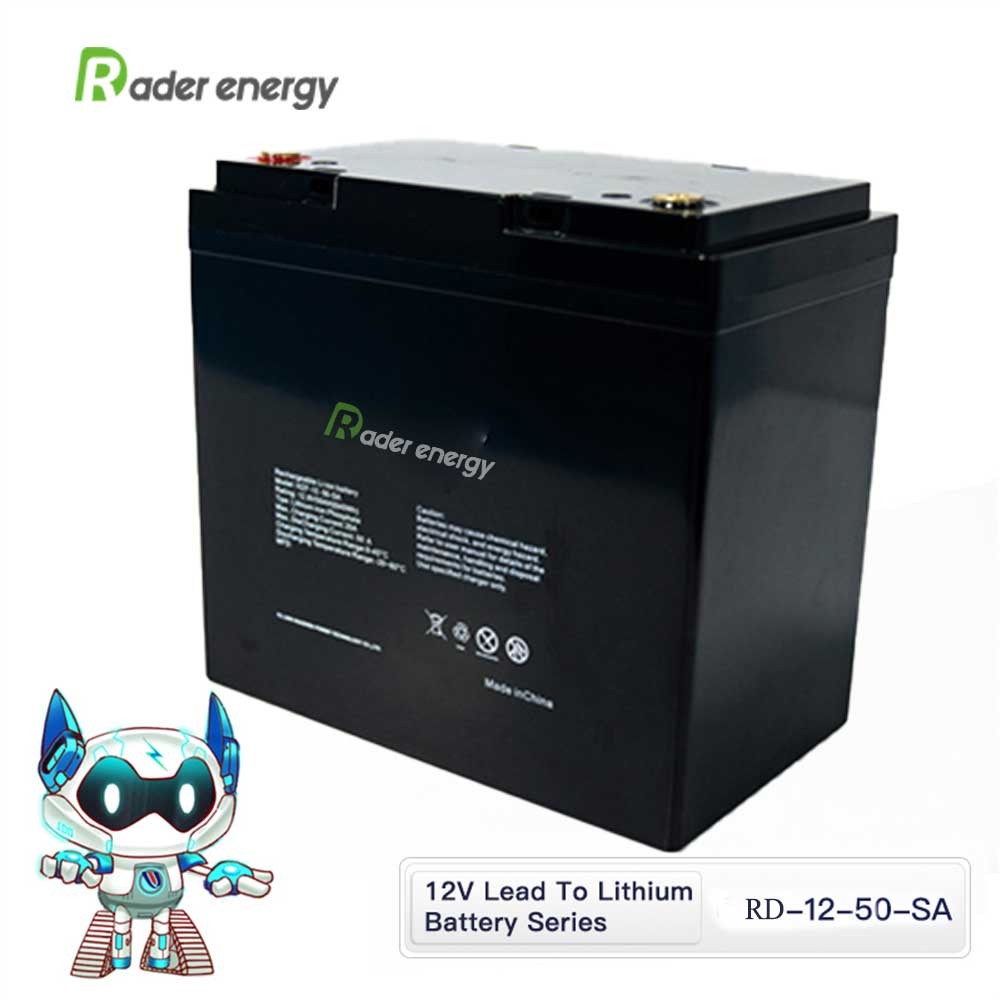

12.8V Motor Vehicle Start Power Battery backup and energy storage power supply

Brand: Rader
Product origin: china
Delivery time: within 20 days
Supply capacity: 50 thousand per month

1. Long discharge feature.
2. Suitable for backup and energy storage power supply.
3. Special dividers enhance the internal performance of the battery.
4. Special plate design, long cycle life
5. Large heat capacity, reduce the risk of thermal runaway, special lead calcium alloy formula
6. Strengthen the corrosion resistance of the grid and prolong the battery life. Not easy to dry

Product Description:

12.8V Motor Vehicle Start Power Battery

1 Preface

This Product Specification describes the technique requirements,test procedures and precaution notes of Lithium-ion Rechargeable cell

It is claimed that we are free of any responsibility with the contingency and loss due to the cells’ wrong usage (not preferred in the product specification)

2 Description

Product：12.8V Start Power Battery battery

Model： RD-12.8-48-PA

Type： LiFePO4 48Ah/12.8V 8P8S

Inner Cells： 32700-3.2V6Ah

3 Specification

3.1General

No	Item	Specifications	Remark
1	Nominal Capacity	48Ah±5%	0.2C₅A discharge at 25℃
2	Nominal Voltage	12.8V	OCV
3	Charge Current	Standard：9.6A；Max：24A	Working temperature:0～45℃
4	Charge cut-off Voltage	29.2V	CC/CV
5	Discharge Current	Standard：24A ；Max：48A	Working temperature:-20~60℃
6	Discharge cut-off Voltage	20V	Not including cycle life,-10℃discharge
7	Pack Voltage	26.62V~26.7V	Shipment status
8	Pack Impedance	≤ 50mΩ	50% SOC at 25℃
9	Weight	Approx: 12.5 kg	ABS Case
10	Dimension	230113293 （Not included Terminal）	Approx
