0.2C Charge Discharge at 100% DOD 2000 cycles 12.8V 280Ah Lithium Iron Phosphate LiFePO4 Battery

Brand: Rader
Product origin: china
Delivery time: within 20 days
Supply capacity: 50 thousand per month

1. Short circuit test, no explosion, no fire
2. Heating test, no explosion, no fire
3. High safety:Over-charging test,no explosion,no fire,over-current,short circuit

Product Description:

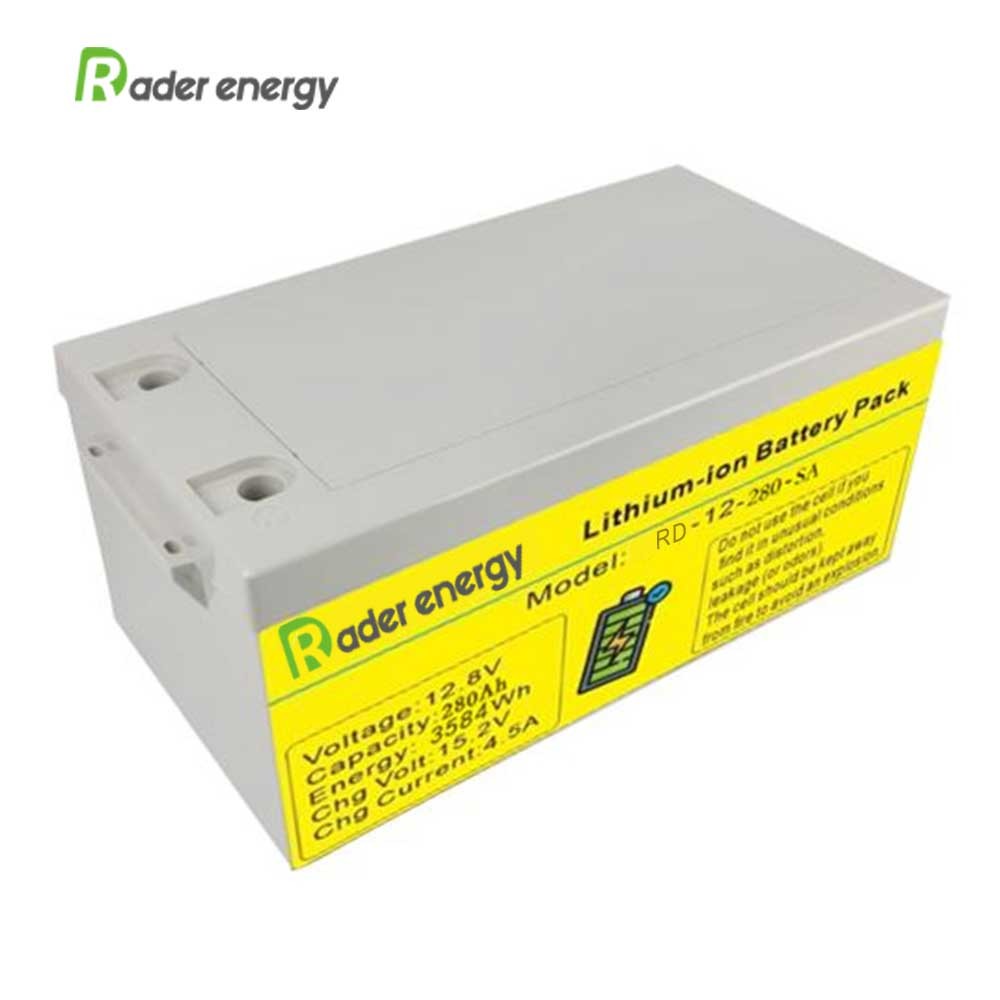

12.8V 280Ah Lithium Iron Phosphate (Lifepo4) Battery

Model: RD-12-280-SA

Product Features

Safest LiFePo4: cells for safe use no ﬁre no explosion

Long Life Cycles: >2000 cycles@0.2C,Charge/Discharge at 100%DOD

Powerful Energy: Quick charging,high quality and high discharge rate lithium battery cells providing more energy.

Light Weight: about 40%~50%of the weight of SLA battery

Built-in intelligent BMS: Over Charge /Discharge voltage and current protection, Short circuit protection ,Over temperature protection.

Clean Energy: HuaXiang Lithium Battery are the ultimate ,No toxic material ,No Pb.

Replacement: Replacement for SLA battery with compatible Housing

Customized: Battery Voltage,Capacity,Current,Size ect all can be customized to meet speciﬁc applications

Product Description

Electrical Characteristics	Technology	Lithium Iron Phosphate
	Nominal Voltage	12.8V
	Nominal Capacity	280Ah±5%@0.2C
	Energy	3584Wh

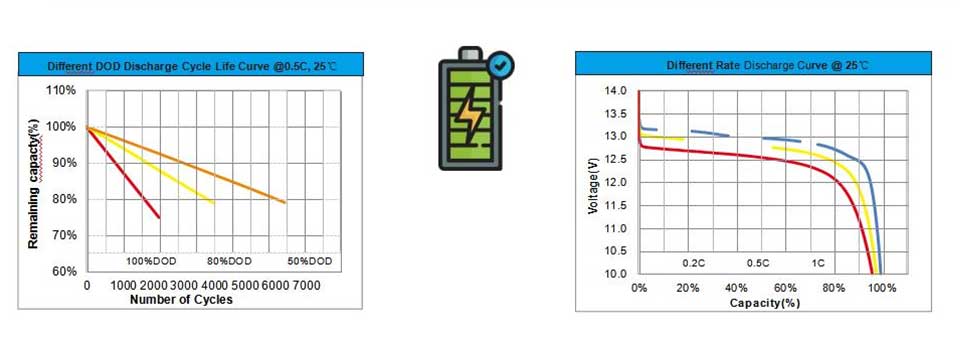

	Cycle Life	100% Depth of Discharge ~2000 cycles
	Internal Resistance	100mΩ
	Self Discharge	＜3% per month @25℃
Charge	Charge mode	CC&CV(0.2C Constant current & 14.6V Constant voltage@0.02C)
	Max. Charge Voltage	14.6V
	Standard Charge Current	56A
	Max.Charge Current	60A
Discharge	Discharge Cut-o ﬀVoltage	10V
	Standard Discharge Current	56A
	Max.Continuous Discharge Current	100A
	Pulse Current	/
Operating Condition	Storage Temperature	0℃to45℃(32℉to113℉)
	Humidity	60±25%
	Charge Temperature	0℃to 45℃(32℉to113℉)
	Discharge Temperature	-20℃to 45℃(32℉to113℉)
Structure	Water Dust Resistance	IP55
	Terminal	F8
	Carrying	/
	Case and Cover	ABS

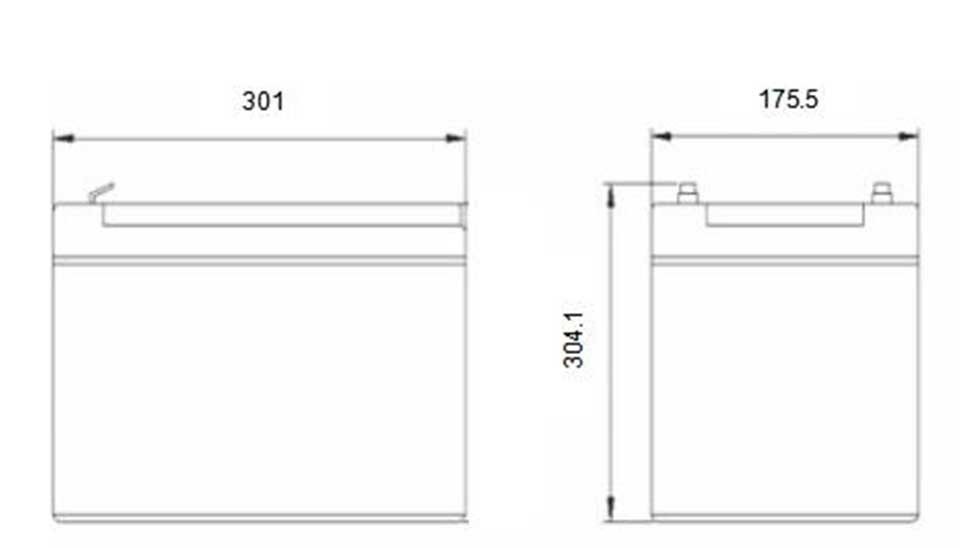

	Dimension（LWH)	301175.5340.1mm
	Weight	Approx25Kg
