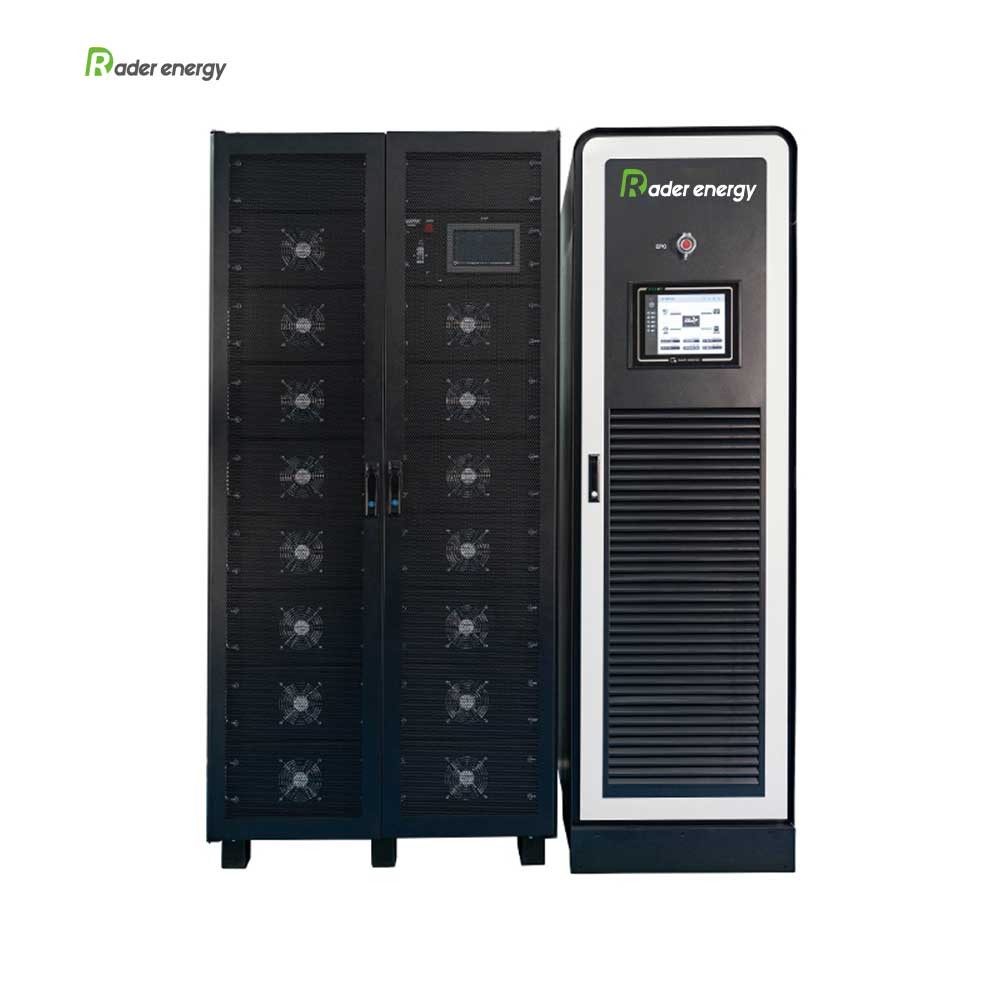

Lithium battery energy storage cabinet

Brand:Rader Energy
Product origin:CHina
Delivery time:45 days
Supply capacity:500 per month
battery cabinet energy storage systems is mainly composed ofbattery, energy storage inverter(PCS), energymanagement system (EMS), battery anagement system (BMS) and other electrical equipment. Secondary BMS design, multiple monitoring of system status, hierarchical linkage. Relays, fuses, circuit breakers, and BMS constitute a comprehensive protection system integrating electrical safety and functiona

PDF
Product Description:

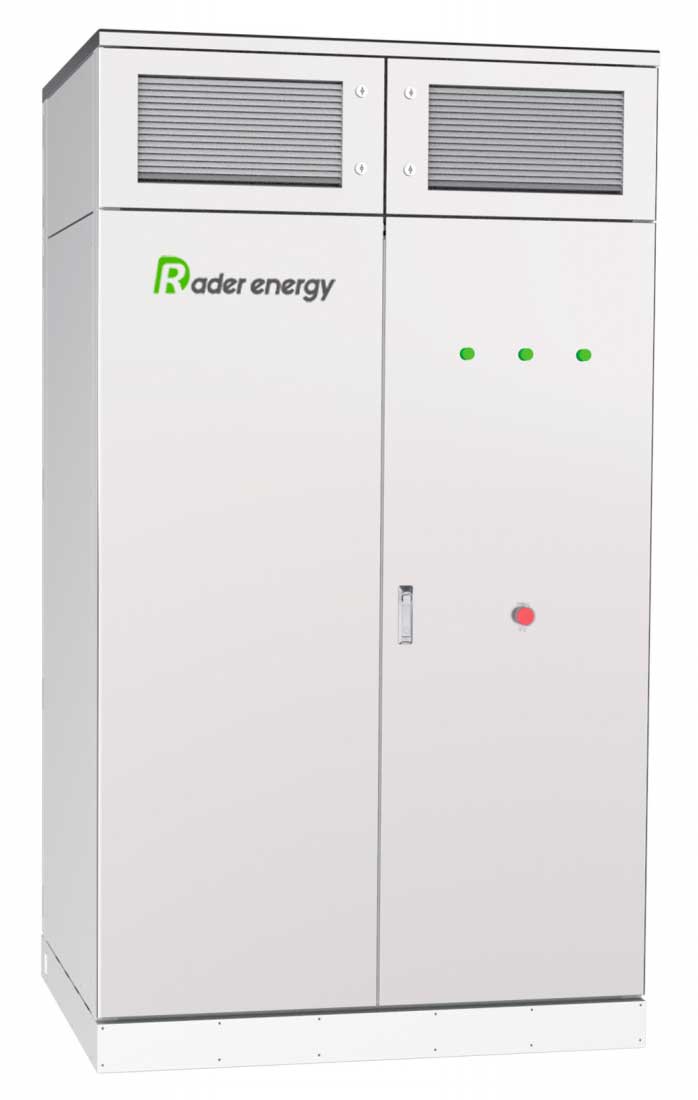

Lithium battery energy storage cabinet

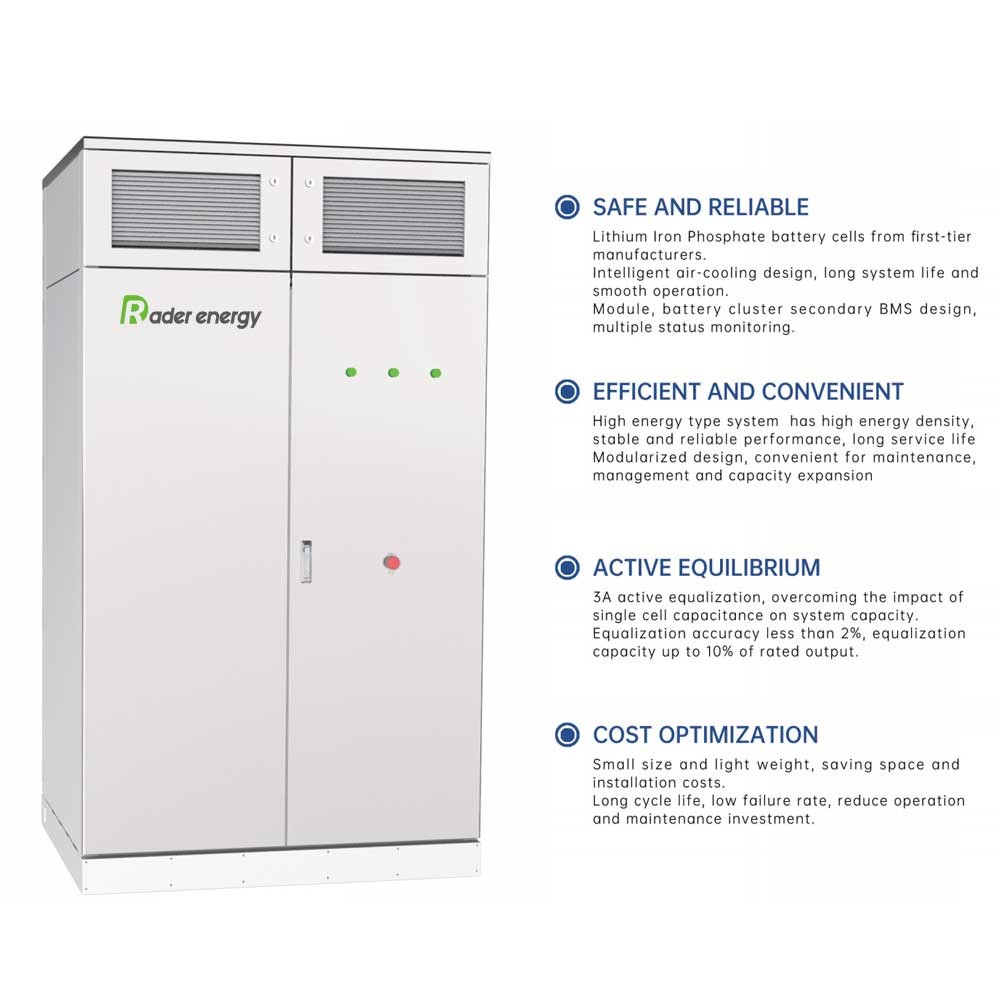

  • SAFE AND RELIABLE

Lithium Iron Phosphate battery cells from first-tier manufacturers.

Intelligent air-cooling design, long system life and smooth operation.

Module, battery cluster secondary BMS design, multiple status monitoring.

  • EFFICIENT AND CONVENIENT

High energy type system has high energy density, stable and reliable performance,

long service life Modularized design, convenient for maintenance,

management and capacity expansion

  • ACTIVE EQUILIBRIUM

3A active equalization, overcoming the impact of single cell capacitance on system capacity.

Equalization accuracy less than 2%, equalization capacity up to 10% of rated output.

  • COST OPTIMIZATION

Small size and light weight, saving space and installation costs.

Long cycle life, low failure rate, reduce operation and maintenance investment.

Summerize

Li-ion battery system mainly consists of battery, power conversion system (PCS), energy management system (EMS), battery management system (BMS) and other electrical equipment. The secondary BMS is designed with multiple monitoring of system status and hierarchical linkage. Relays, fuses, circuit breakers, BMS constitute a comprehensive protection system integrating electrical and functional safety.

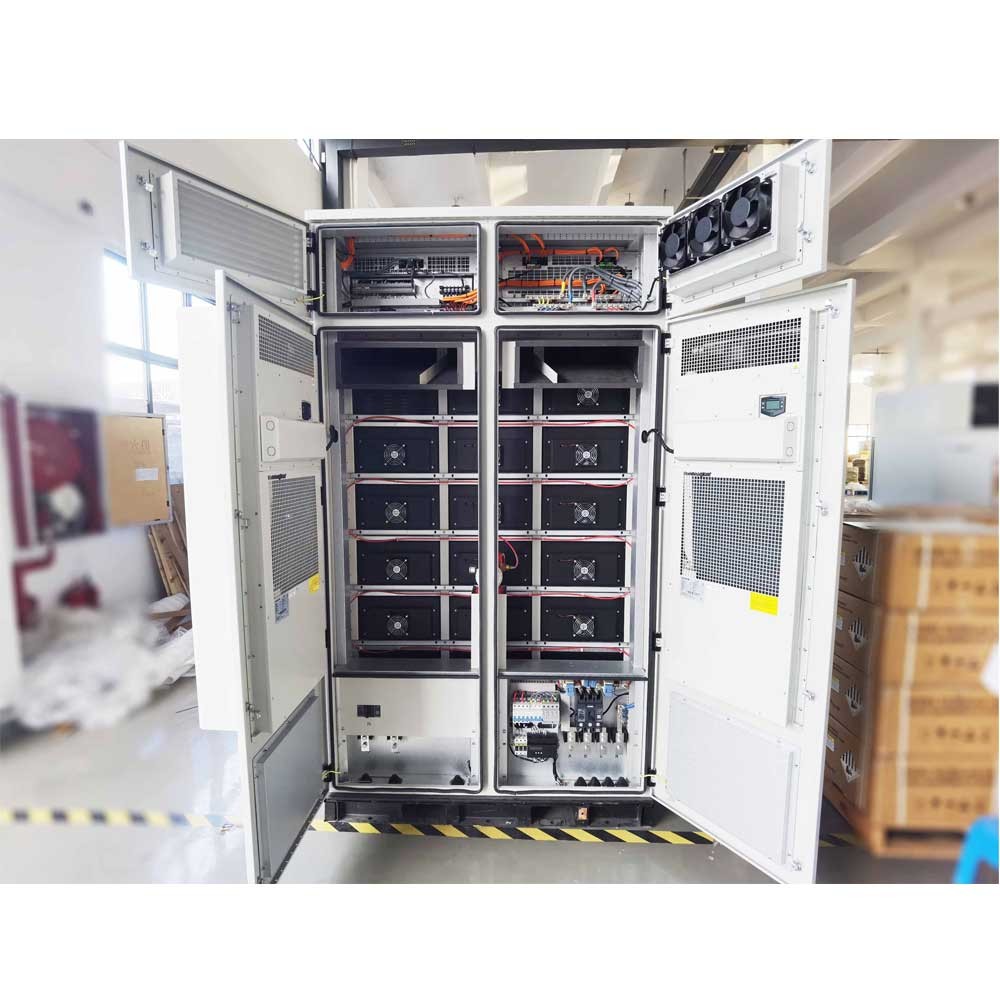

System Components

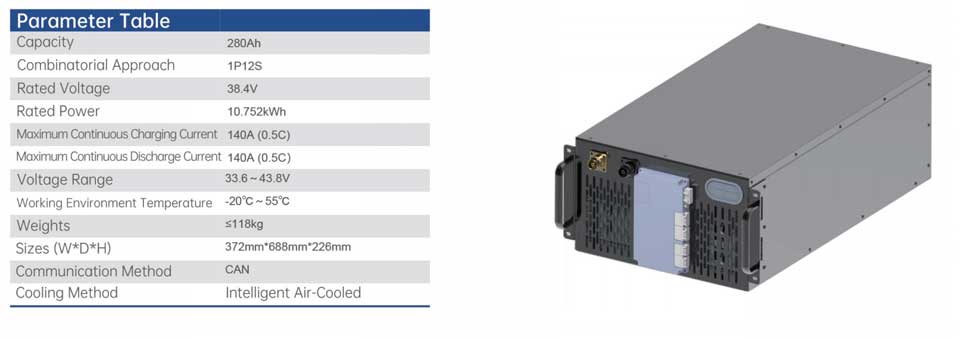

Lithium Battery Module

The system is mainly composed of a safe, efficient and long-life lithium iron phosphate cell through seriesand parallel to form a battery module, several modules in series to form a battery cluster.

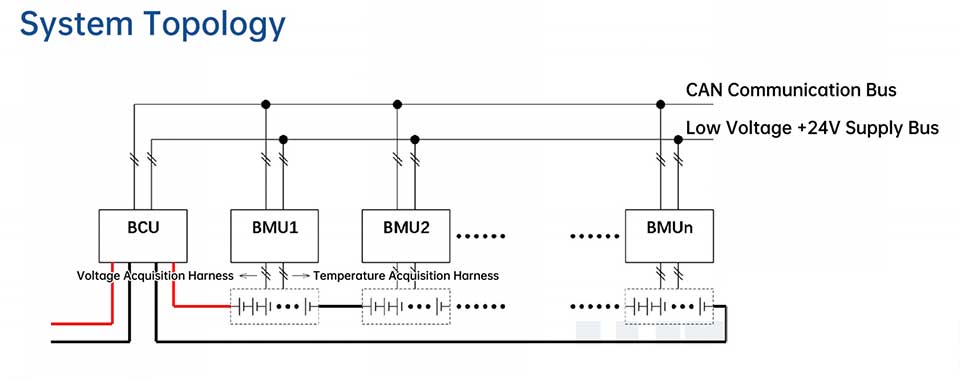

Battery Management System

The core component of the system effectively protects the battery from over-charging, over-discharging, over-current, etc., and at the same time manages the equalization of the battery cells to guarantee the safe, reliable and efficient operation of the whole system.

Monitoring System

System operation data monitoring, operation strategy management, historical data logging, system status logging, etc.

System Features

safe And Reliable

First-line manufacturer cells, intelligent air-cooling design, long life. Module, battery cluster secondary BMS design, multiple status monitoring, three-level electrical protection system.


Efficient And Convenient

High-energy type system has high energy density, stable and reliable performance, long service life, and modularized design, which is convenient for maintenance, management, and capacity expansion.


Active Equilibrium

3A active equalization to overcome the influence of single cell capacitance on system capacity. Equalization accuracy is less than 2%, and equalization capacity reaches 10% of rated output.


Cost Optimization

Small size and light weight, saving space and costs. Long cycle life, low failure rate, reduce 0&M investment.

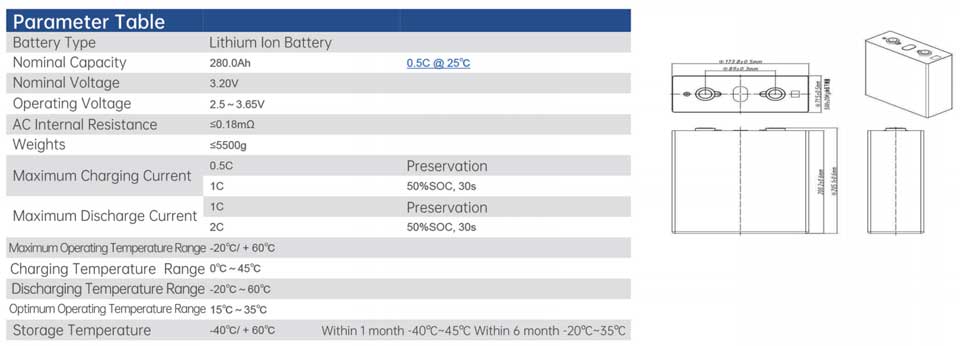

Electric Core

Lithium battery system using 3.2V 280Ah high energy type lithium iron phosphate core, square aluminum shell design, reduces the possibility of damage to the surface of the core due to mechanical damage and of damage to the inside of the core, improves the safety performance of the product. The battery cells are installed with a film-shaped explosion-proof valve to ensure that in any extreme case (such as internal short circuit, battery overcharge and overdischarge, etc.), a large amount of gas quickly gathered inside the battery cell can be discharged through the explosion-proof valve to improve safety.

FAQ

How is the early warning of the security system realized?

BMS three levels, a first level of warning, the second level of alarm power reduction, three levels of power outages; temperature, smoke, combustible gas detection, the use of propane fire extinguishing, there are remote and on-site alarms, far infrared video monitoring and recording and other ways.

How is ultra-high voltage converted to supply voltage?

Inside the enterprise, the ultra-high voltage of the utility power is converted into supply voltage by means of a substation or transformer to supply normal equipment use and energy storage setups.

Warranty issues, cycle count issues, how many cycles is a normal battery?

Warranty 5 years, the first three years free of charge, the next two years to charge the cost of accessories, travel costs; the normal cycle life of the battery in 6000

The normal cycle life of the battery is more than 6000 times, 1 charging and 1 discharging per day can be used for more than 15 years, 2 charging and 2 discharging can be used for more than 8 years.

How do you maximize the efficiency of 2 charging and 2 discharging?

Valley-peak, flat-peak (full charge and discharge) This maximizes system utilization.

What are the configuration facilities of the storage cabinets?

It consists of battery pack, battery management system BMS, energy storage converter PCS, energy management system EMS, fire protection system, monitoring system and other related auxiliary systems.

system, monitoring system and other related auxiliary systems, small size, large storage capacity, high temperature and low temperature resistance.

What are the benefits of energy storage cabinets?

(1) Shaving peaks and filling valleys, saving more than 60% of electricity costs by utilizing the peak and valley price difference.

(2) Not troubled by power outages, pulling the power limit, not affecting normal production.

(3) State subsidies, equipment credit for corporate income tax.

(4) Emergency disaster preparedness standby.

(5) Reduce carbon emissions, grid-connected operation, all benefits, data open and transparent, national grid monitoring and accounting.

(6) Lithium iron phosphate battery will not trigger its own thermal runaway, no explosion, no fire.

How big of a footprint do energy storage cabinets really need?

100kWh-215kWh indoor energy storage cabinets are installed in a footprint of 4m' Weight of about 2.5T, three-sided side-by-side design covers a small area. Outdoor cabinets are designed in accordance with fire protection and temperature control requirements and can be placed in the open space outside the distribution room as per.


Join us to tap into the growing energy storage market

With the advancement of global energy transition and the rapid development of renewable energy, energy storage technology is leading the change of the global energy industry.

1, the proportion of renewable energy power generation will continue to increase, and renewable energy power generation is characterized by intermittency, volatility, etc., the energy storage system can help the power grid to smooth power fluctuations, improve grid efficiency.

2, with the deepening of the power market reform, energy storage system can participate in the peak and valley electricity price differential trading, auxiliary services market, etc., to obtain revenue.

3, with the industrial and commercial enterprises energy saving and emission reduction, improve energy efficiency continue to promote, energy storage system can help industrial and commercial enterprises to reduce electricity costs, improve operational efficiency.

Bloomberg New Energy Finance forecasts that $262 billion will be invested globally in the deployment of 345GW/999GWh of new energy storage systems over the next ten years, and that cumulative deployment of new energy storage systems will reach 358GW/1028GWh globally by 2030. the global energy storage market is set to maintain a high rate of growth at a CAGR of 33% until 2030, as climate extremes and energy scarcity Installed energy storage in some countries and regions will grow at more than 50%.


We are a professional energy storage company with 37 years of continuous operation, rich experience and mature products. We sincerely invite you to become our sales channel partner and develop the market together. We will provide you with the following support:

Provide high quality products and services

Provide perfect pre-sale, in-sale and after-sale service

Provide professional marketing support

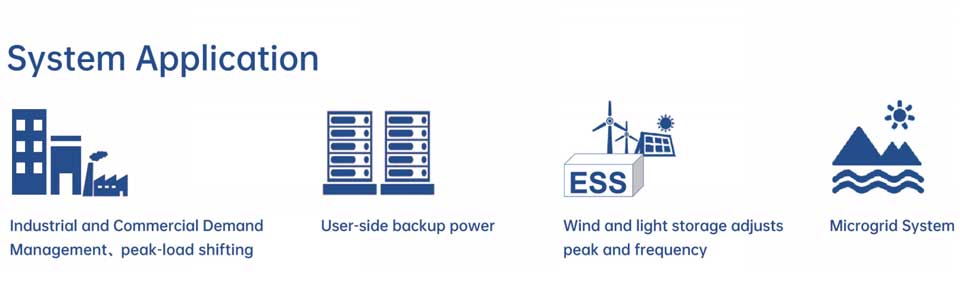

Can provide customers with the following solutions:

Grid peaking:Energy storage systems provide peaking services for the grid through peak and valley tariff differential trading, auxiliary service market, and power peaking. It helps the grid to smooth out power fluctuations, improve grid efficiency and cope with power shortages.

Energy saving in factories:The energy storage system can help factories save electricity costs, improve productivity, reduce costs and minimize pollution through peak shaving and valley filling, self-generation and self-consumption in factories, and charging of electric vehicles.

Commercial operation:Energy storage systems can help commercial enterprises reduce electricity costs and improve operational efficiency through peak shaving and valley filling, emergency power supply, and data centers.

Photovoltaic power plant developers and EPC enterprises:

Photovoltaic power plants are one of the important application scenarios for energy storage systems. PV power plant developers and EPC companies need a large number of energy storage systems during the development and construction of PV power plants. We provide turnkey solutions for integrating energy storage with solar PV systems.

Sellers of energy storage systems:

We offer a wide range of energy storage systems and services to help you reach your customers.
