14.6V Charge Voltage 2000 Cycle Life 12V 7Ah Lithium Iron Phosphate LiFePO4 Battery

Brand: Rader
Product origin: china
Delivery time: within 20 days
Supply capacity: 50 thousand per month
Usage: Remote Control Boat, Remote Control Plane, Remote Control Car, Electronics Products

Product Description:

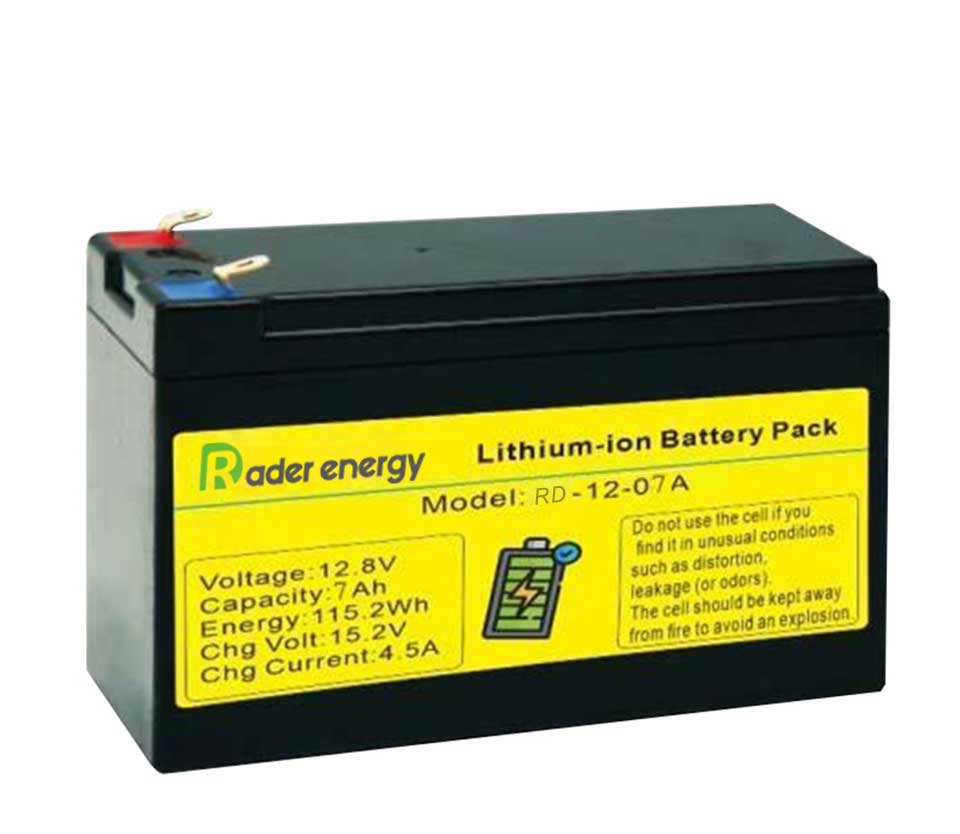

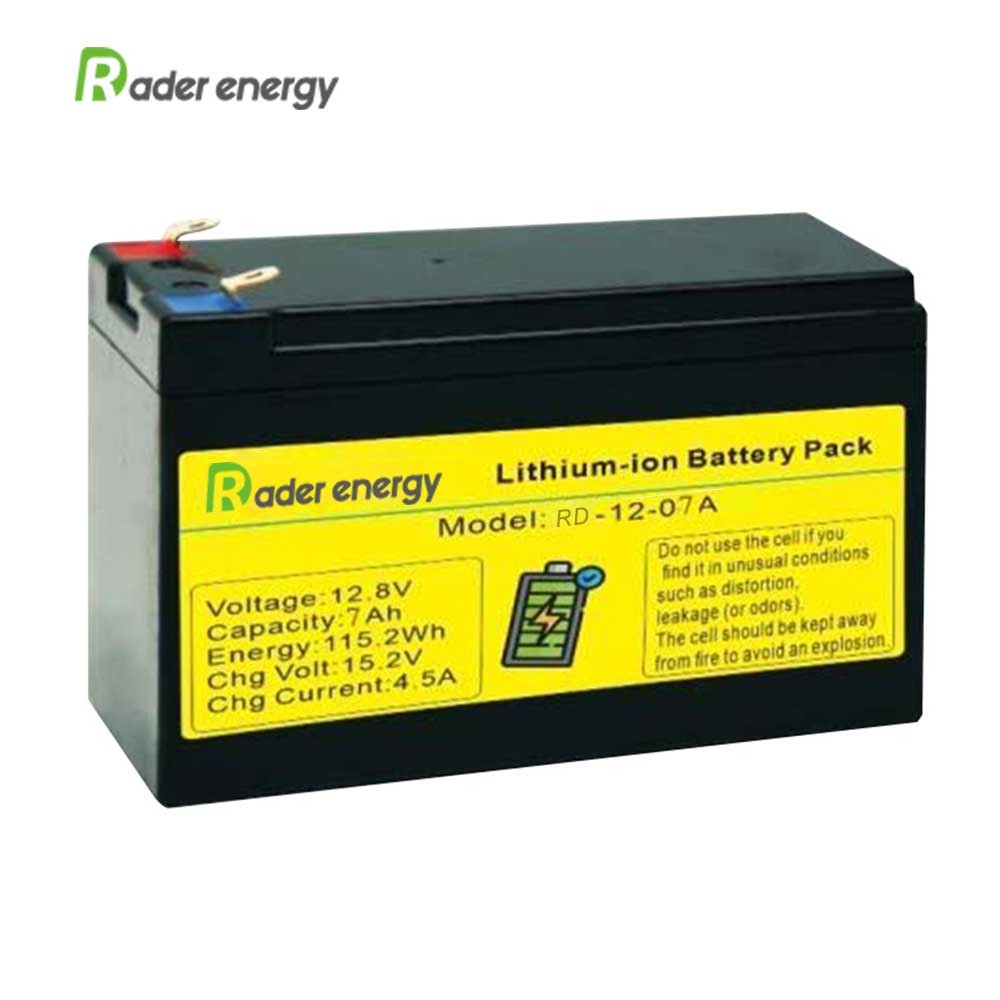

12V 7Ah Lithium Iron Phosphate (Lifepo4) Battery

Model:RD-12-7-SA

Advantages

1. More safety and environmentally friendly;

2. Good high temperature performance ( -20ºC~60ºC);

3. Deep cycle life ( more than 2000 cycles);



Note

Use properly insulated tools to prevent accidental electric shock or short circuits.

If insulated tools are not available, cover the entire exposed metal surfaces of the available tools, except their tips, with electrical tape.


Product Description





Electrical Characteristics

Technology

Lithium Iron Phosphate

Nominal Voltage

12.8V

Nominal Capacity

7Ah±5%@0.2C

Energy

89,6Wh

Cycle Life

100% Depth of Discharge ~2000 cycles

Internal Resistance

90mΩ

Self Discharge

3% per month @25℃





Charge

Charge mode

CC&CV(0.2C Constant current & 14.6V

Constant voltage@0.02C)

Max. Charge Voltage

14.6V

Standard Charge Current

1.4A

Max.Charge Current

3,5A







Discharge

Discharge Cut-o ffVoltage

10V

Standard Discharge Current

1.8A

Max.Continuous

Discharge Current

7A

Pulse Current

20A<3S



Operating Condition

Storage Temperature

0℃to45℃(32℉to113℉)

Humidity

60±25%

Charge Temperature

0℃to 45℃(32℉to113℉)

Discharge Temperature

-20℃to 45℃(32℉to113℉)





Structure

Water Dust Resistance

IP55

Terminal

F1

Carrying

/

Case and Cover

ABS

Dimension(L*W*H)

151X65X95mm

Weight

Approx 0,85Kg
