1. Description

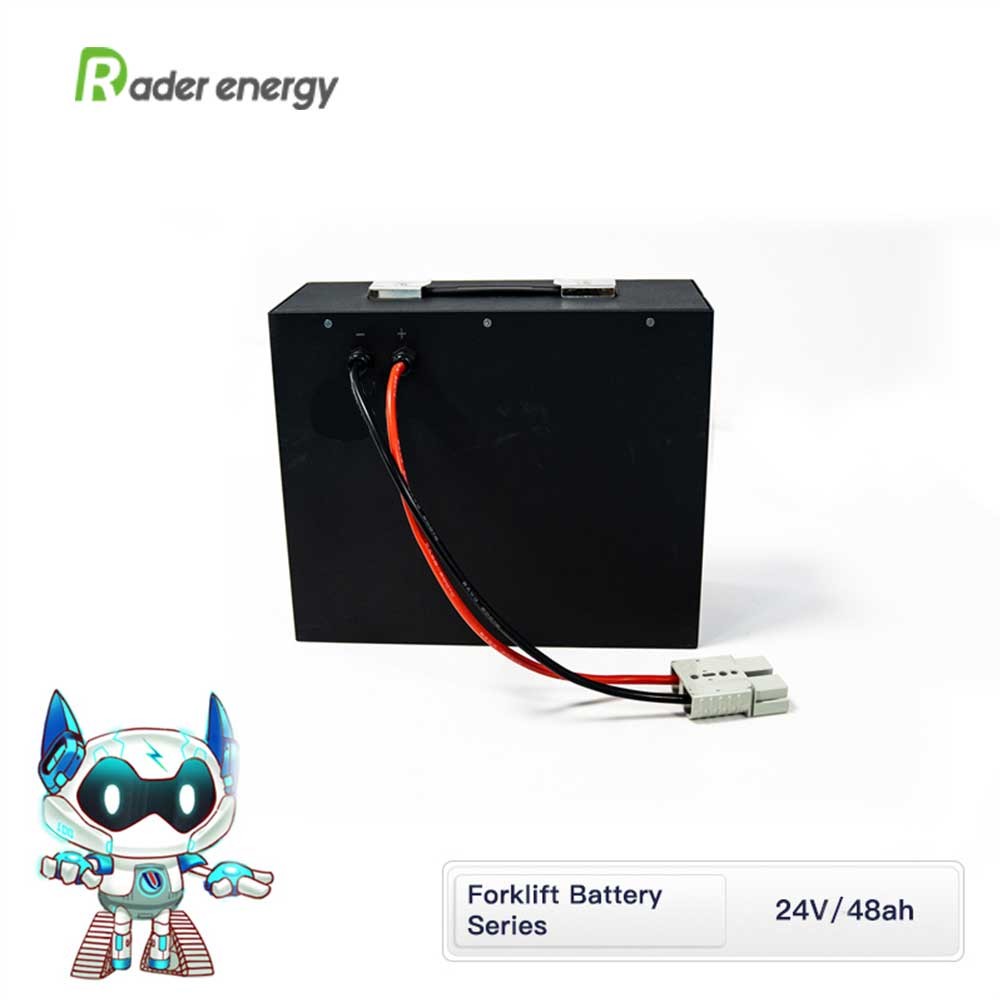

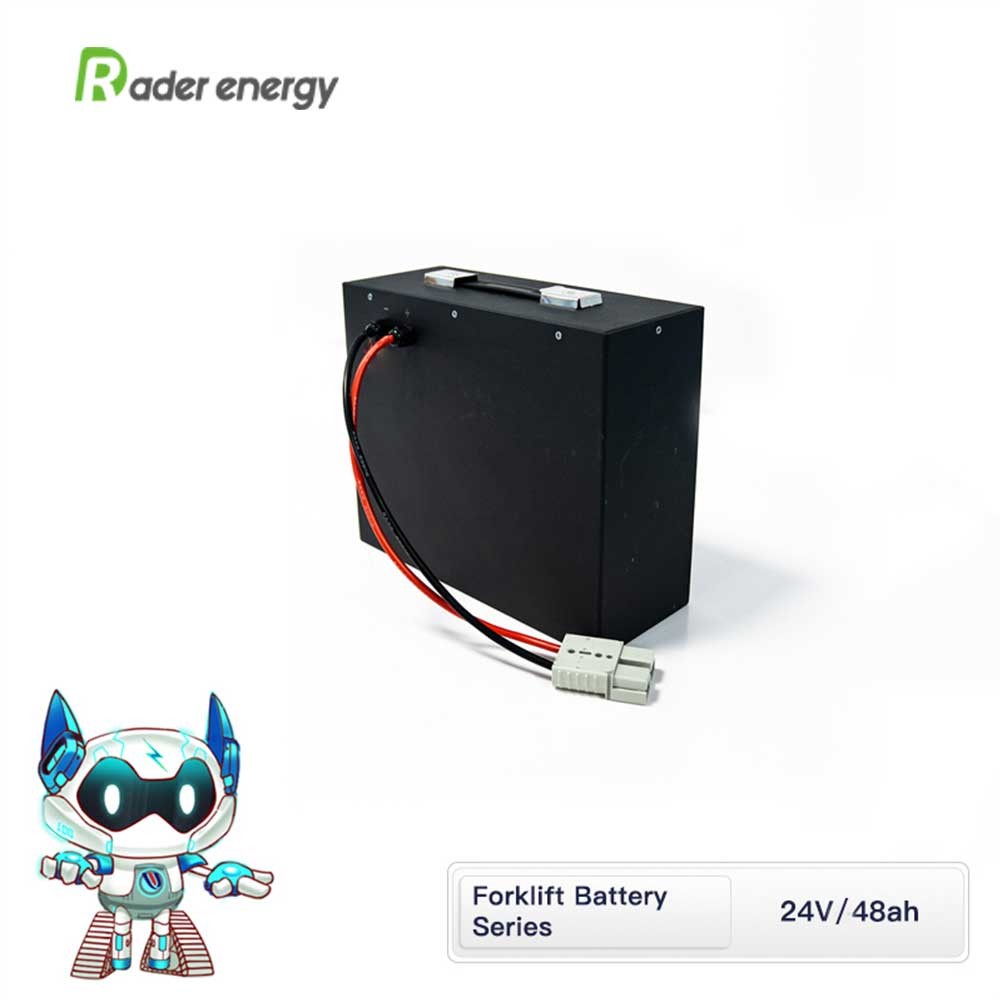

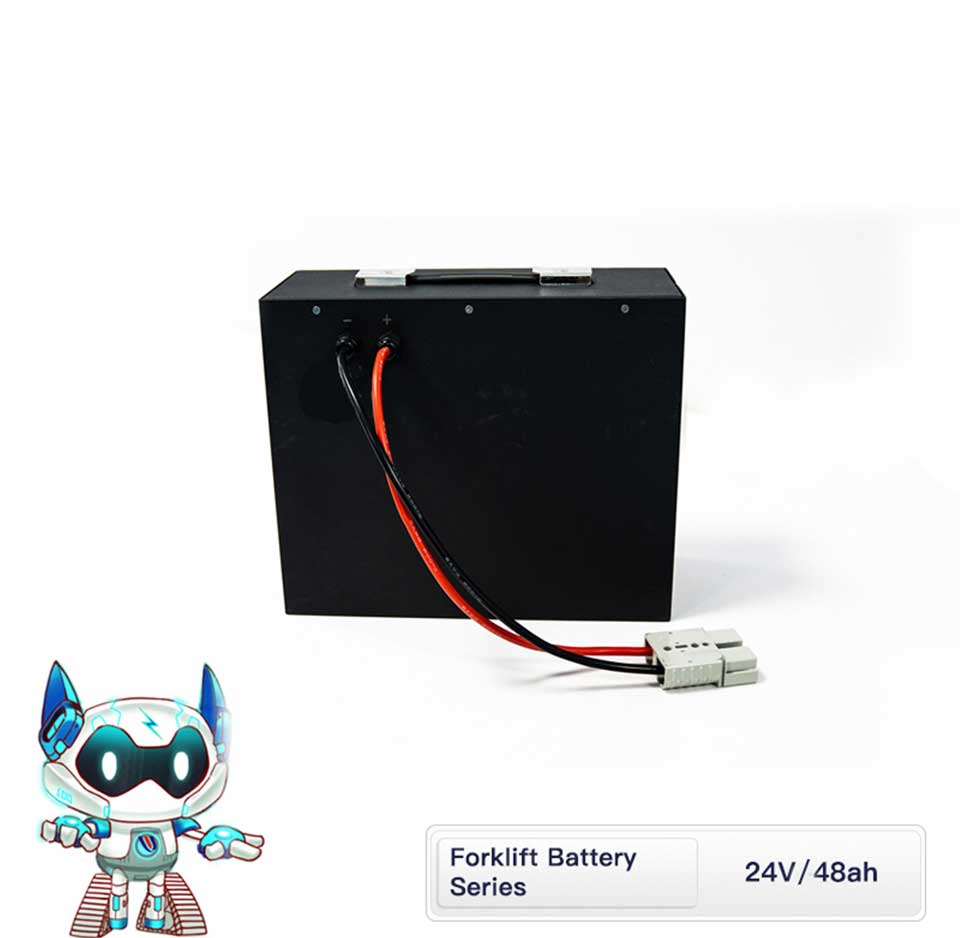

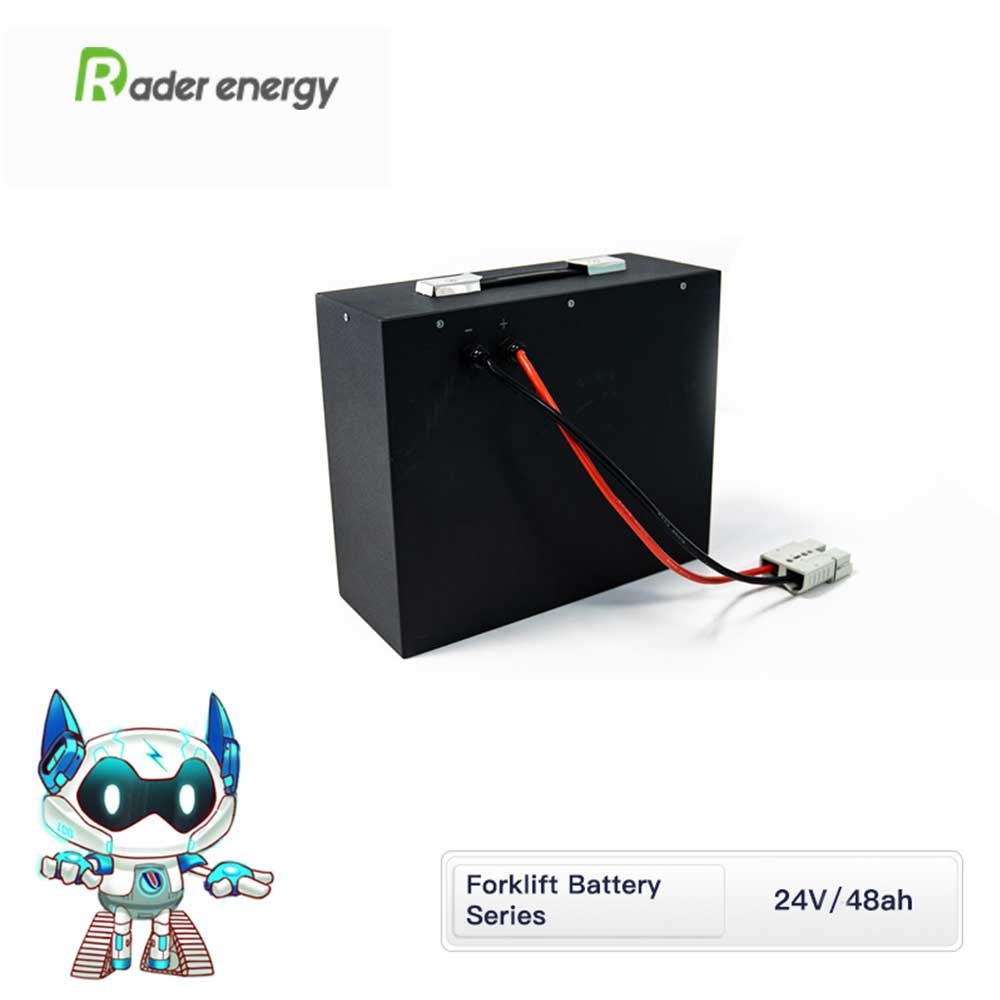

Product:Lithium Battery Pack and its PCM
Model: RD-24-48-PA
Type: LiFePO4 48Ah/24V 8P8S
Inner Cells: 32700-3.2V6Ah
2. Specification
3.1General
No | Item | Specifications | Remark |
1 | Nominal Capacity | 48Ah±5% | 0.2C5A discharge at 25℃ |
2 | Nominal Voltage | 24V | OCV |
3 | Charge Current | Standard:9.6A;Max:24A | Working temperature:0~45℃ |
4 | Charge cut-off Voltage | 29.2V | CC/CV |
5 | Discharge Current | Standard:24A ;Max:48A | Working temperature:-20~60℃ |
6 | Discharge cut-off Voltage | 20V | Not including cycle life,-10℃discharge |
7 | Pack Voltage | 26.62V~26.7V | Shipment status |
8 | Pack Impedance | ≤ 50mΩ | 50% SOC at 25℃ |
9 | Weight | Approx: 12.5 kg | ABS Case |
10 | Dimension | 230*113*293 (Not included Terminal) | Approx |
3.2 General Performance
Standard charge:
Charge battery pack with specific charger, 9.5A constant Current/constant voltage to 29.2V.
Environment temperature:23±2℃
Relative Humidity:65±20%RH
Pressure:86kPa~106kPa
