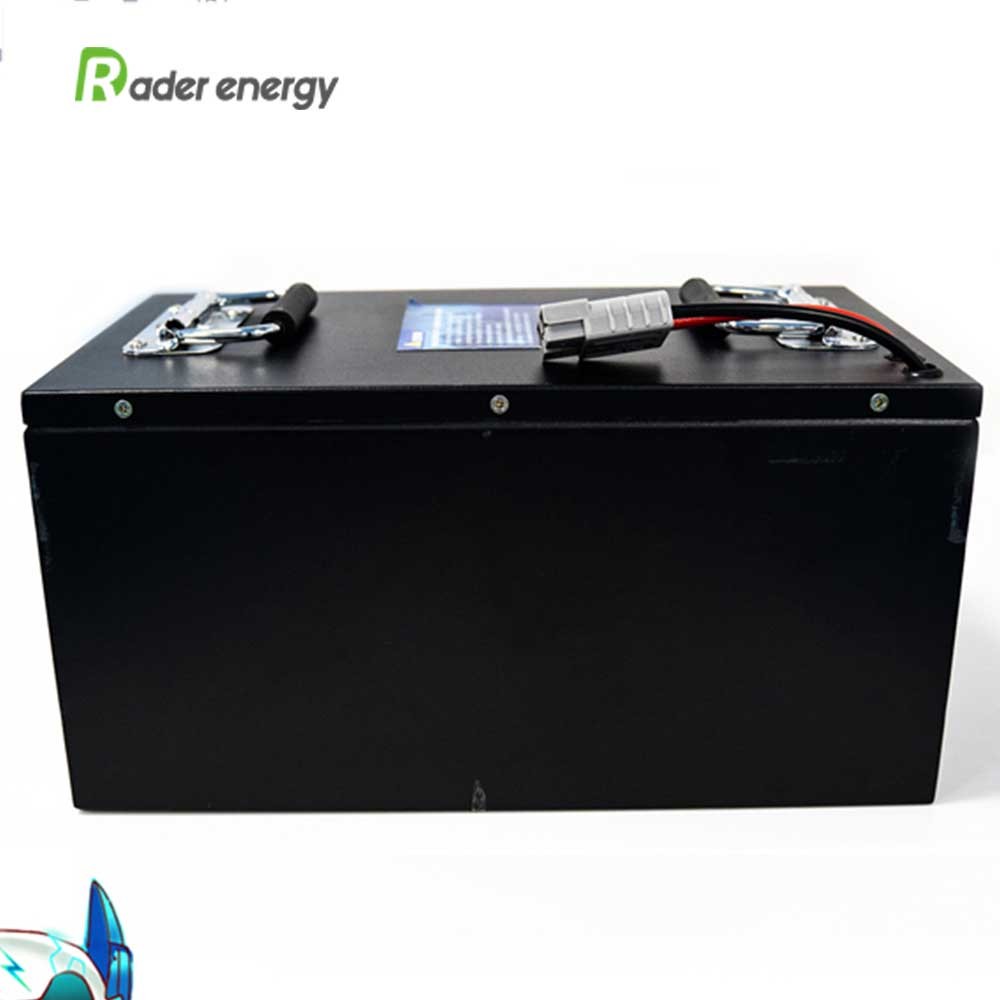

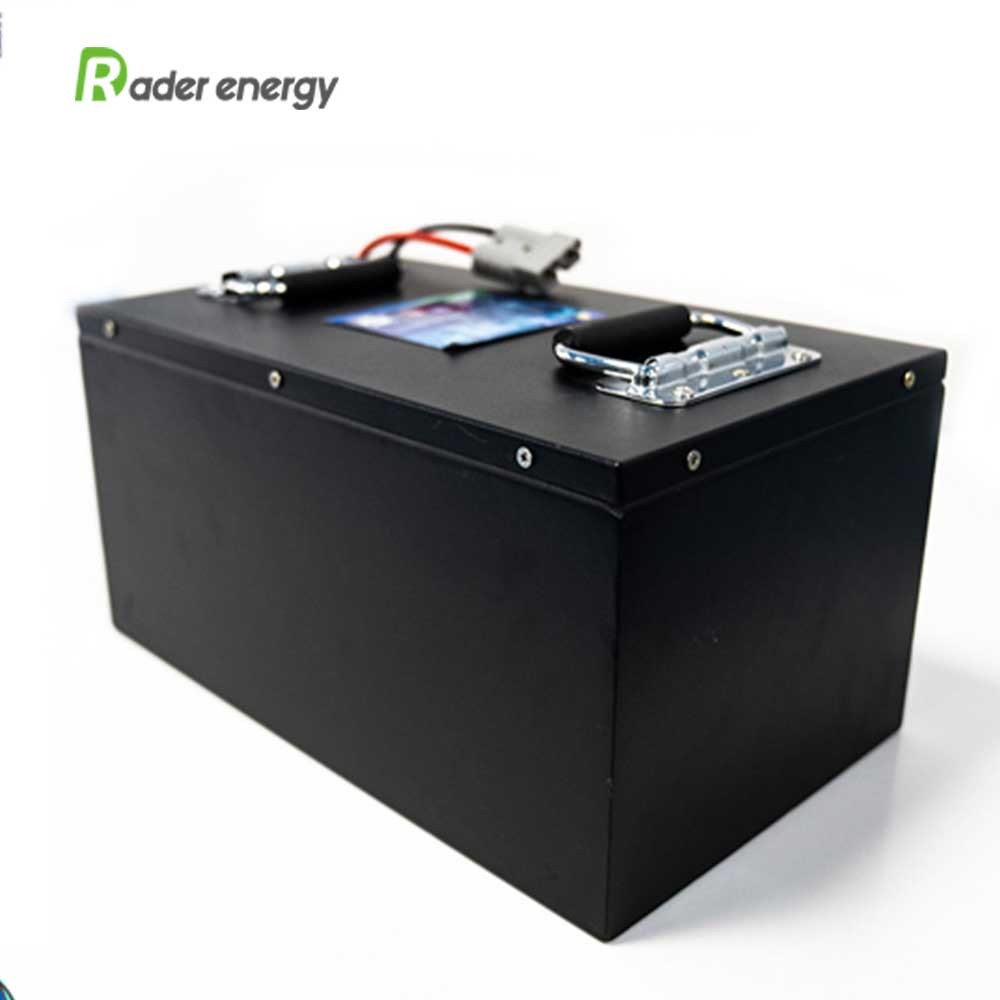

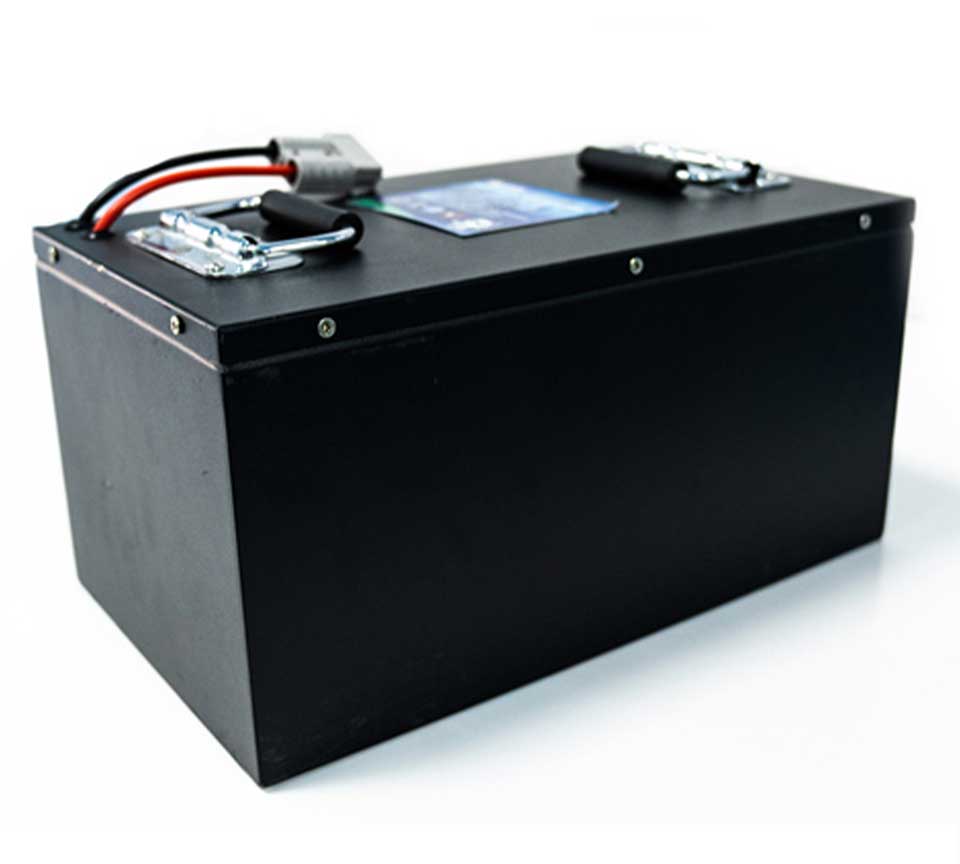

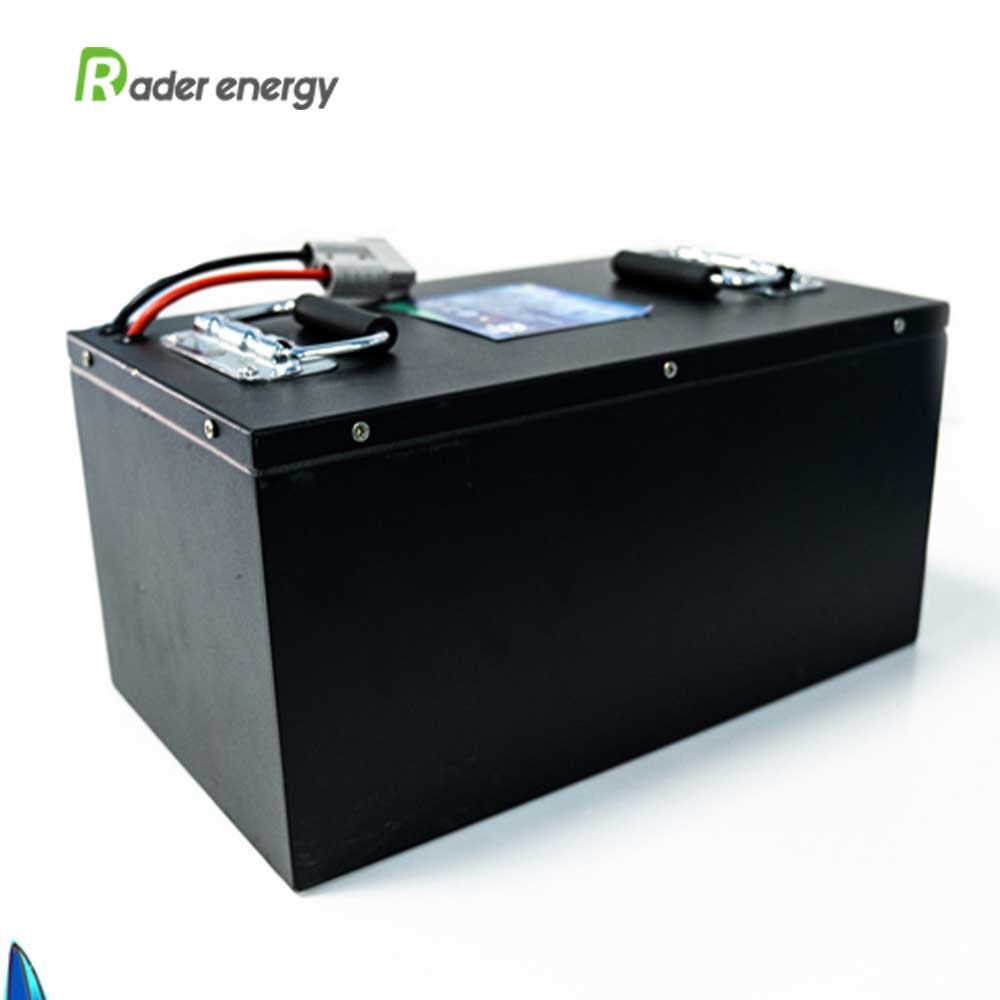

72V Green energy systems UPS systems Telecom installations LiFePO4 30Ah Electric Scooter Power Battery

Brand: Rader
Product origin: china
Delivery time: within 20 days
Supply capacity: 50 thousand per month

It has widely used in such fields as lighting, electric bus, electric car, solar energy, power generatior, wind power generator,  mine, tunnel, electric forklift, club car, sightseeing car, electric cycle and computer ups power etc, which in the leading position in the industry.

Product Description:

Model:RD-72-30-PA


Product Features

1. Green energy systems (solar, wind, hydro, etc)
2. Solar power stations
3. UPS systems
4. Electricity power supply systems (EPS)
5. Telecom installations
6. Boats or buoys
7. Signal station
8. Survey and Mapping system9/Emergency lighting
10. Traffic lights

11. Street lightening


Product Description




ElectricalCharacteristics

Technology

Lifepo4

Nominal Voltage

72V

Nominal Capacity

30Ah±5%@0.2C

Energy

2.16KWh

Cycle Life

100% Depth of Discharge ~1500 cycles

Internal Resistance

70mΩ





Charge

Charge mode

CC&CV(0.2C Constant current &87.6V

Constant voltage@0.02C)

Max. Charge Voltage

87.6V

Standard Charge Current

6A

Max.Charge Current

15A







Discharge

Discharge Cut-off Voltage

60V

Standard Discharge Current

15A

Max.Continuous

Discharge Current

30A



OperatingCondition

Storage Temperature

0to45(32to113)

Humidity

60±25%

Charge Temperature

0to 45(32to113)

DischargeTemperature

-20to 45(32to113)





Structure

Water Dust Resistance

IP52

Teminal

SB50

Carrying

SB50

Case and Cover

Iron Box

DimensionL*W*H)

365*230*180mm

Weight

Approx17.5Kg
