time shifting energy storage battery manufacturer Raderenergy from china

time shifting energy storage battery sourcing manufacturer Raderenergy from china

Summarize

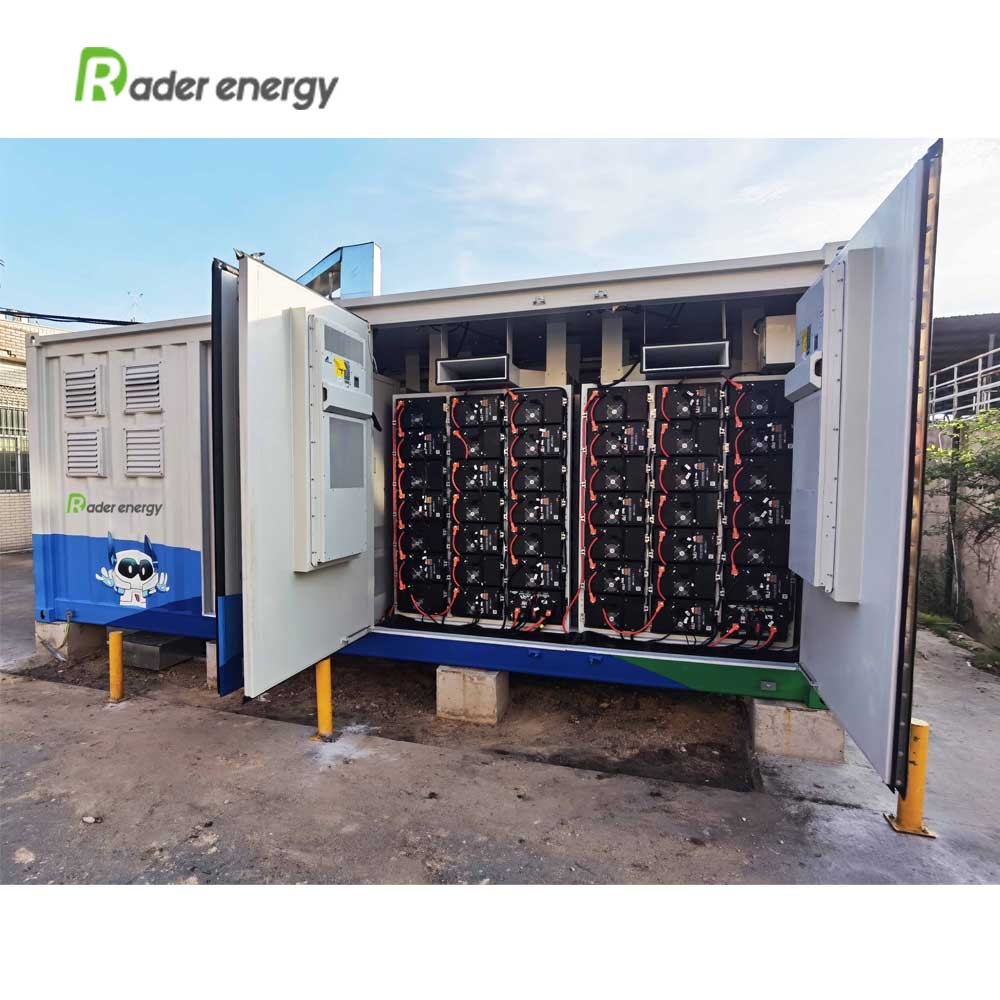

The time shifting energy storage battery system consists of battery clusters, bidirectional power conversion system (PCS), battery management system (BMS), energy management system (EMS), fire protection system, lighting system, dynamic loop control system, access control system, isolation transformer (optional) and so on.Multiple monitoring of system status and hierarchical linkage constitute a comprehensive protection system integrating electrical safety and functional safety. Container system, standardized and pre-fabricated design, reduce customization time and construction costs, and reduce safety hazards caused by local installation differences and management risks. It meets the application for regional advances in batteries for medium and large scale energy storage and requirements of Power grid in peak regulation, frequency regulation, voltage regulation, emergency response, new energy consumption, etc., and ensures the normal operation of the power system.

time shifting energy storage battery system Components

Lithium Battery Cluster

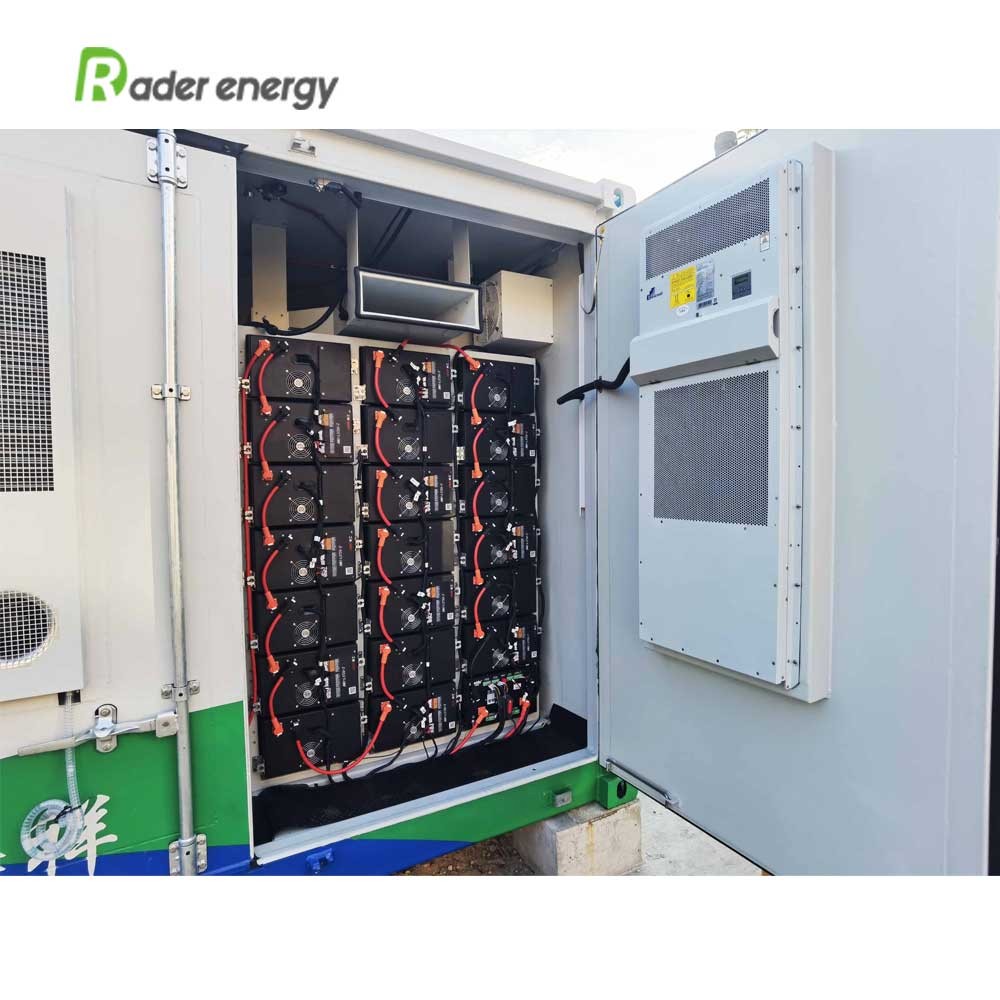

The main components of time shifting energy storage battery system consist of a battery module formed by safe, high-efficiency, long-life lithium iron phosphate cells connected in series, and a battery cluster formed by multiple modules connected in series.

Battery Management System

The core component of the lithium battery energy storage system effectivelv protects the battery from over-charging, over-discharging, over-current, etc., and at the same time manages the equalization of the battery cells to guarantee the safe, reliable and efficient operation of the whole system.

Monitoring System

lithium battery energy storage system operation data monitoring, operation strategy management, historical data logging, system status logging, etc.

PCS Power Conversion System

Bidirectional AC/DC converter can realize the bidirectional conversion of DC to AC and AC to DC, which can either convert AC to DC for charging the battery, or convert DC to AC to supply power to the load or feed back to the grid.

Air Conditioning System

The battery compartment integrates 1200W industrial air conditioner to meet the smooth operation of the svstem in different environments and prolong the service life of the system.

1P54

IP54 design for the whole lithium battery energy storage system.

time shifting energy storage battery system Parameters

Photovoltaic parameters

Maximum access power of photovoltaic : 400KW

Rated Current : 606A

Rated Input Voltage : 3W+N+PE , 380/400W

Rated Frequency : 50/60

AC Parameters (Grid-Connected)

Rated Output Power (kw) : 500

Maximum Output Power (k) : 550

Rated grid voltage (V) : 3W+N+PE , 380 / 400V

Grid Voltage Range : -15%~+10%

Rated Grid Frequency (Hz) : 50 / 60

Grid Frequency Range (Hz) : ± 2

Output Current Harmonics : ≤ 3% (Rated Power)

DC Component : < 0.5% In

Power Factor : -0.9 ~ +0.9

Overload Capacity : 105% ] : Running Continuously, (105%~120% ]: 10 mins, 120%) : Stop Running

Which is most application advances in batteries for medium and large scale energy storage

AC Parameters (Off-Grid)

Rated Output Power (kw) : 500

Maximum Output Power (kw) : 550

Rated Output Voltage (V) : 3W+N+PE, 380 / 400V

Output Voltage Harmonics : 3% (Linear Full Load)

Rated Frequency (Hz) : 50 / 60

Overload Capacity : 105% ] : Running Continuously, (105%~120% ]: 10 mins, 120% ) : Stop Running

energy shifting battery Parameters

Cell Type : Lithium Iron Phosphate

Single Battery Cabinet Power : 215.04

Number Of Battery Cabinets : 5

Battery System Power (kwh) : 1075.2

Rated operating hours (h) : 2 (Changeable number of battery modules to meet time options)

Battery Life : 25°C 0.5C / 0.5C 100%DOD SOH80% ≥ 6000times

Efficiency

Maximum Efficiency : 93%

Safeguard

AC Switch : yes

PV Electrically Operated AC Switches : yes

Grid Monitoring : yes

Surge Protection : yes

Basic Parameters

Sizes (W*D*H) (mm) : 6058 * 2438 * 2591

Weights (kg) : 16000

Isolation Method : Built-In Isolation Transformer

Grid And Off-Grid shifter : STS

Protection Class : Outdoor IP54

Operating Temperature Range : -20~55°C (> 45°C Derate)

Relative Humidity (Non-Condensing) : 0~95%

Temperature Control Method : Refrigeration

Maximum Working Altitude (m) : 4000 (> 2000 Derate)

Display : Touchscreens

Communication Interface : R$485, CAN. LAN

Communication Protocols : Modbus-RTU. Modbus-TCP. CAN2.OB

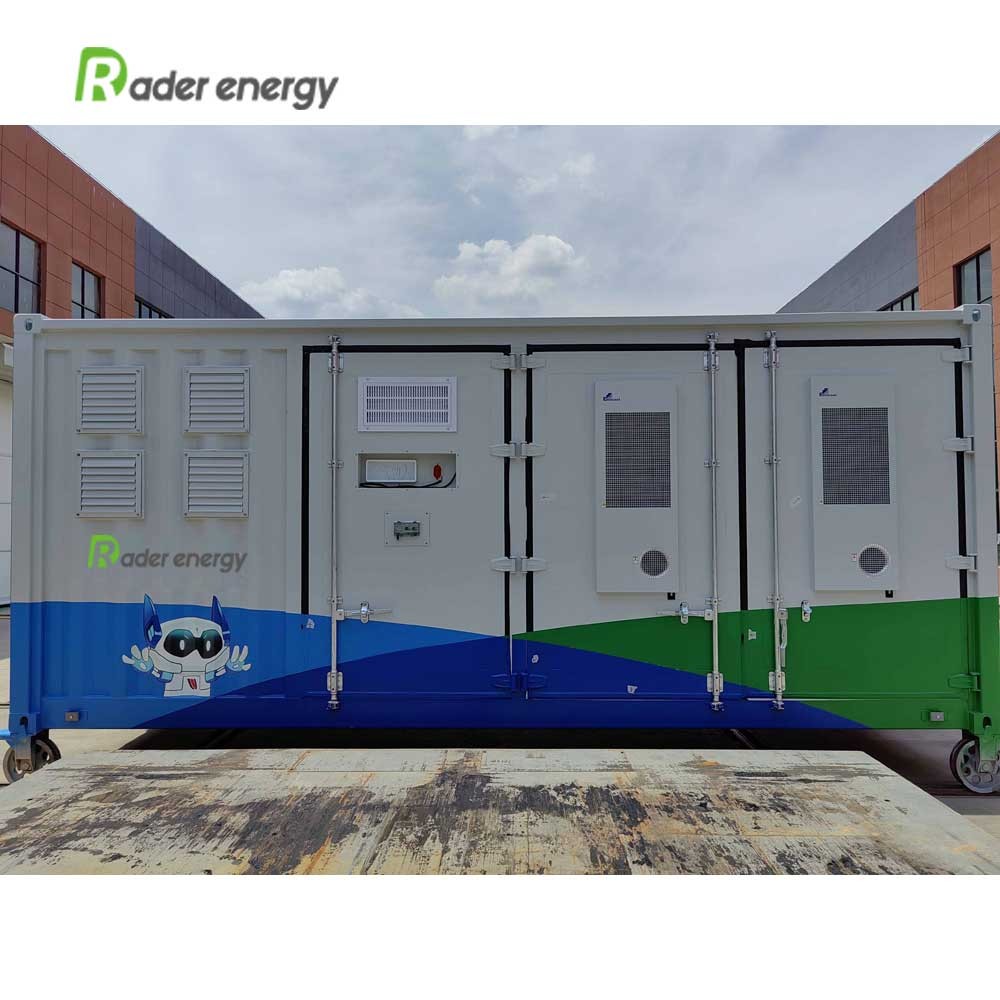

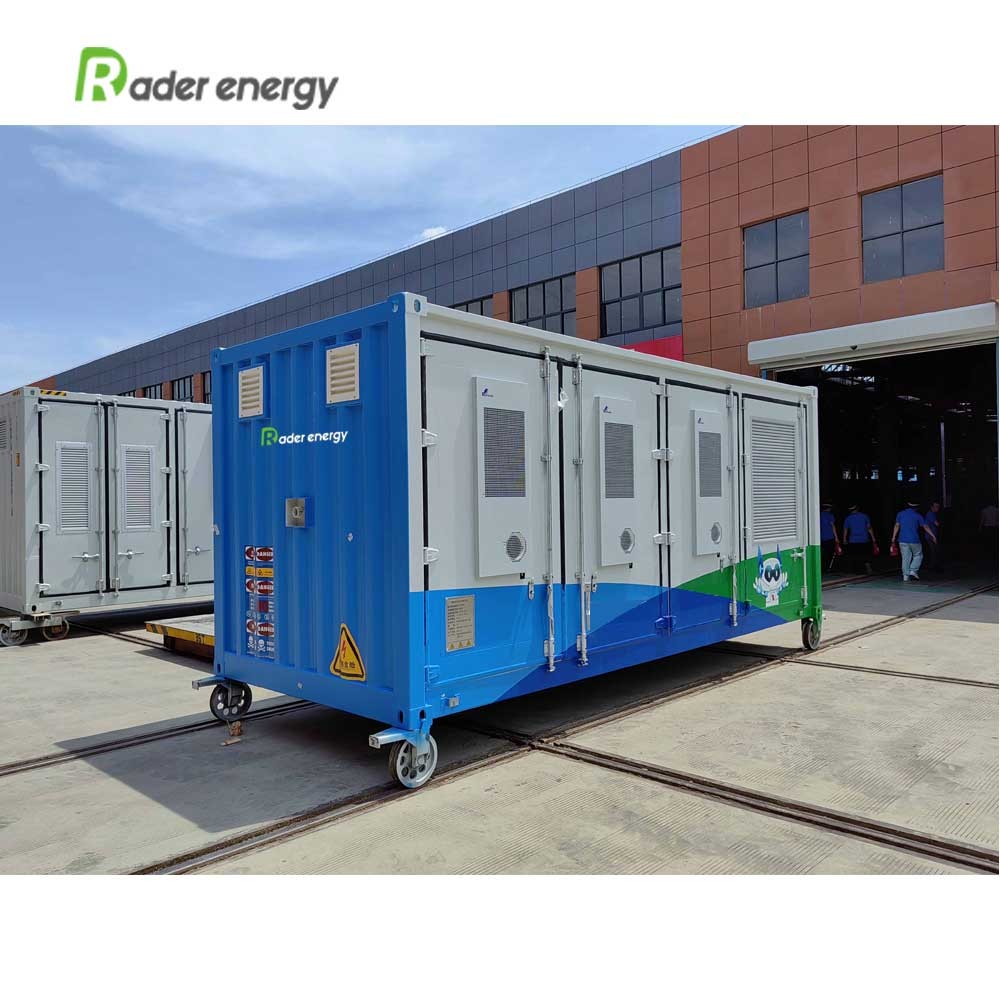

containerized energy storage system Features

Safe And Reliable

• Preferred Lifepo4 battery energy storage systems Routing, Rigorous Safety Testing

• Hierarchical Temperature Control Strategy From Core To Container, Industrial Grade Temperature Control System.

• All-round Electrical Protection: High And Low Voltage Separation, Insulation Testing, Grounding Protection, Lightning Protection Design.

• 7mm Thermal Isolation Between Cores, Insulated Holder Design

• Module Built-In Aerosol Fire Protection Measures, Container Intelligent Warehouse Level Fire Protection, Hierarchical Linkage, Multi-Layer Protection

• Battery packs connect with PCS in series, Eliminating Loop Current And Providing Greater Safety.

Intelligent And Efficient

• Efficient, Digital, Intelligent EMS System Design

• 0.5C Charge / Discharge Rate

• Fault Prediction, Identification And Rapid Localization

Multidimensional Integration

• Easy Transportation, Installation And Maintenance

• Modularied design, easy for maintenance, Management And Capacity Expansion

FAQ

How is the early warning of the security system realized?

BMS three levels, a first level of warning, the second level of alarm power reduction, three levels of power outages; temperature, smoke, combustible gas detection, the use of propane fire extinguishing, there are remote and on-site alarms, far infrared video monitoring and recording and other ways.

How is ultra-high voltage converted to supply voltage?

Inside the enterprise, the ultra-high voltage of the utility power is converted into supply voltage by means of a substation or transformer to supply normal equipment use and energy storage setups.

Warranty issues, cycle count issues, how many cycles is a normal battery?

Warranty 5 years, the first three years free of charge, the next two years to charge the cost of accessories, travel costs; the normal cycle life of the battery in 6000

The normal cycle life of the energy shifting battery is more than 6000 times, 1 charging and 1 discharging per day can be used for more than 15 years, 2 charging and 2 discharging can be used for more than 8 years.

How do you maximize the efficiency of 2 charging and 2 discharging?

Valley-peak, flat-peak (full charge and discharge) This maximizes system utilization.

What are the configuration facilities of the storage cabinets?

It consists of battery pack, energy shifting battery management system BMS, energy storage converter PCS, energy management system EMS, fire protection system, monitoring system and other related auxiliary systems.

system, monitoring system and other related auxiliary systems, small size, large storage capacity, high temperature and low temperature resistance.

What are the benefits of battery energy storage solutions cabinets?

(1) Shaving peaks and filling valleys, saving more than 60% of electricity costs by utilizing the peak and valley price difference.

(2) Not troubled by power outages, pulling the power limit, not affecting normal production.

(3) State subsidies, equipment credit for corporate income tax.

(4) Emergency disaster preparedness standby.

(5) Reduce carbon emissions, grid-connected operation,Which becoming most application advances in batteries for medium and large scale energy storage, all benefits, data open and transparent, national grid monitoring and accounting.bess solar power generation combination becoming more and more popular, It is an efficient and sustainable energy solution..

(6) lifepo4 battery energy storage systems will not trigger its own thermal runaway, no explosion, no fire.

How big of a footprint do you really need for an energy storage locker, how big is 20 feet how big is 40 feet?

(1) The size of 20-foot container is: 6.058*2.438*2591 meters; 40-foot container size is:

12.192*2.438*2591 meters (1.5-2 meters position is reserved around the box for maintenance).

(2) 100kW-215kwh distributed energy storage cabinet indoor installation footprint in 3m weight of about 2.5T, three-sided side-by-side design covers a small area. The cabinet is designed according to the requirements of outdoor cabinet, and can be placed in the open space outside the power distribution room.It can be Upgrade to large scale battery energy storage, depend upon your project, our team of Ph.D. experts can tailor a customized solution specifically suited to your project. To proceed, you can fill out our form and submit it to us. We will promptly evaluate your requirements and provide you with a detailed proposal.

20240628221634_66882.xlsx

Annual maintenance fee for the storage locker?

Roughly, for every 1 MWh, the maintenance fee is about 10,000 yuan, the maintenance fee is less in the first 3 to 5 years, and the maintenance fee after five years is about 0.5-2% of the cost of the whole set of lifepo4 battery energy storage systems; (investing in a 1 WKH energy storage cabinet, the investment cost is about 1,450,000 yuan, and the maintenance fee after five years is about 7,000 yuan to 28,000 yuan, depending on the degree of aging on the site)
