The containerized energy storage system consists of battery clusters, bidirectional power conversion system (PCS), battery management system (BMS), energy management system (EMS), fire protection system, lighting system, dynamic loop control system, access control system, isolation transformer (optional) and so on.Multiple monitoring of system status and hierarchical linkage constitute a comprehensive protection system integrating electrical safety and functional safety. Container system, standardized and pre-fabricated design, reduce customization time and construction costs, and reduce safety hazards caused by local installation differences and management risks. It meets the application requirements of regional power grid in peak regulation, frequency regulation, voltage regulation, emergency response, new energy consumption, etc., and ensures the normal operation or stationary electrical energy of the power system.

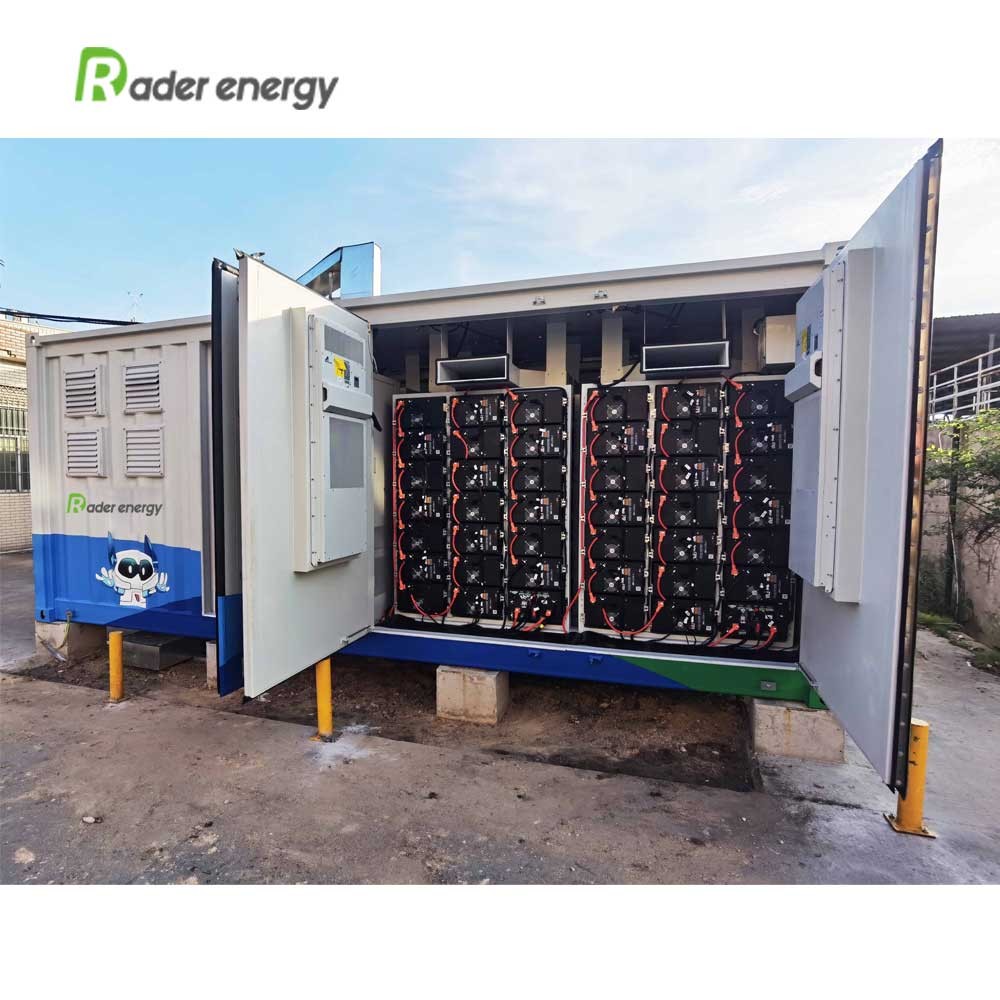

The main components of containerized energy storage system consist of a battery module formed by safe, high-efficiency, long-life lithium iron phosphate cells connected in series, and a battery cluster formed by multiple modules connected in series.
The core component of the svstem effectivelv protects the battery from over-charging, over-discharging, over-current, etc., and at the same time manages the equalization of the battery cells to guarantee the safe, reliable and efficient operation of the whole system.
System operation data monitoring, operation strategy management, historical data logging, system status logging, etc.
Bidirectional AC/DC converter can realize the bidirectional conversion of DC to AC and AC to DC, which can either convert AC to DC for charging the battery, or convert DC to AC to supply power to the load or feed back to the grid.

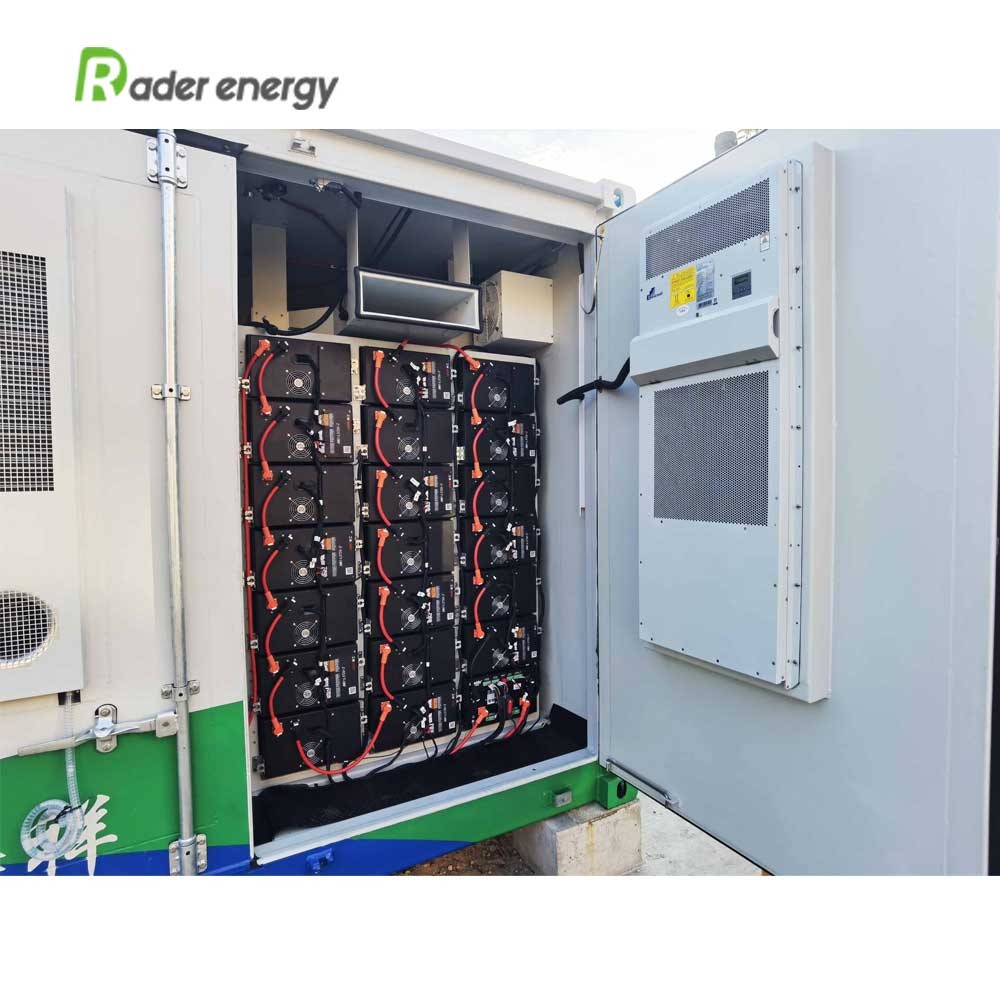

The battery compartment integrates 1200W industrial air conditioner to meet the smooth operation of the svstem in different environments and prolong the service life of the system.
IP54 design for the whole system.
Maximum access power of photovoltaic : 400KW
Rated Current : 606A
Rated Input Voltage : 3W+N+PE , 380/400W
Rated Frequency : 50/60
Rated Output Power (kw) : 500
Maximum Output Power (k) : 550
Rated grid voltage (V) : 3W+N+PE , 380 / 400V
Grid Voltage Range : -15%~+10%
Rated Grid Frequency (Hz) : 50 / 60
Grid Frequency Range (Hz) : ± 2
Output Current Harmonics : ≤ 3% (Rated Power)
DC Component : < 0.5% In
Power Factor : -0.9 ~ +0.9
Overload Capacity : 105% ] : Running Continuously, (105%~120% ]: 10 mins, 120%) : Stop Running
Rated Output Power (kw) : 500
Maximum Output Power (kw) : 550
Rated Output Voltage (V) : 3W+N+PE, 380 / 400V
Output Voltage Harmonics : 3% (Linear Full Load)
Rated Frequency (Hz) : 50 / 60
Overload Capacity : 105% ] : Running Continuously, (105%~120% ]: 10 mins, 120% ) : Stop Running
Cell Type : Lithium Iron Phosphate
Single Battery Cabinet Power : 215.04
Number Of Battery Cabinets : 5
Battery System Power (kwh) : 1075.2
Rated operating hours (h) : 2 (Changeable number of battery modules to meet time options)
Battery Life : 25°C 0.5C / 0.5C 100%DOD SOH80% ≥ 6000times
Maximum Efficiency : 93%
AC Switch : yes
PV Electrically Operated AC Switches : yes
Grid Monitoring : yes
Surge Protection : yes

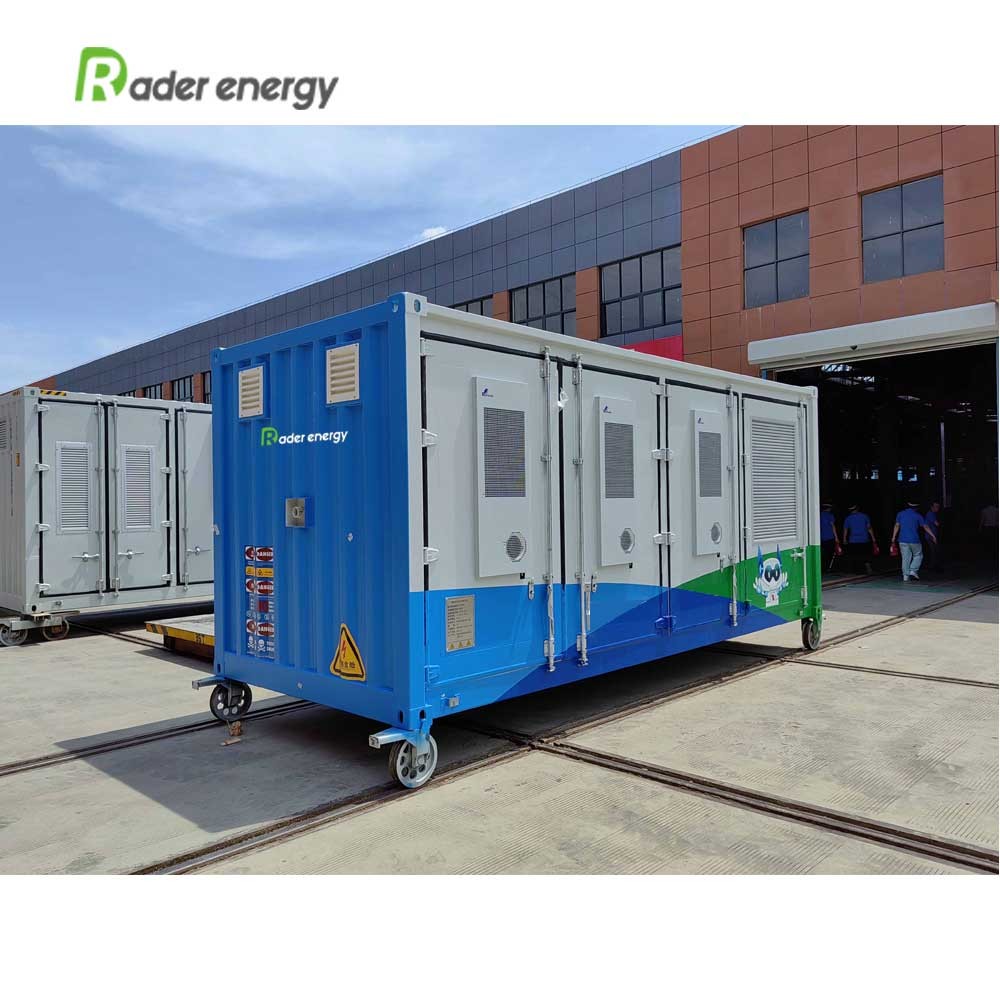

Sizes (W*D*H) (mm) : 6058 * 2438 * 2591
Weights (kg) : 16000
Isolation Method : Built-In Isolation Transformer
Grid And Off-Grid shifter : STS
Protection Class : Outdoor IP54
Operating Temperature Range : -20~55°C (> 45°C Derate)
Relative Humidity (Non-Condensing) : 0~95%
Temperature Control Method : Refrigeration
Maximum Working Altitude (m) : 4000 (> 2000 Derate)
Display : Touchscreens
Communication Interface : R$485, CAN. LAN
Communication Protocols : Modbus-RTU. Modbus-TCP. CAN2.OB
• Preferred LFP Routing, Rigorous Safety Testing
• Hierarchical Temperature Control Strategy From Core To Container, Industrial Grade Temperature Control System.
• All-round Electrical Protection: High And Low Voltage Separation, Insulation Testing, Grounding Protection, Lightning Protection Design.
• 7mm Thermal Isolation Between Cores, Insulated Holder Design
• Module Built-In Aerosol Fire Protection Measures, Container Intelligent Warehouse Level Fire Protection, Hierarchical Linkage, Multi-Layer Protection
• Battery packs connect with PCS in series, Eliminating Loop Current And Providing Greater Safety.
• Efficient, Digital, Intelligent EMS System Design
• 0.5C Charge / Discharge Rate
• Fault Prediction, Identification And Rapid Localization
• Easy Transportation, Installation And Maintenance
• Modularied design, easy for maintenance, Management And Capacity Expansion（Easily expand to large scale battery energy storage systems）
FAQ
BMS three levels, a first level of warning, the second level of alarm power reduction, three levels of power outages; temperature, smoke, combustible gas detection, the use of propane fire extinguishing, there are remote and on-site alarms, far infrared video monitoring and recording and other ways.
Inside the enterprise, the ultra-high voltage of the utility power is converted into supply voltage by means of a substation or transformer to supply normal equipment use and energy storage setups.
Warranty 5 years, the first three years free of charge, the next two years to charge the cost of accessories, travel costs; the normal cycle life of the battery in 6000
The normal cycle life of the battery is more than 6000 times, 1 charging and 1 discharging per day can be used for more than 15 years, 2 charging and 2 discharging can be used for more than 8 years.
Valley-peak, flat-peak (full charge and discharge) This maximizes system utilization.
It consists of battery pack, battery management system BMS, energy storage converter PCS, energy management system EMS, fire protection system, monitoring system and other related auxiliary systems.
system, monitoring system and other related auxiliary systems, small size, large storage capacity, high temperature and low temperature resistance.
(1) Shaving peaks and filling valleys, saving more than 60% of electricity costs by utilizing the peak and valley price difference.
(2) Not troubled by power outages, pulling the power limit, not affecting normal production.
(3) State subsidies, equipment credit for corporate income tax.
(4) Emergency disaster preparedness standby.
(5) Reduce carbon emissions, grid-connected operation, all benefits, data open and transparent, national grid monitoring and accounting.
(6) Lithium iron phosphate battery will not trigger its own thermal runaway, no explosion, no fire.
(1) The size of 20-foot container is: 6.058*2.438*2591 meters; 40-foot container size is:
12.192*2.438*2591 meters (1.5-2 meters position is reserved around the box for maintenance).
(2) 100kW-215kwh distributed energy storage cabinet indoor installation footprint in 3m weight of about 2.5T, three-sided side-by-side design covers a small area. The cabinet is designed according to the requirements of outdoor cabinet, and can be placed in the open space outside the power distribution room.
Roughly, for every 1 MWh, the maintenance fee is about 10,000 yuan, the maintenance fee is less in the first 3 to 5 years, and the maintenance fee after five years is about 0.5-2% of the cost of the whole set of equipment; (investing in a 1 WKH energy storage cabinet, the investment cost is about 1,450,000 yuan, and the maintenance fee after five years is about 7,000 yuan to 28,000 yuan, depending on the degree of aging on the site)
Please Fullfill Following Excel, send to us, Our Engineer will give you a solution
Container Energy Storage System is one types of electrical energy storage systems, There are also other types of chemical energy storage systems, such as lead-acid batteries, nickel-metal hydride batteries, sodium-sulfur batteries, and so on, which have their respective application fields and characteristics in power systems.
