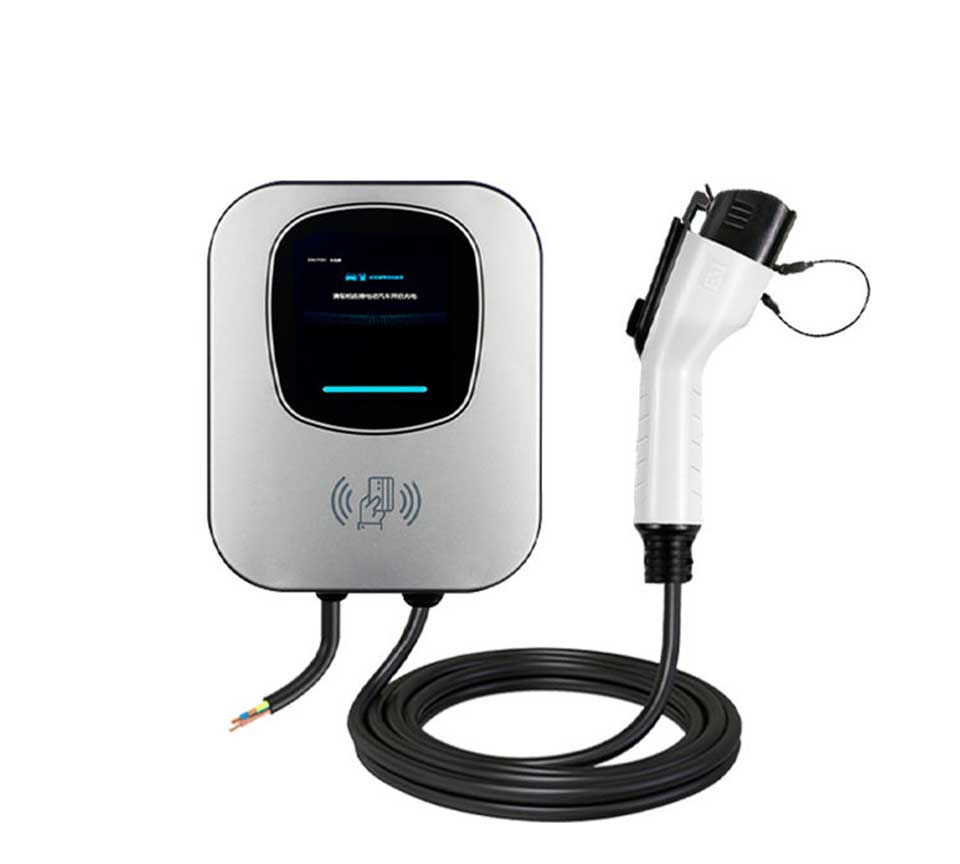

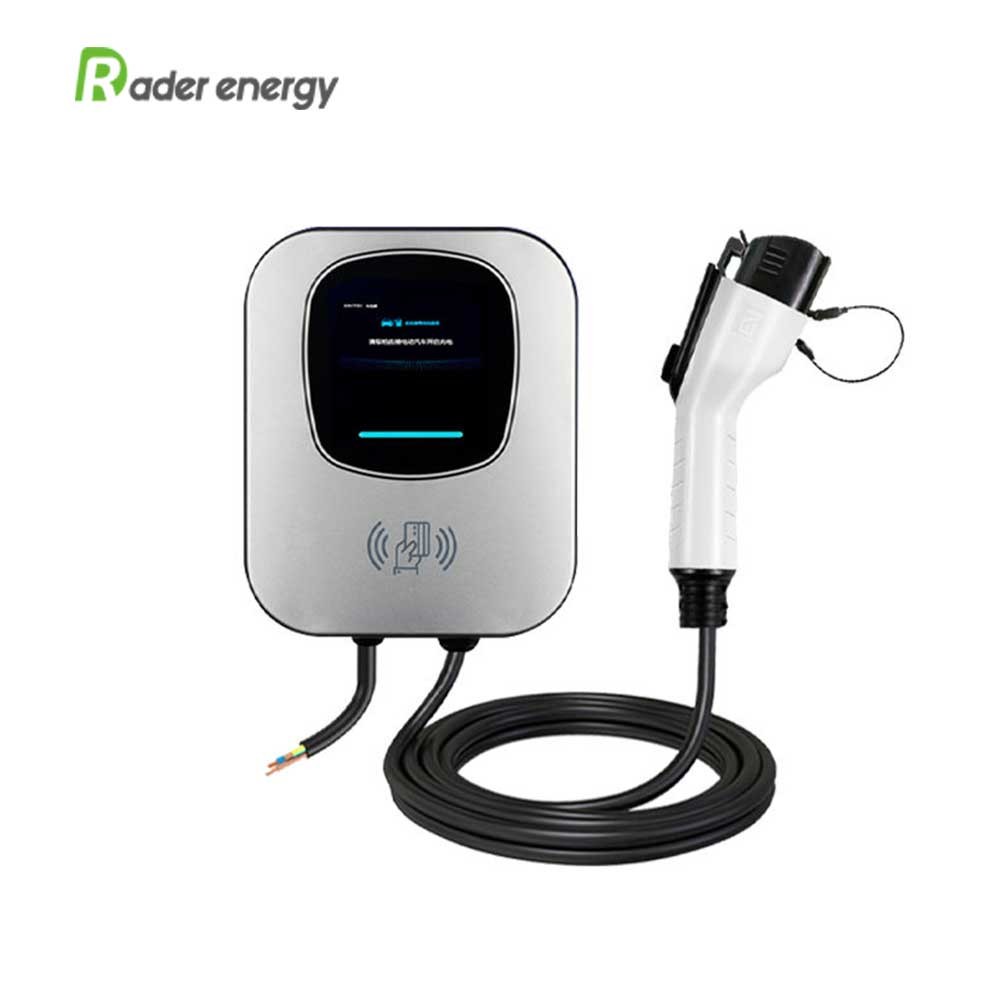

US EU Japan Standard Ev Charger Wallbox J1772 Type1 ac ev car charger station for home or commercial

✔For Europe market, we've got CE, ROHS, REACH for 7kw, 11kw, 22kw wallbox ev charger.
✔ For North America, we're getting UL certification of 7kw, 10kw wallbox for whole charger.
✔ Customize designs, logos, colors available even for small quantity and small business.
✔4.3 inch LED screen, Type B RCD leakage protection for ev chargers.
✔Manual available in different languages, English, Geman, Dutch, Italian, Spanish etc.
✔1 year warranty, 2 years and 3 years warranty(optional).
✔Each EV cha

Product Description:

Appearance
structure
Name
AC 3 2A RFID Screen C* Ev Charger
Model
RFID to Charge

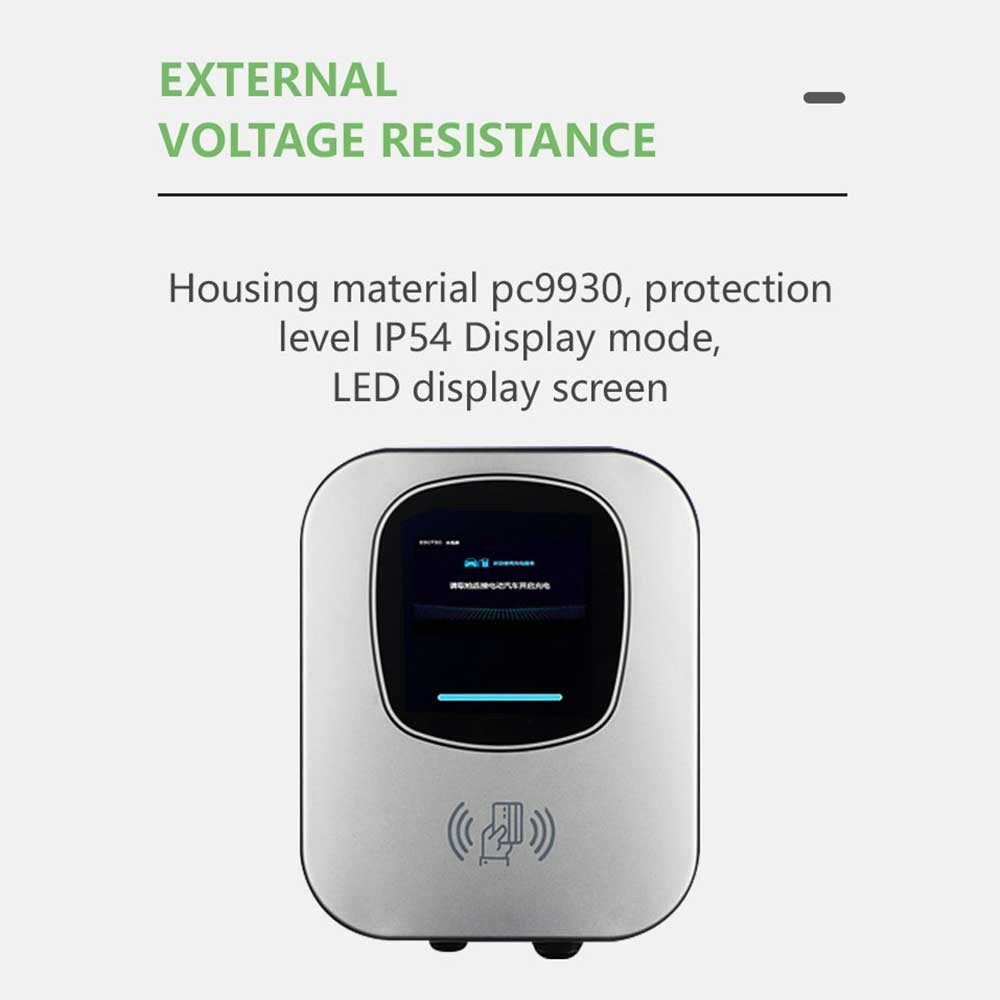

Enclosure
Charging Gun PC9330 /Control Box ABS
Size
Charging Gun 230*98*58mm/Wall Box 280*220*93mm【H*W*D】
Installation Method
Wall -Mounted/Column
Install Components
Column( Option* )
Power Direction
Input(Down) & Output(Down)
Net Weight
About 3 . 7KG
Cable Size
3 * 6mm²+0 . 7 5mm²
Cable Length
5M or Negotiation
Electrical index
Input Voltage
AC90V-265V
Input Frequency
50Hz / 60Hz
Max Power
7KW
Output Voltage
AC90V-265V
Output Current
32A
Stand by Power
3W

Environment index
Applicable scene
Indoor or Outdoor
Work Humidity
5%~95%(non- condensing)
Work Temperature
-30℃~+50℃
Work Altitude
<2000M
Protection Class

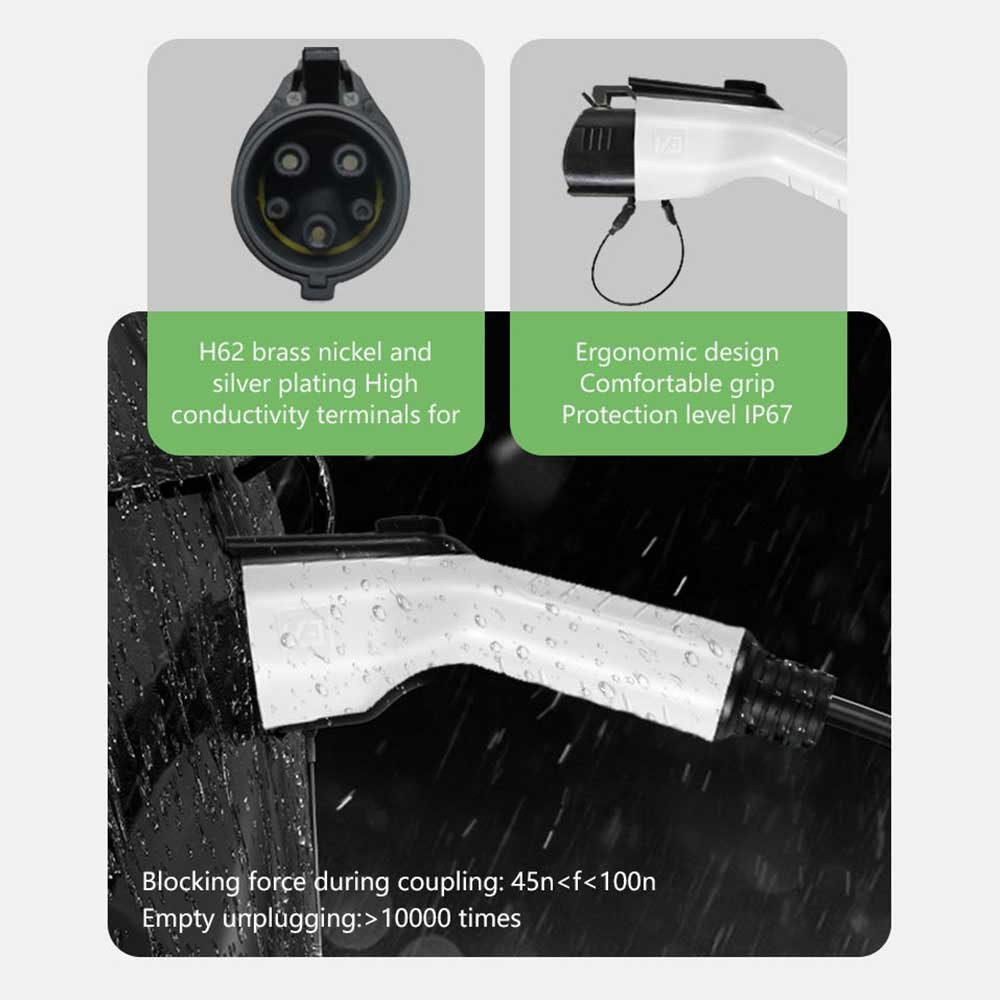

Charging Gun IP6 7 / Control Box IP5 4
Cooling Method
Natural Cooling
Standard

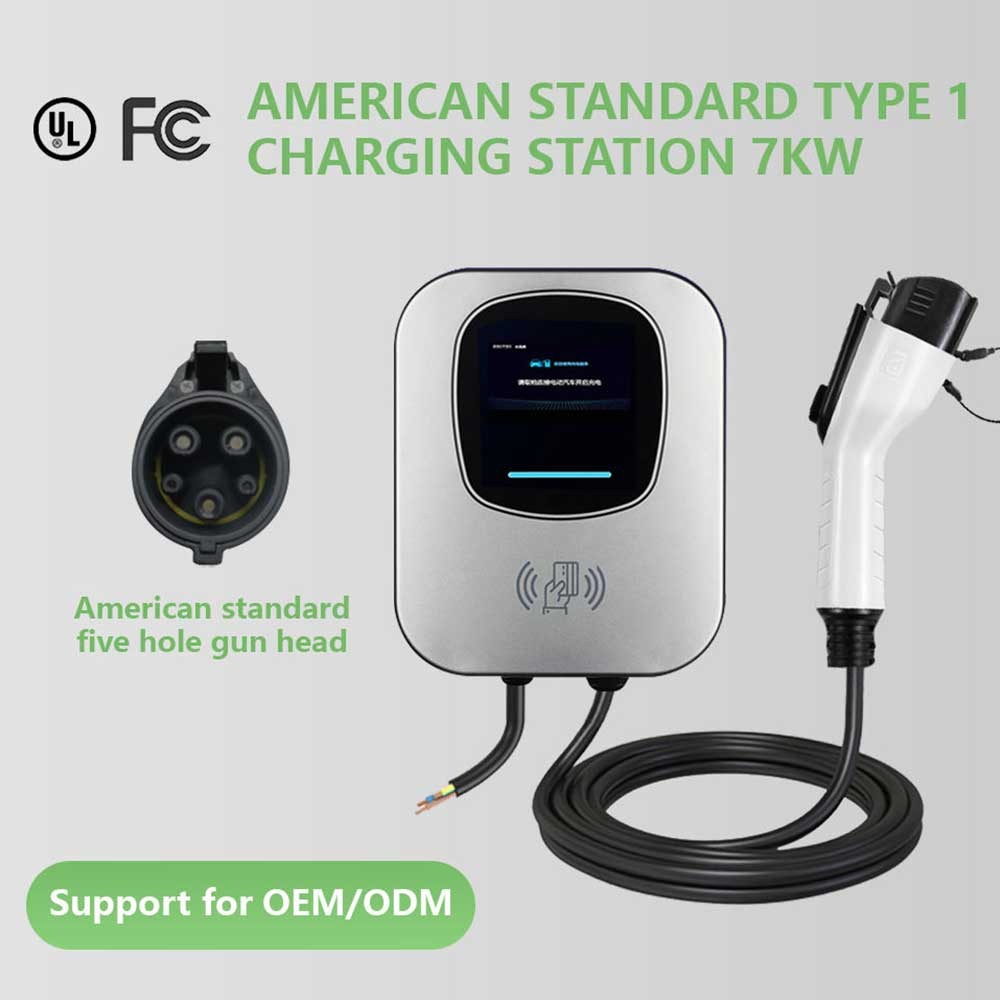

SAE J1772
Flammability rating
UL9 4 V0
Certificate
UL、FCC
Functional
design

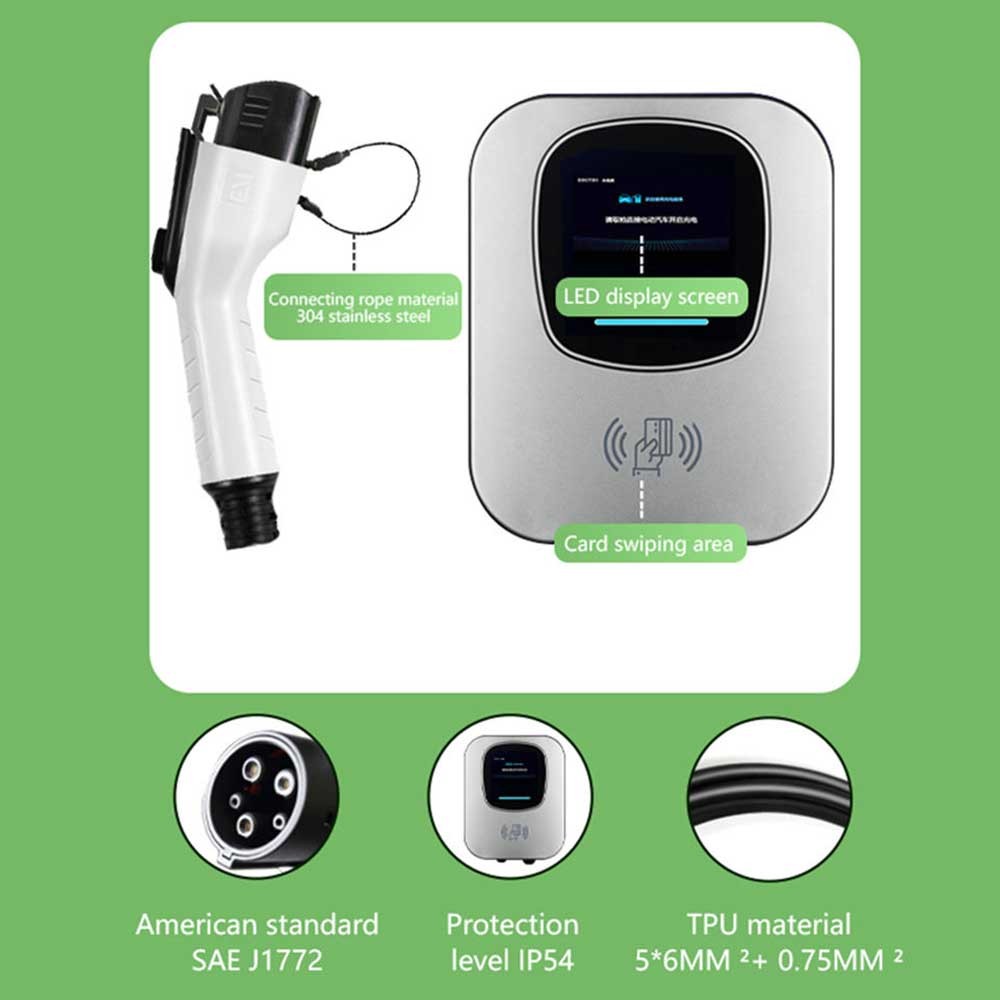

Interface
Display Screen、LED Indicator Light
Communication
/
    Safety design
Over Curren Protection、Residual Current Protection、Ground Protection、Surge
Protection、Over /Under Voltage , Frequency , Temperature Protection
Packaging
specification
L *W*H:460*400*180mm【4.2KG】
