Small Internal Resistance Long time discharge 1500 Cycles Life LiFePO4 576Wh 48V Electric Scooter Power Battery Small Internal Resistance Long time discharge 1500 Cycles Life LiFePO4 576Wh 48V Electric Scooter Power Battery Small Internal Resistance Long time discharge 1500 Cycles Life LiFePO4 576Wh 48V Electric Scooter Power Battery

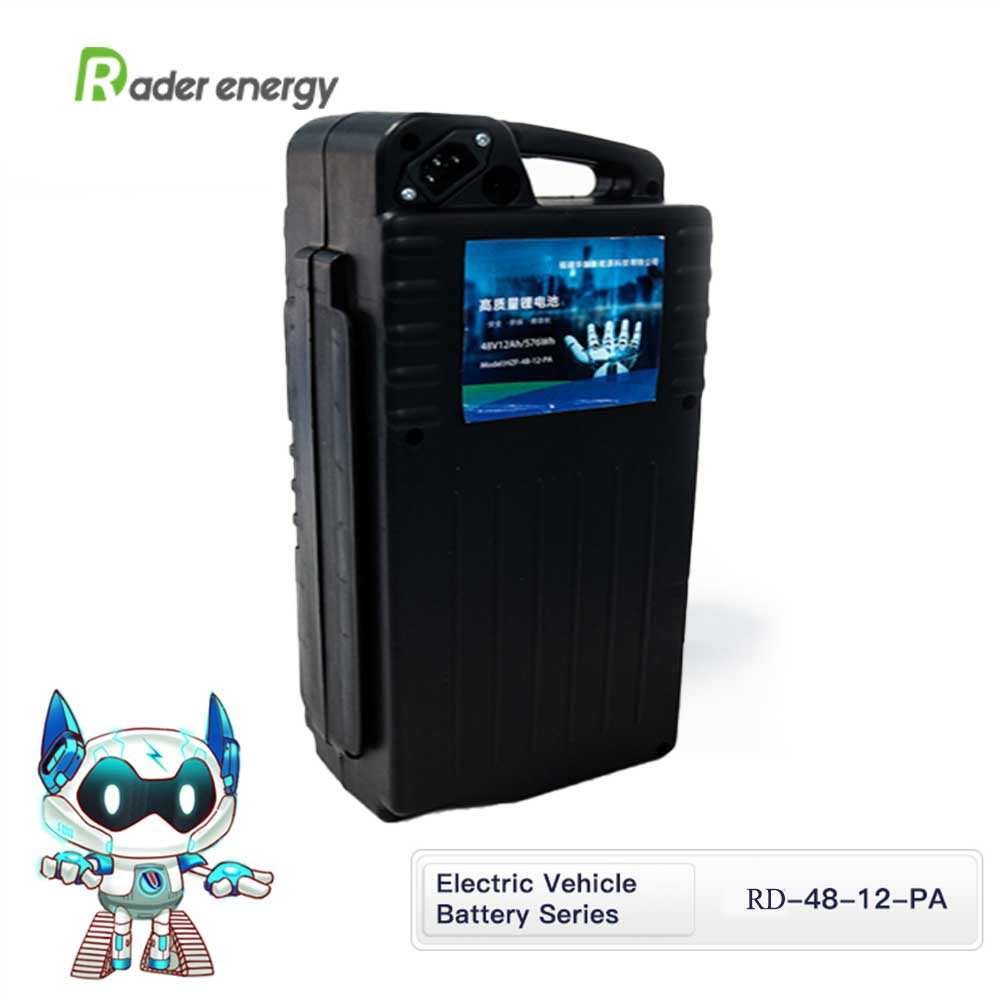

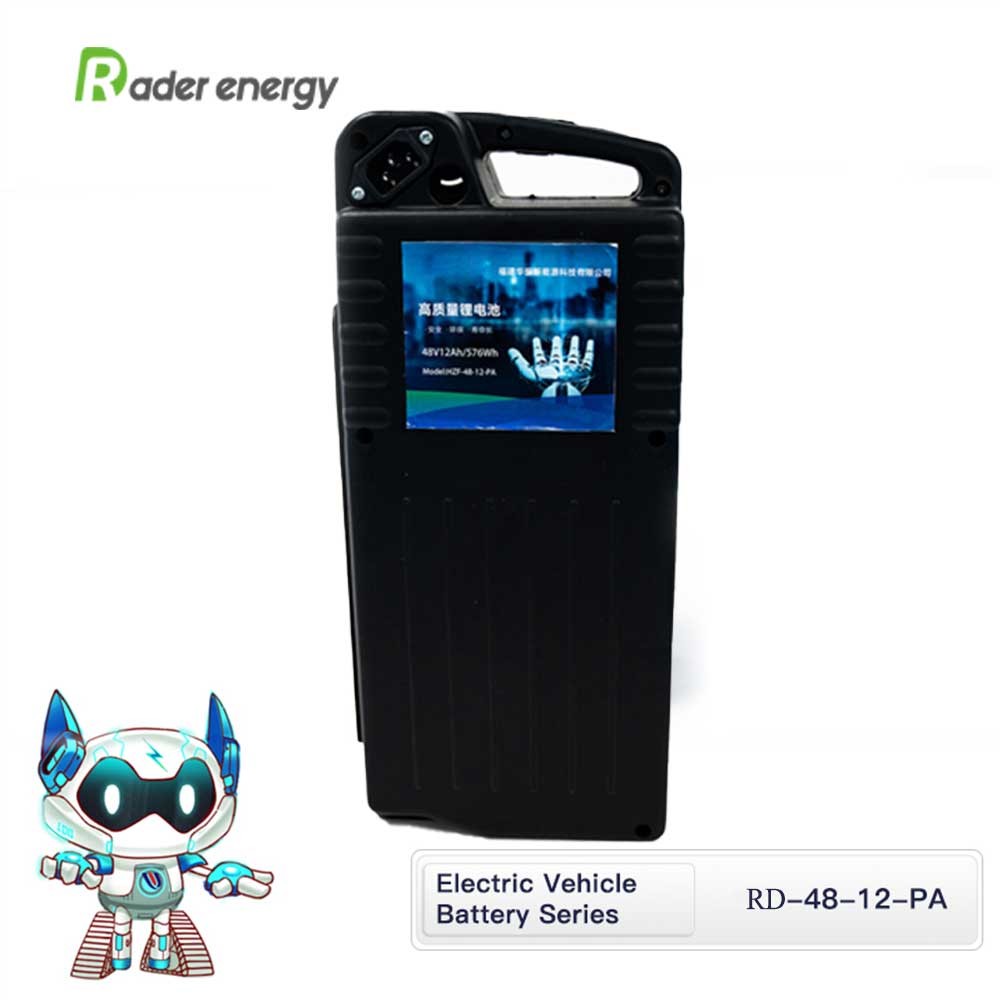

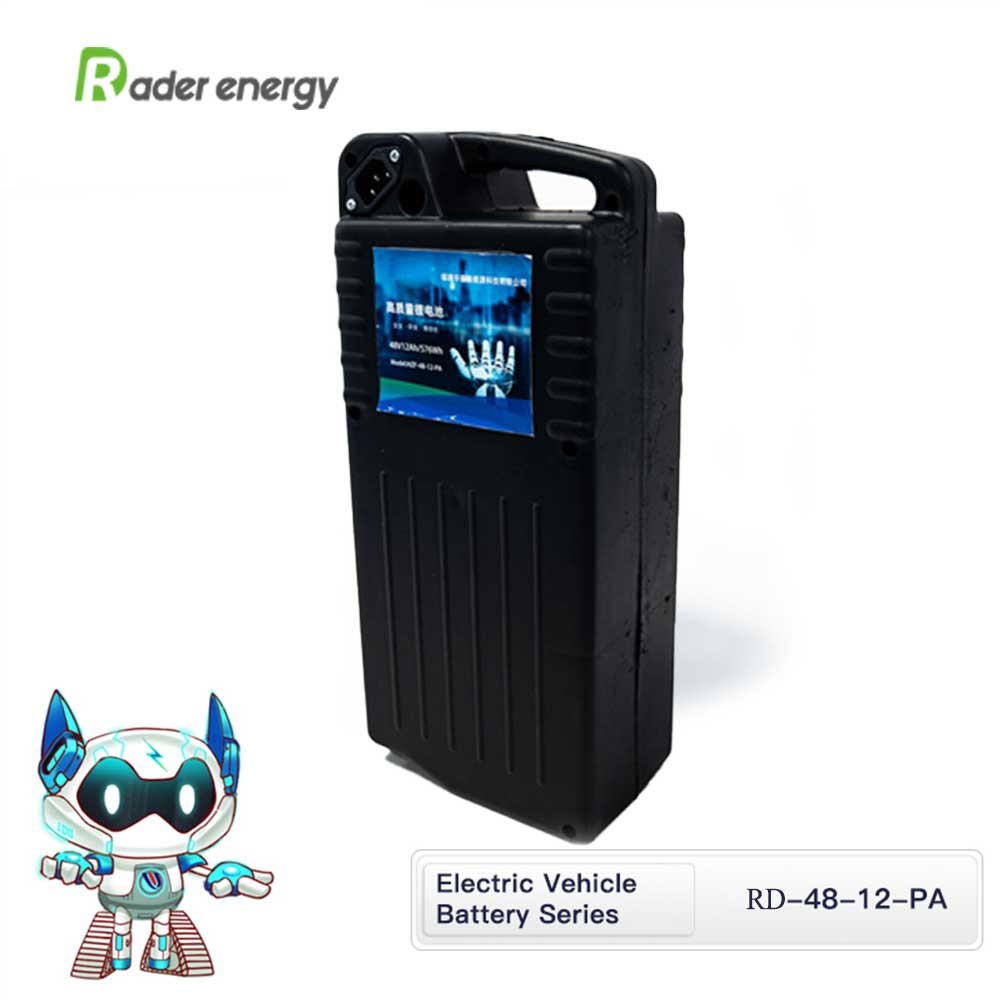

Small Internal Resistance Long time discharge 1500 Cycles Life LiFePO4 576Wh 48V Electric Scooter Power Battery

Brand: Rader
Product origin: china
Delivery time: within 20 days
Supply capacity: 100 thousand per month

· Long time discharge
· Suitable for standby power and energy storage power use

Product Description:

Product Description




ElectricalCharacteristics

Technology

Lifepo4

Nominal Voltage

48V

Nominal Capacity

12Ah±5%@0.2C

Energy

576Wh

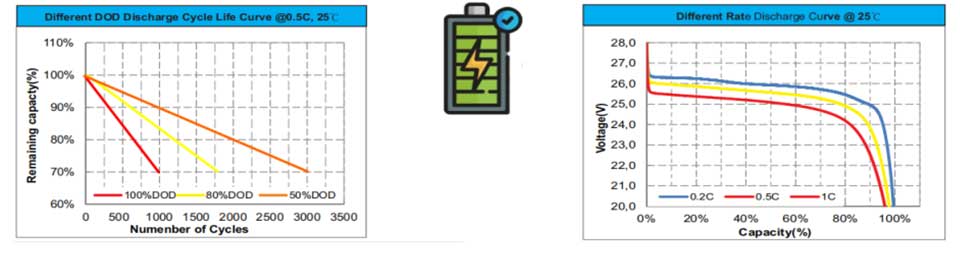

Cycle Life

100% Depth of Discharge ~1500 cycles

Internal Resistance

30mΩ





Charge

Charge mode

CC&CV(0.2C Constant current&54.75V

Constant voltage@0.02C)

Max. Charge Voltage

54.75V

Standard Charge Current

2.5A

Max.Charge Current

6A







Discharge

Discharge Cut-off Voltage

37.5V

Standard Discharge Current

6A

Max.Continuous

Discharge Current

12A



OperatingCondition

Storage Temperature

0℃to45℃(32℉to113℉)

Humidity

60±25%

Charge Temperature

0℃to 45℃(32℉to113℉)

DischargeTemperature

-20℃to 45℃(32℉to113℉)





Structure

Water Dust Resistance

IP65

Teminal

C13

Carrying

C2

Case and Cover

ABS

Dimension（L*W*H)

375*165*110mm

Weight

Approx6.2Kg
