1. Preface
This Product Specification describes the technique requirements,test procedures and precaution notes of Lithium-ion Rechargeable cell
It is claimed that we are free of any responsibility with the contingency and loss due to the cells’ wrong usage (not preferred in the product specification)
2. Description

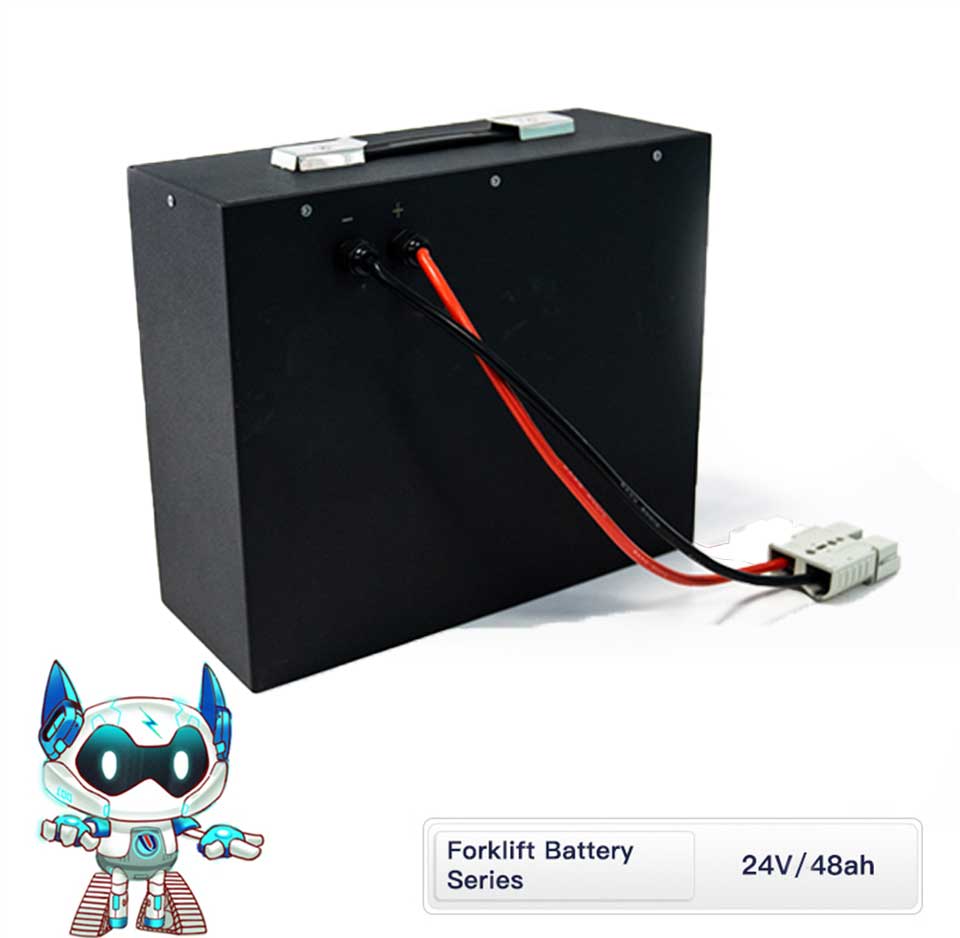

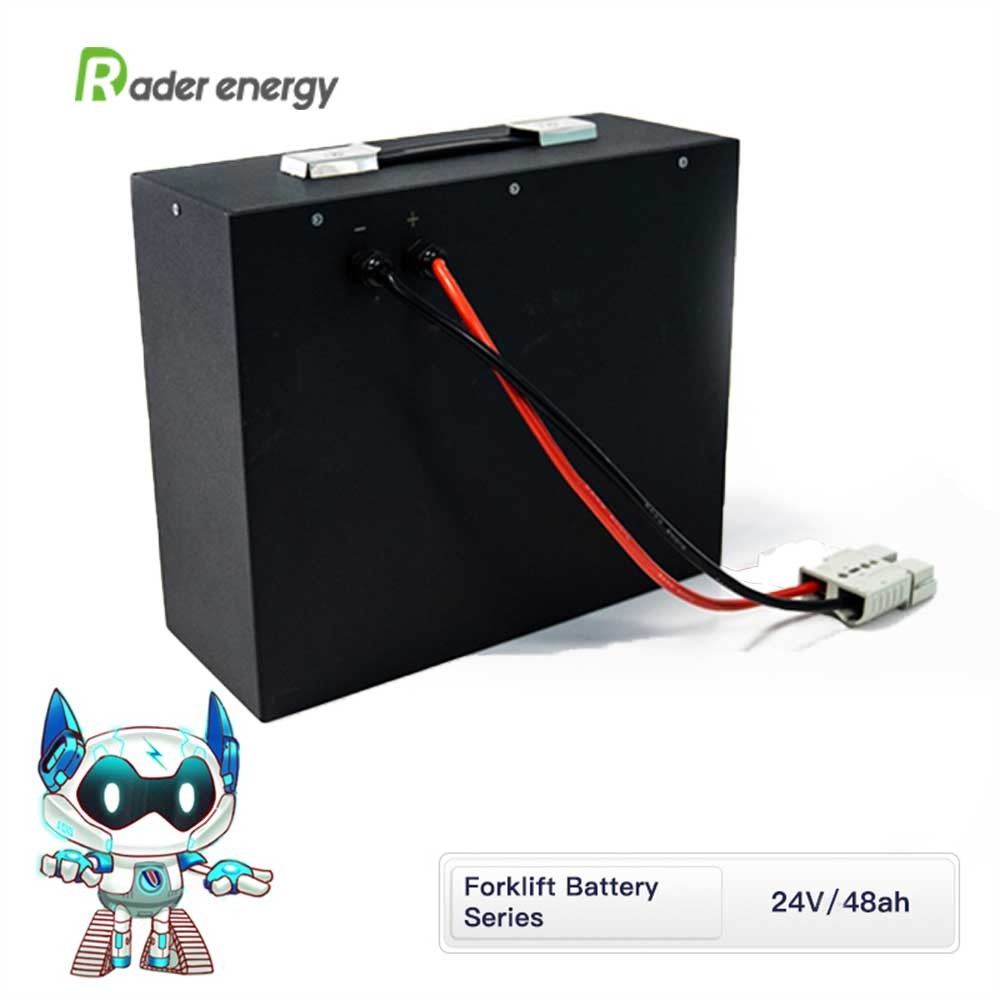

2.1 Product:Lithium Battery Pack and its PCM
2.2 Model: RD-24-48-PA
2.3 Type: Lifepo4 48Ah/24V 8P8S
2.4 Inner Cells: 32700-3.2V6Ah
3. Specification
3.1General
No | Item | Specifications | Remark |
1 | Nominal Capacity | 48Ah±5% | 0.2C5A discharge at 25℃ |
2 | Nominal Voltage | 24V | OCV |
3 | Charge Current | Standard:9.6A;Max:24A | Working temperature:0~45℃ |
4 | Charge cut-off Voltage | 29.2V | CC/CV |
5 | Discharge Current | Standard:24A ;Max:48A | Working temperature:-20~60℃ |
6 | Discharge cut-off Voltage | 20V | Not including cycle life,-10℃discharge |
7 | Pack Voltage | 26.62V~26.7V | Shipment status |
8 | Pack Impedance | ≤ 50mΩ | 50% SOC at 25℃ |
9 | Weight | Approx: 12.5 kg | ABS Case |
10 | Dimension | 230*113*293(Not included Terminal) | Approx |
3.2General Performance
Standard charge:
Charge battery pack with specific charger, 9.5A constant Current/constant voltage to 29.2V.
Environment temperature:23±2℃
Relative Humidity:65±20%RH
Pressure:86kPa~106kPa。
