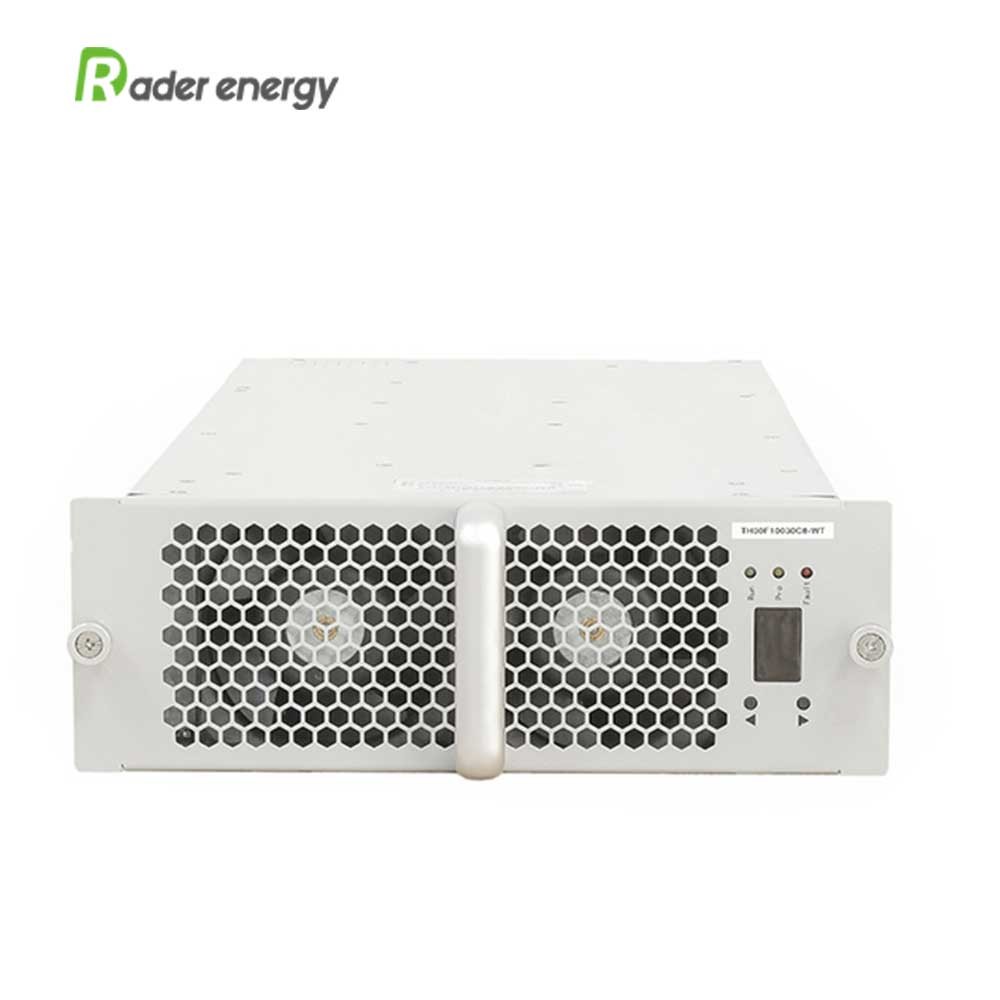

New Green Sustainable Energy High Efficiency 96% 30kW DC EV Charger Module With Wide output constant power range 300-1000VDC

New Green Sustainable Energy High Efficiency 96% 30kW DC EV Charger Module With Wide output constant power range 300-1000VDC

Wide output constant power range:300- 500VDC and 600- 1000VDC
Ultra-low standby power consumption: <10W
Ultra-low total harmonic distortion:≤5%
Ultra-wide operating temperature: -40°C-75°C
High conversion efficiency: peak efficiency≥96%

Product Description:

Product Advantages

Wide output constant power range: 300-1000VDC

Ultra-low standby power consumption: <10W

Ultra-low total harmonic distortion:≤5%

Ultra-wide operating temperature: -40℃-75℃

High conversion efficiency: peak efficiency ≥96%

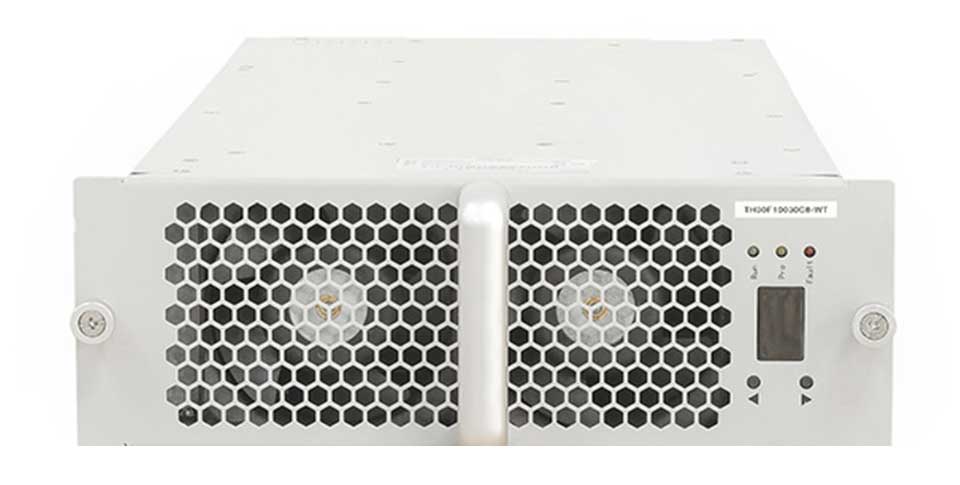

Model No.	RD30F10030C8-WT
AC Input	Input Voltage	Rated voltage 380VAC, 3W+PE, operating voltage range 285-475VAC
	Input Frequency	50/60Hz±10%
	Input Power Factor	≥0.99
	Input Overvoltage Protection	487±10VAC
	Input Undervoltage Protection	270±10VAC
DC Output	Rated Output Power	30KW
	Output Voltage Range	50-1000VDC
	Output Current Range	0.5-100A

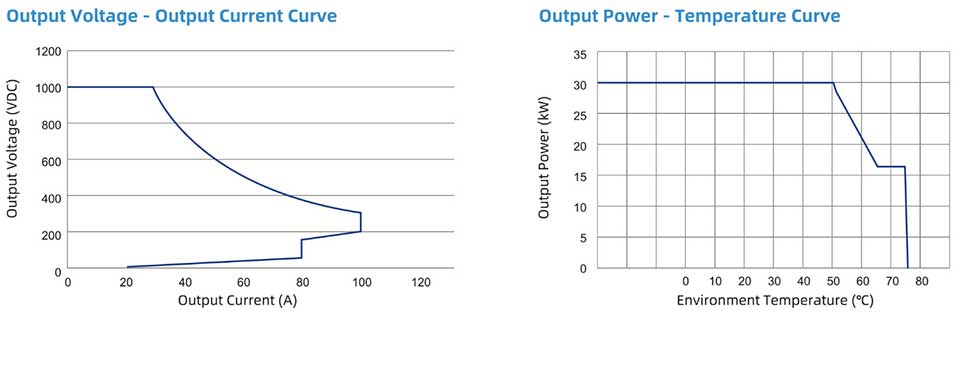

	Output Constant Power Range	300-1000VDC
	Peak Efficiency	≥96%
	Soft Start Time	3-8s
	Short Circuit Protection	Self-rollback protection
	Voltage Regulation Accuracy	≤±0.5%
	THD	≤5%
	Current Regulation Accuracy	≤±1%
	Current Sharing Imbalance	≤±5%
Operating Environment	Working Tempurature	-40℃-75℃
	Relative Humidity	≤95% no condensation
	Altitude	≤2000m，derating above 2000m
Product Features	Cooling Method	Fan cooling
	Standby Power Consumption	＜10W
	Communication Protocol	CAN
	Address Setting	Digital screen display,button operation
	Dimension	460mm×218mm×84mm(D×W×H）
	Weight	≤13kg
	MTBF	500000 hours
