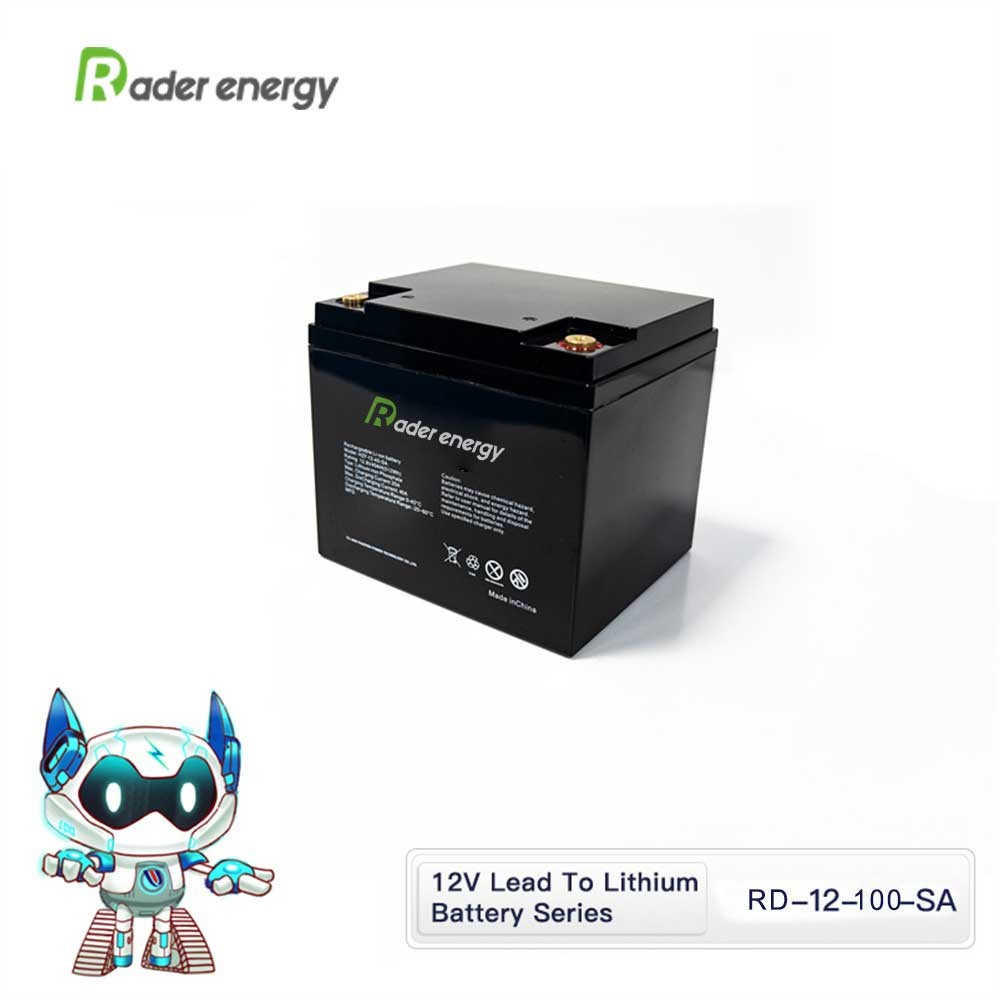

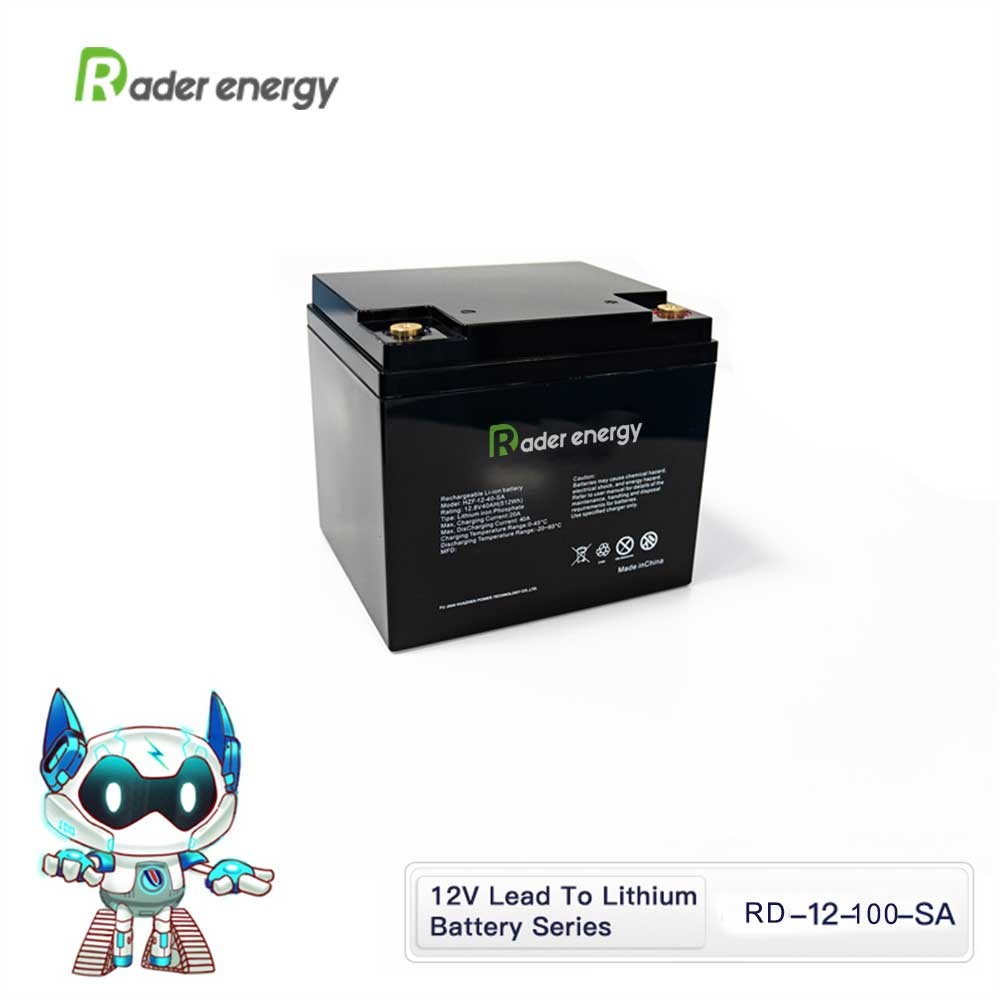

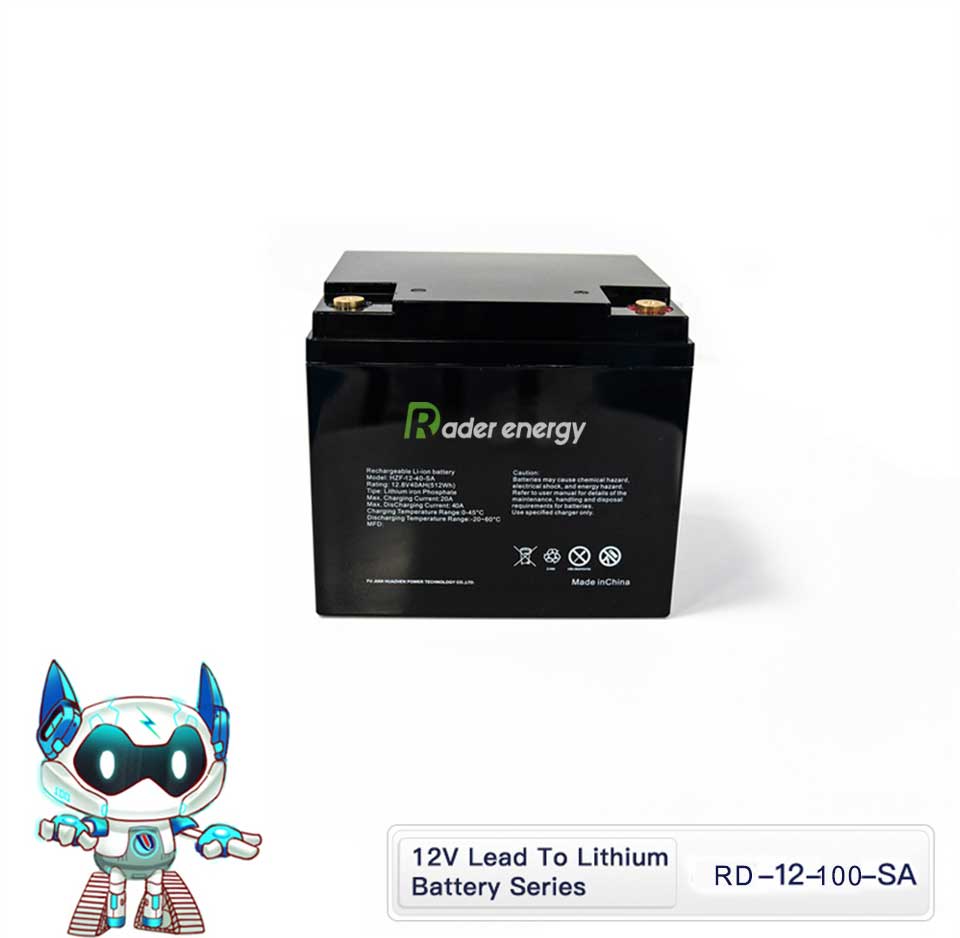

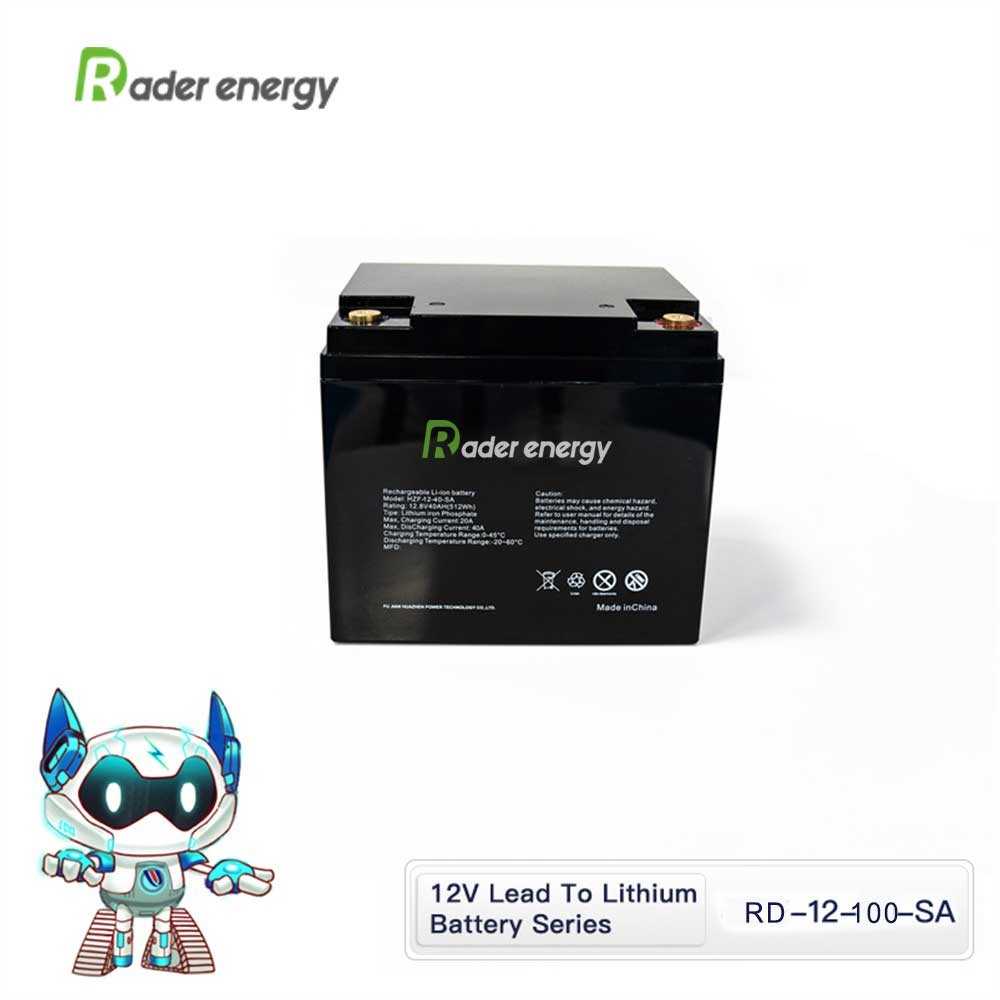

100A Discharge Current 50A Charge Current 1.28KWH 12V 100AH Series Solar Power Lithium Battery

100A Discharge Current 50A Charge Current 1.28KWH 12V 100AH Series Solar Power Lithium Battery

Brand: Rader
Product origin: china
Delivery time:within 20 days
Supply capacity: 50 thousand per month

1. Good safety performance: no electrolyte leakage, no battery expansion and rupture under normal use.
2, good discharge performance: stable discharge voltage, gentle discharge platform.
3. The battery in fully charged state is completely fixed and vibrated for 1 hour with an amplitude of 4mm and a frequency of 16.7Hz, without leakage, without battery expansion and rupture, and the open

PDF

Product Description:

Product Description

Electrical Characteristics	Technology	Lithium Iron Phosphate
	Nominal Voltage	12.8V
	Nominal Capacity	100Ah± 5%@0.2C
	Energy	1.28KWh
	Cycle Life	100%Depth of Discharge ~2000cycles
	Internal Resistance	20mΩ
Charge	Charge mode	CC&CV(0.2C Constant current &14.6V Constant voltage@0.02C)
	Max.Charge Voltage	14.6V
	Standard Charge Current	20A
	Max.Charge Current	50A
Discharge	Discharge Cut-of Voltage	10V
	Standard Discharge Current	50A
	Max.Continuous Discharge Current	100A
Operating Condition	Storage Temperature	0℃to45℃(32℉to113℉)
	Humidity	60±25%
	Charge Temperature	0℃to 45℃(32℉to113℉)
	DischargeTemperature	-20℃to 45℃(32℉to113℉)
Structure	Water Dust Resistance	IP65
	Terminal	M8
	Case and Cover	ABS
	Dimension (LWH)	330171220mm
	Weight	Approx11.5Kg
