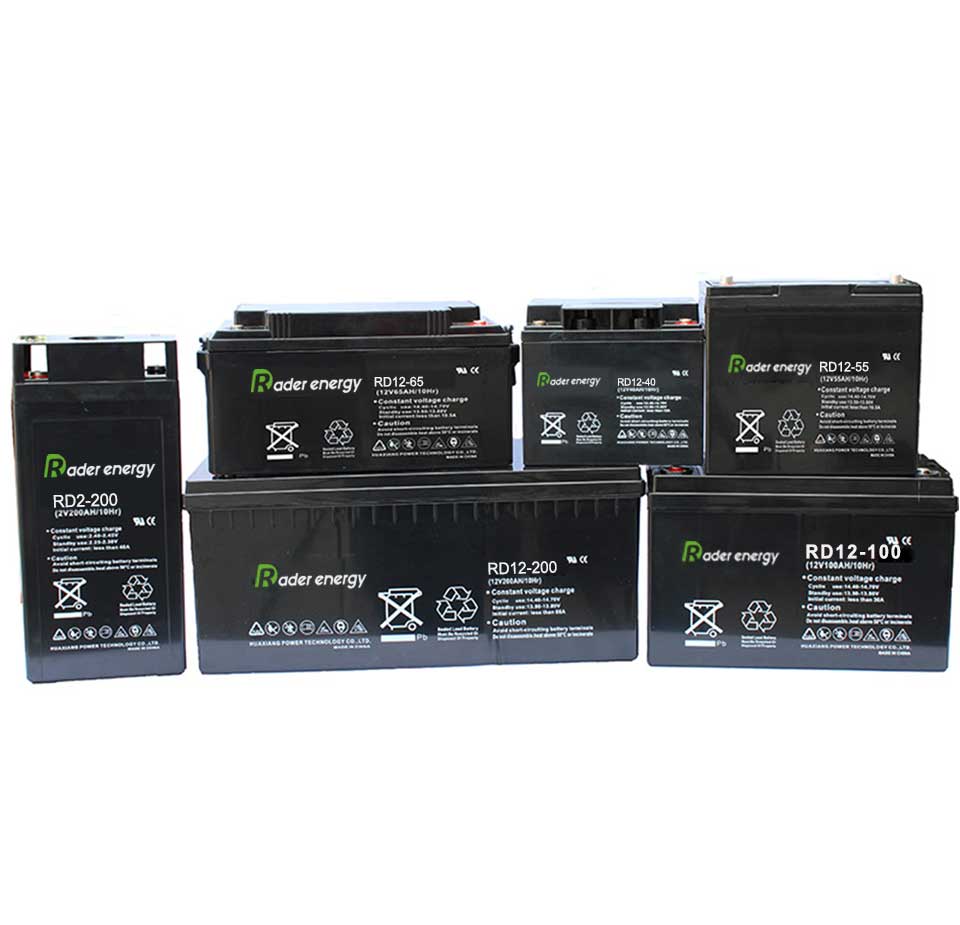

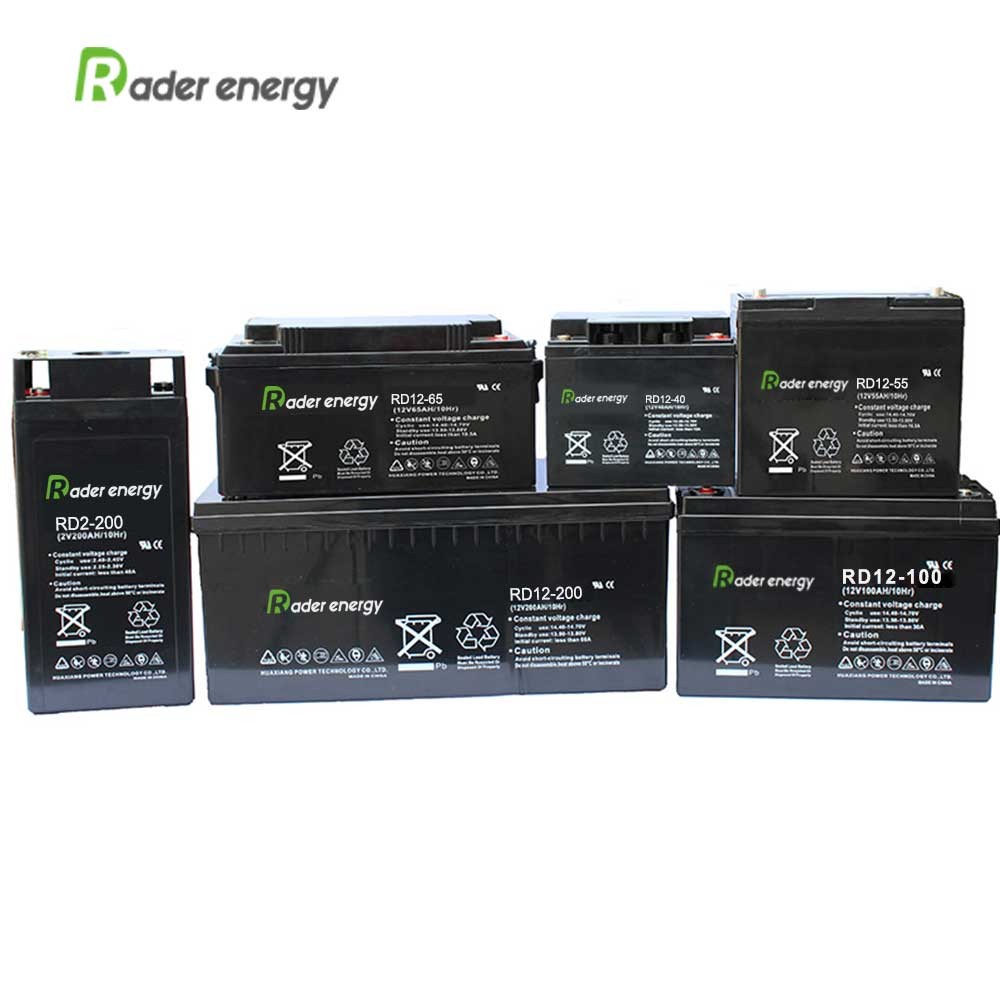

12V 40AH 55Ah 65AH 100AH 200AH 60mQ Internal resistance UPS Battery High Performance Sealed Lead Acid Battery

Brand: Rader
Product origin: china
Delivery time: within 20 days
Supply capacity: 200 thousand per month

1. Long discharge feature.
2. Suitable for backup and energy storage power supply.
3. Special dividers enhance the internal performance of the battery.
4. Special plate design, long cycle life
5. Large heat capacity, reduce the risk of thermal runaway, special lead calcium alloy formula
6. Strengthen the corrosion resistance of the grid and prolong the battery life. Not easy to dry

Product Description:

24V 5Ah UPS Battery High Performance Sealed Lead Acid Battery

Specifications

Nominal Voltage			24V
Capacity (25C)	20HR(21.0V)		5Ah
	10HR(21.0V)		4.7Ah
	1HR(19.2V)		3.2Ah
Dimension	Length		140±2mm (5.51inch)
	Width		90±1mm (3.54inch)
	Height		103±1mm (4.06inch)
	Total Height		109±1mm (4.29inch)
Approx. Weight			3.2kg (7.06lbs)±5%
Terminal type			F1/F2
Internal resistance (Fully charged, 25C)			Approx. 60mQ
Capacity affected by temperature (20HR)		40C	102%
		25C	100%
		0C	85%
		- 15C	65%
Self-discharge (25C)		3 month	Remaining Capacity: 91%
		6 month	Remaining Capacity: 82%
		12 month	Remaining Capacity: 65%
Nominal operating temperature			25C±3C(77℉±5℉)
Operatingtemperature range		Discharge	- 15C~50C(5℉~122℉)
		Charge	- 10C~50C(14℉~122℉)
		Storage	-20C~50C(-4℉~122℉)
Float charging voltage(25C)			27.2to 27.6V Temperature compensation: -36mV/C
Cyclic charging voltage(25C)			29.0to 30.0V Temperature compensation: -60mV/C
Maximum charging current			1.5A
Maximum discharge current			75A(5sec.)
Designed floating life(20C)			5years
