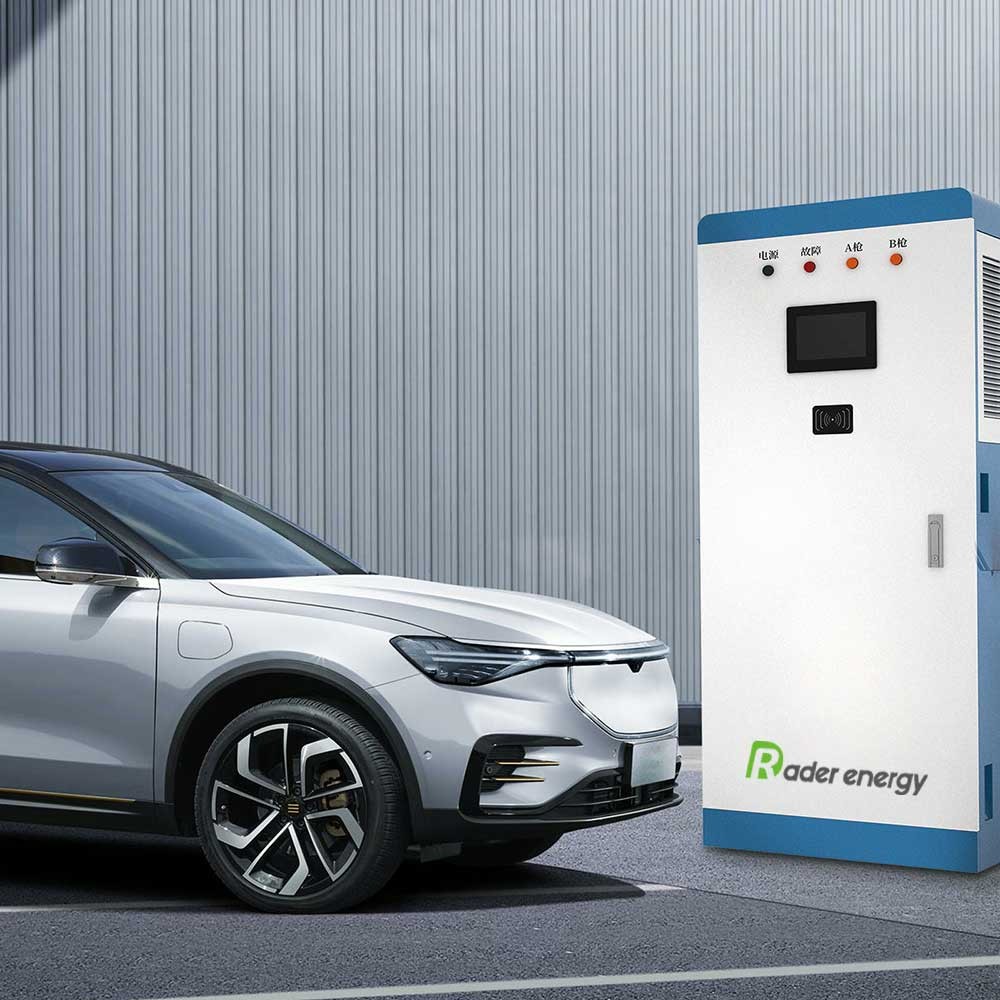

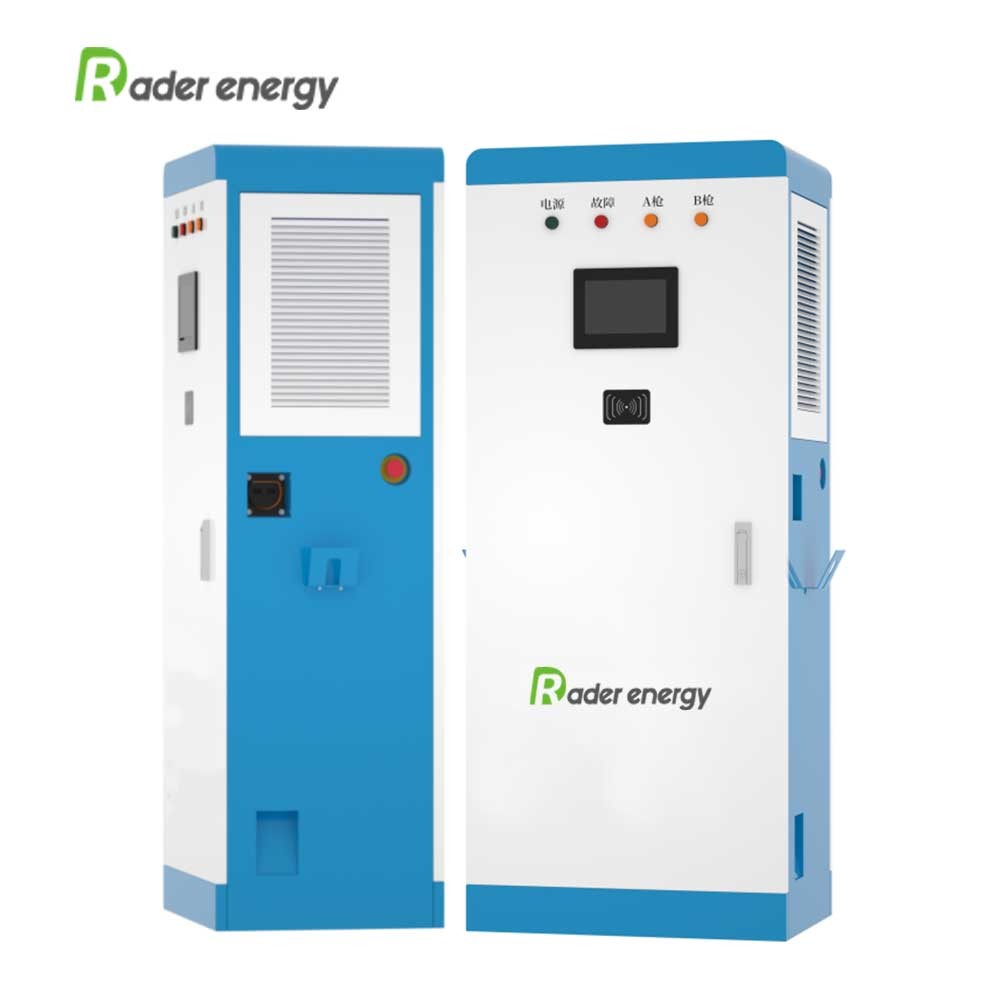

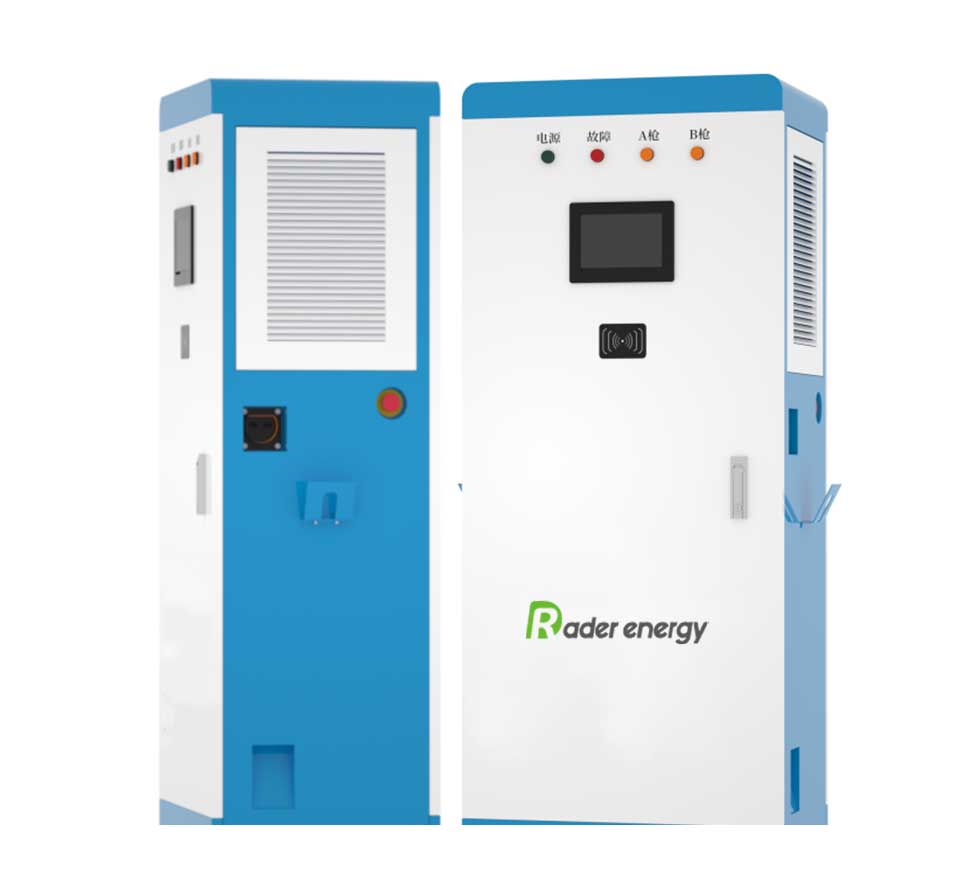

floor stand new energy 60KW 90KW 120KW fast DC EV charger integrated electric car charging station with OCPP1.6 2.0 Protocol

floor stand new energy 60KW 90KW 120KW fast DC EV charger integrated electric car charging station with OCPP1.6 2.0 Protocol

--Electric ev car charging stations with CCS 1, CCS 2, gb/t, ChAdeMo plug to charge cars.
--Screens show ev car charger electricity consumption, current, voltage, hours etc.
--Managing system for observing charging data, warning informations and history etc.
--Build in type C type B RCD leakage protection: detect all leakages from cars.
--App control start and stop ev cars charging, make appointment for charging.
--Self adjustable voltage & current to coordinate with ev cars' BMS.(200-1000V

Product Description:

PRODUCT PARAMETERS
Model No.	RD-D34BYT02	RD-D34CYT02
DC output voltage	DC150~500V	DC200~750V
Rated output current	Max 240A	Max 200A
Input voltage	AC380V±15%
Input frequency	50±5HZ
Rated output power	120KW
Cable Length	5 Meters(support choose different)
Payment Method	RFID Card,APP,OCPP

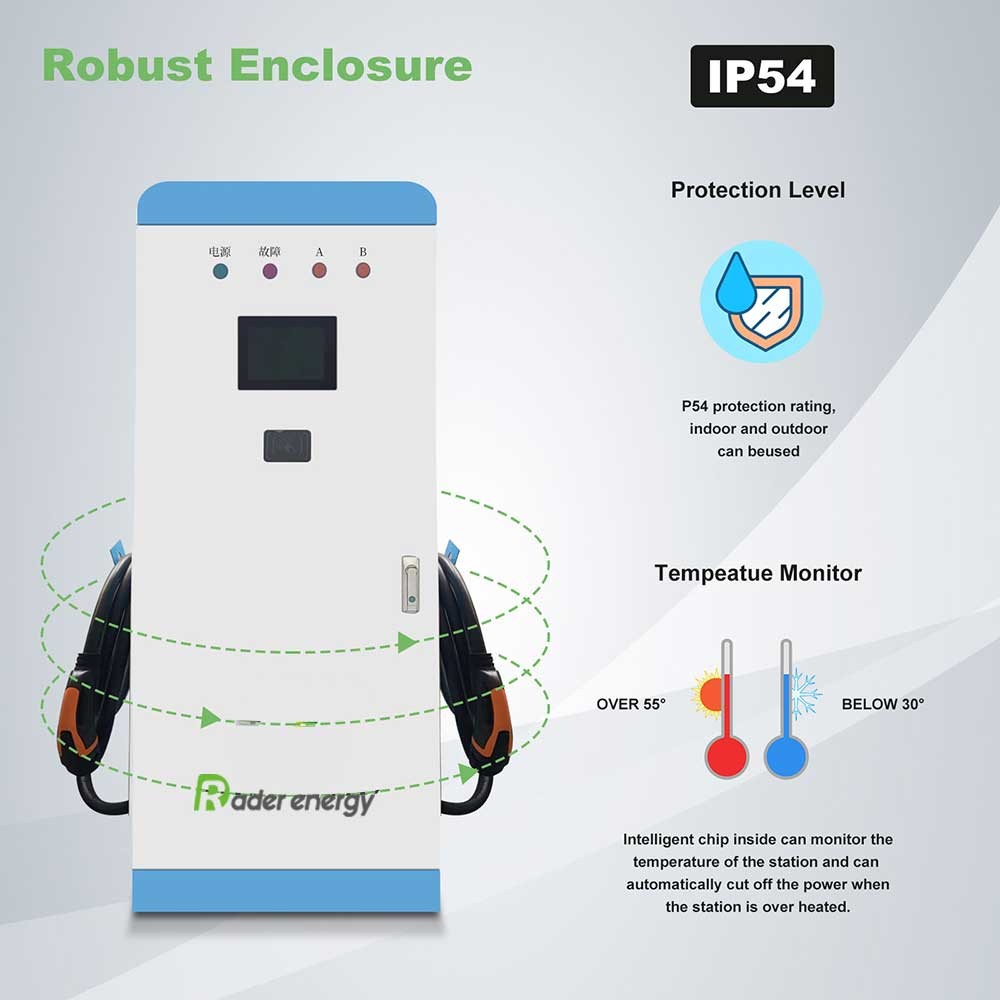

Ingress Protection(IP/IK rating)	IP54
Operating Temperature	-20℃ to +50℃
Storage Temperature	-40°C to +75°C
Maximum Installation Height	≤2000m

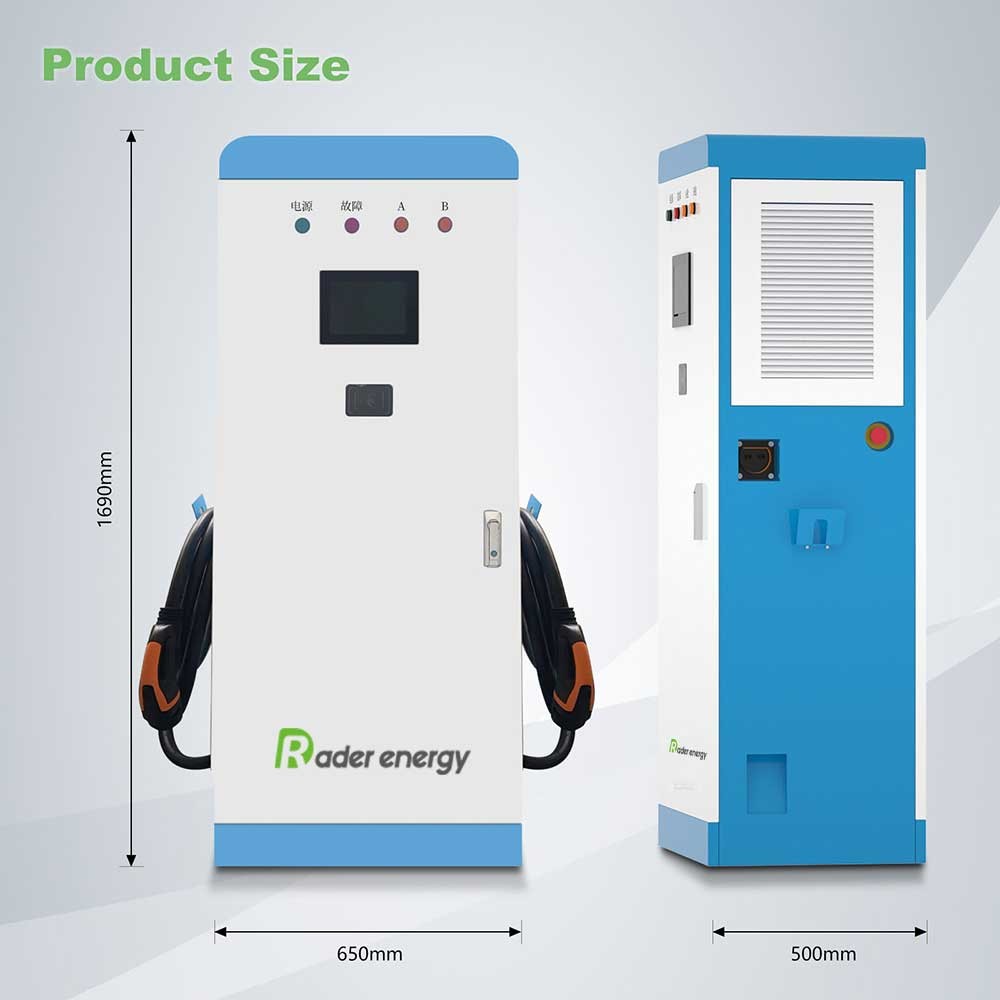

Product Size	650mm(L)500mm(W)1690mm(H)
Enclosure	Galvanized steel

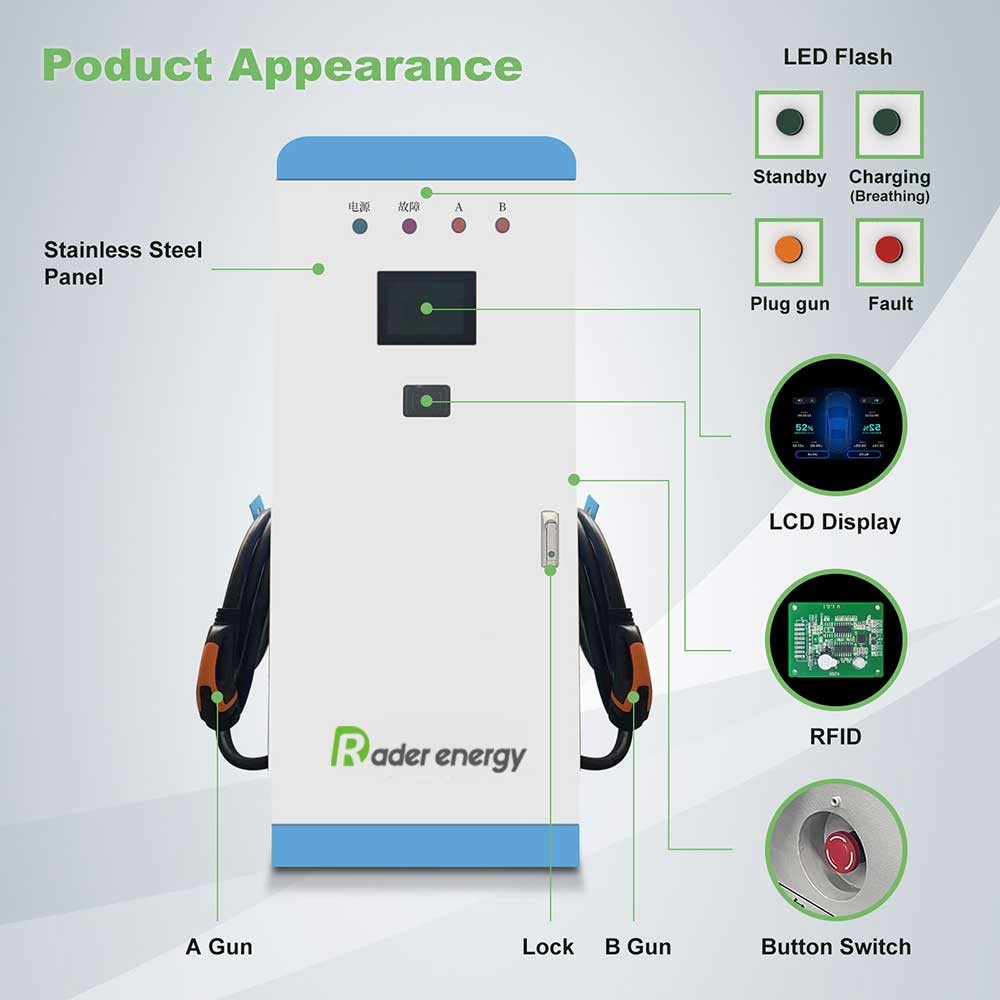

Status indication	The green light is the power supply, the yellow light is the charging indicator, and the red light is the fault indicator
Protection	Over Current,Under Voltage,Over Voltage,Short Circuit,Residual Current, Surge Protection,Over Temperature,Ground Protection
Custpm service	We support custom logo,package,design,cable length.
