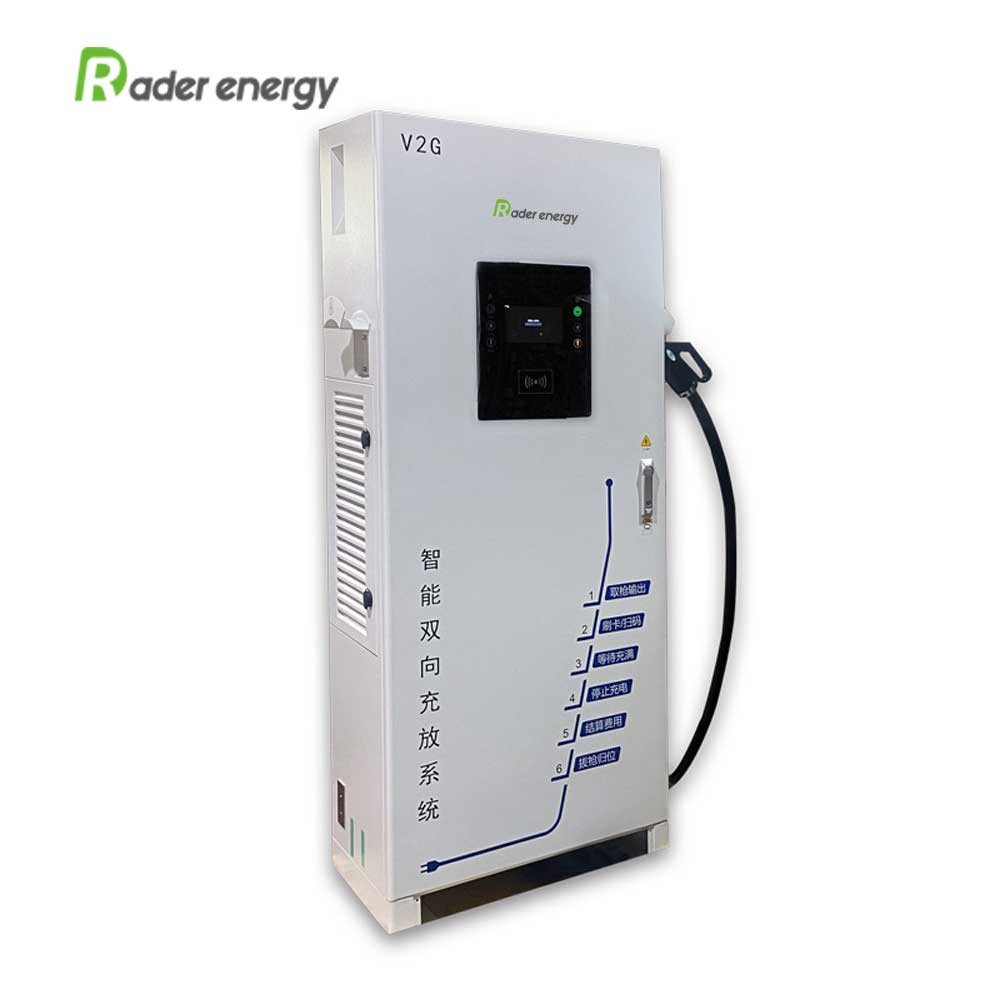

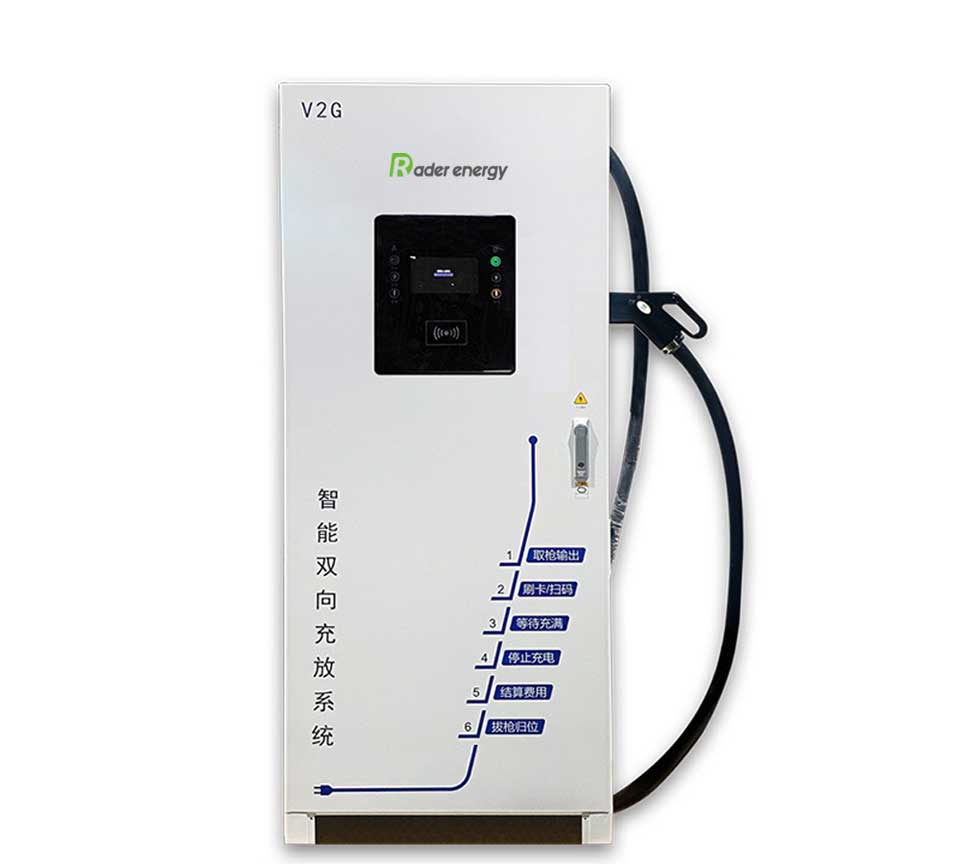

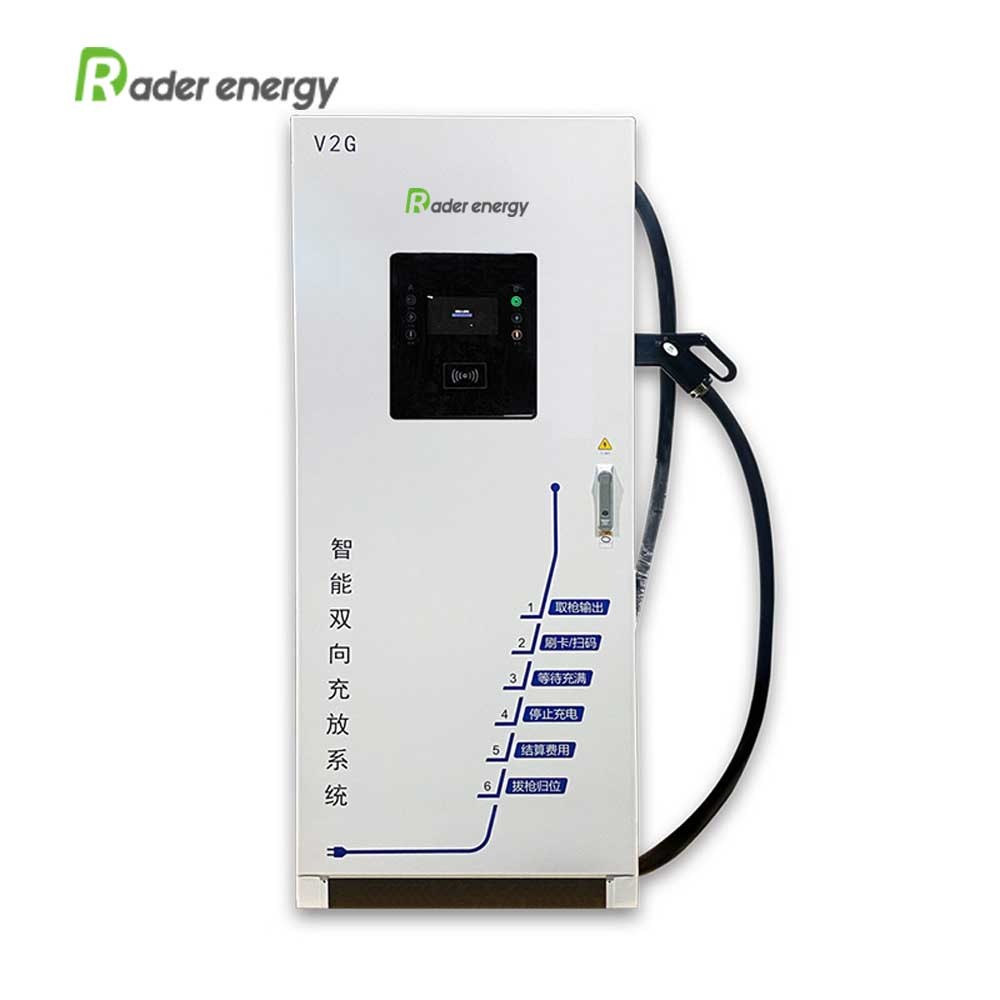

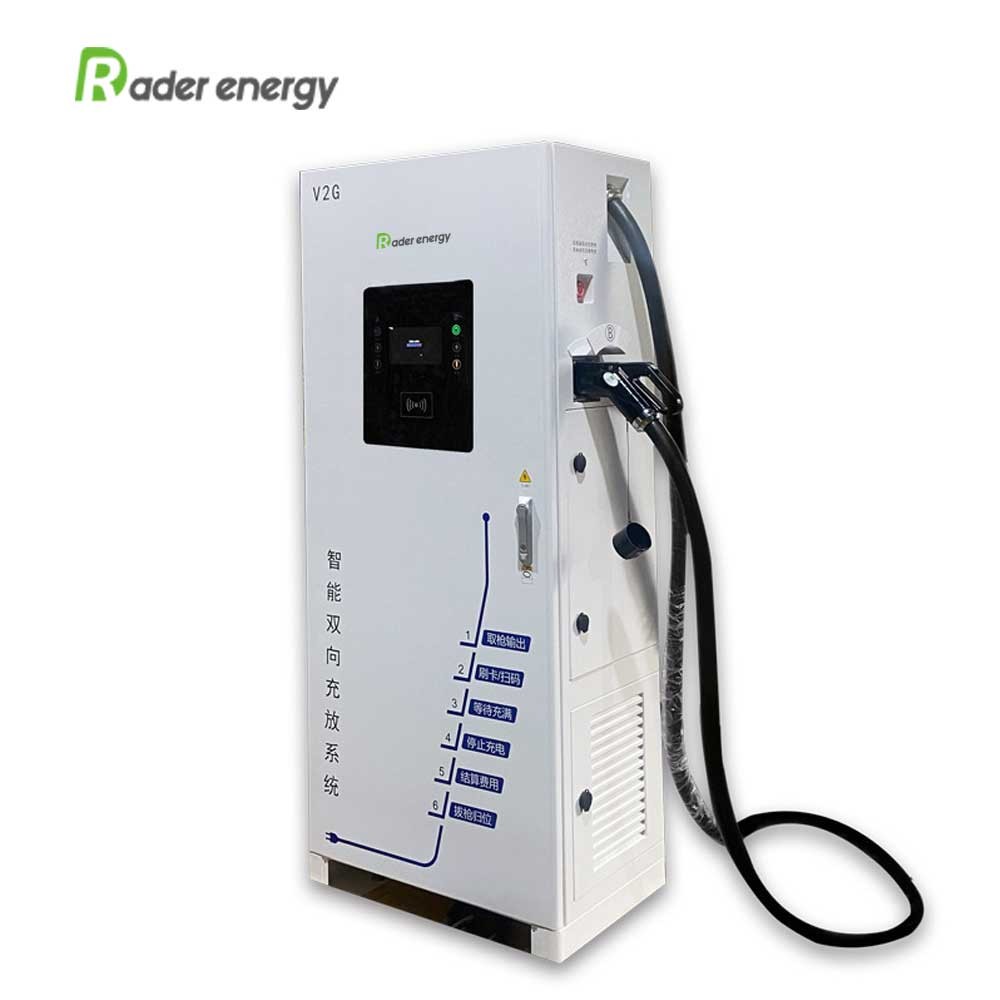

v2h/v2g bi-directional ev charger DC Charger Integrated fast charging 60kW/80kW V2G EV Charger stations

High performance bidirectional module, automatic control
Two-way flow between the vehicle and the power station, free charging and discharging
Real-time monitoring and adjusting charging and discharging strategies
Adapt to multiple BMS protocols and serve different brand vehicles

Product Description:

Technical Parameter

Charging mode parameters
Rated output power80kW
Grid side voltage380Vac±15%(Three phase)
Grid frequency50Hz±5Hz
DC side output voltage200~750Vdc
Constant power range400~750Vdc
DC side output currentSingle gun maximum 200A
Inverter mode parameters
Rated output power80kW
DC side input voltage200~750Vdc
Grid side voltage380Vac(Three phase)
Grid frequency50Hz±5Hz
system parameter
THDI<5%(Full load)
Power factor±-0.99(Full load)
Productiveness≥95%(Full load)
Wiring mode3P3W
noise≤65 dB
Cooling methodforced air cooling
Power distributionSupport
Number of charging gunsSingle gun, double gun
Protection levelIP54
Communication interfaceEthernet, 4G
Display7-inch touch screen
DC output characteristics
Output voltage range200 V~750 V
Output current rangeSingle gun maximum 200A
Voltage stabilization accuracyNot more than ± 0.5% (stabilized state, input voltage AC 323 V to 456 V, output voltage 200 V to 750 V, output current 0 to rated current value)
Steady current accuracyNot more than ± 1% (steady current state, input voltage AC 323 V to 456 V, output voltage 200 V to 750 V, output current 20% of rated current to rated current value)
Voltage ripple factorNot more than 1% (in stable state, the input voltage is AC 323 V to 456 V, the output voltage is 200 V to 750 V, and the output current is 0 to the rated current value)
Output voltage setting errorNot more than ± 0.5% (stabilized state, output voltage 200 V to 750 V)
Output current setting errorNot exceeding ± 0.3 A (set output DC current < 30 A)< br /> Not more than ± 1% (steady current state, set output DC current ≥ 30 A)
Voltage limiting characteristicsDuring steady current operation, when the DC output voltage exceeds the set value, the automatic limit output voltage increases and switches to steady state
Current limiting characteristicsDuring steady state operation, when the DC output current exceeds the set value, the automatic limit output current increases and changes to steady state
Maximum efficiency≥95%
Protection features: input overvoltage and undervoltage protection, input overcurrent protection, output overvoltage and undervoltage protection, overtemperature protection, etc
