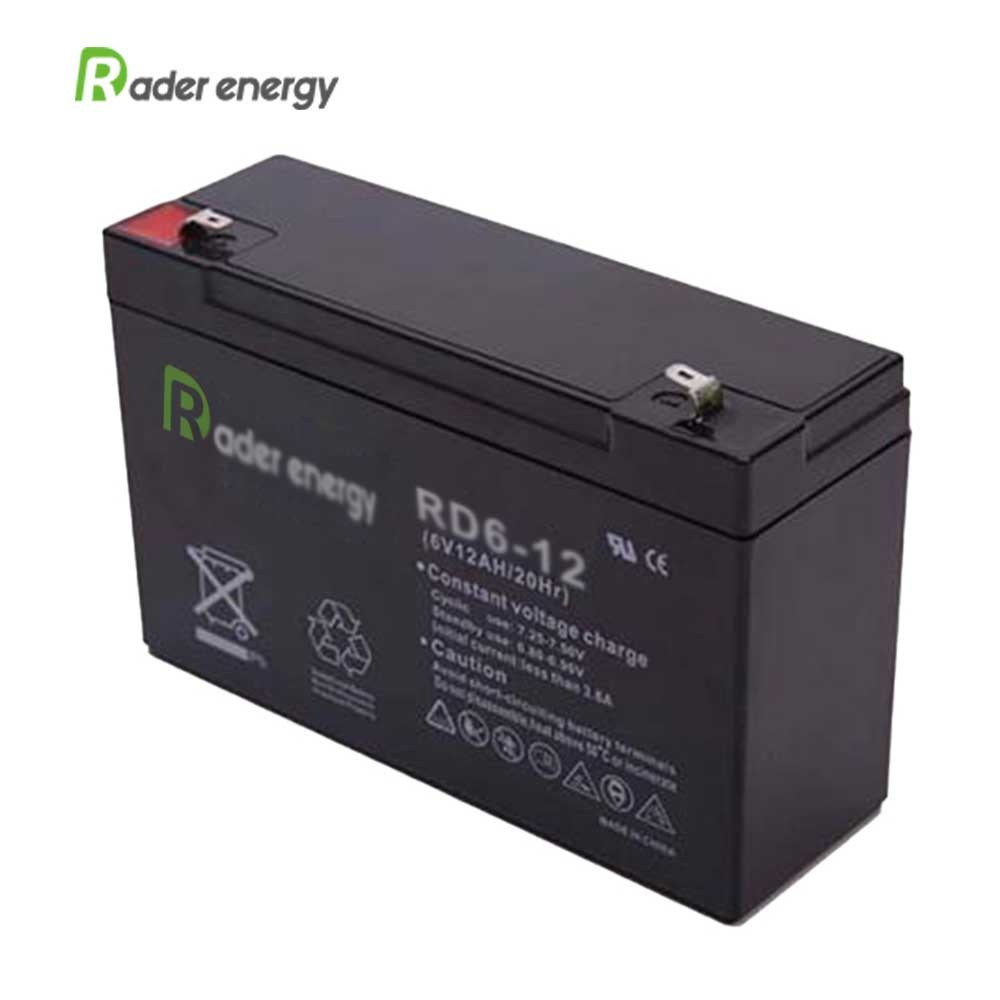

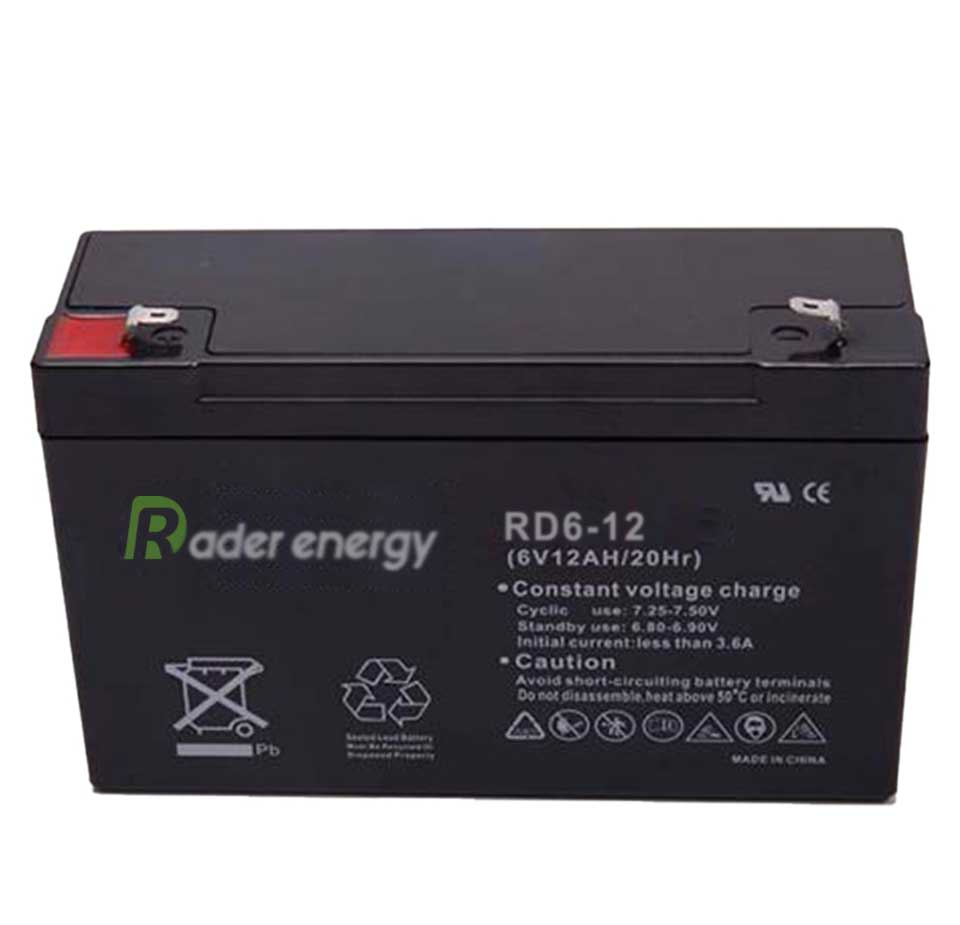

6V 12Ah UPS Battery VRLA Sealed Lead-Acid AGM Battery for Emergency Lighting/ Electric Toy/ Alarm System/ Electronic Scale, Rechargeable Maintenance Free Battery

6V 12Ah UPS Battery VRLA Sealed Lead-Acid AGM Battery for Emergency Lighting/ Electric Toy/ Alarm System/ Electronic Scale, Rechargeable Maintenance Free Battery

Brand: Rader
Product origin: china
Delivery time: within 20 days
Supply capacity: 200 thousand per month

Low self-discharge rate
Wide operating temperature rangeSafety
Stable & Reliable

Product Description:

6V 12Ah UPS Battery VRLA Sealed Lead-Acid AGM Battery for Emergency Lighting/ Electric Toy/ Alarm System/ Electronic Scale,

Rechargeable Maintenance Free Battery

Specifications

Nominal Voltage			6 V
Capacity (25C)	20HR(5.25V)		12Ah
	10HR(5.25V)		11Ah
	1HR(4.80V)		7.8Ah
Dimension	Length		151±1.5mm (5.94inch)
	Width		50±1mm (1.97inch)
	Height		94±1mm (3.70inch)
	Total Height		100±1mm (3.94inch)
Approx. Weight			1.75kg (3.86lbs)±5%
Terminal type			F1/F2
Internal resistance (Fully charged, 25C)			Approx. 12mQ
Capacity affected by temperature (20HR)		40C	102%
		25C	100%
		0C	85%
		- 15C	65%
Self-discharge (25C)		3 month	Remaining Capacity: 91%
		6 month	Remaining Capacity: 82%
		12 month	Remaining Capacity: 65%
Nominal operating temperature			25C±3C(77℉±5℉)
Operatingtemperature range		Discharge	- 15C~50C(5℉~122℉)
		Charge	- 10C~50C(14℉~122℉)
		Storage	-20C~50C(-4℉~122℉)
Float charging voltage(25C)			6.80to 6.90V Temperature compensation: -9mV/C
Cyclic charging voltage(25C)			7.25to 7.50V Temperature compensation: - 15mV/C
Maximum charging current			3.6A
Maximum discharge current			180A(5 sec.)
Designed floating life(20C)			5years
