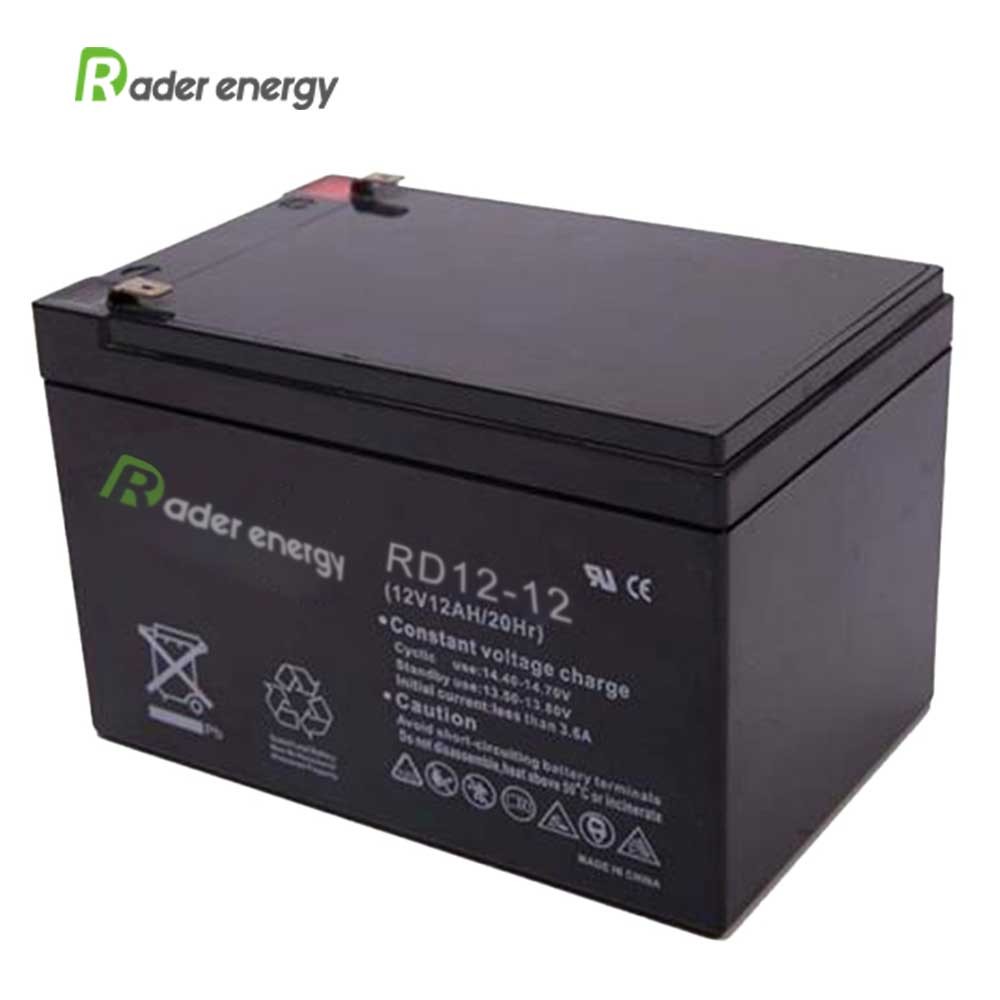

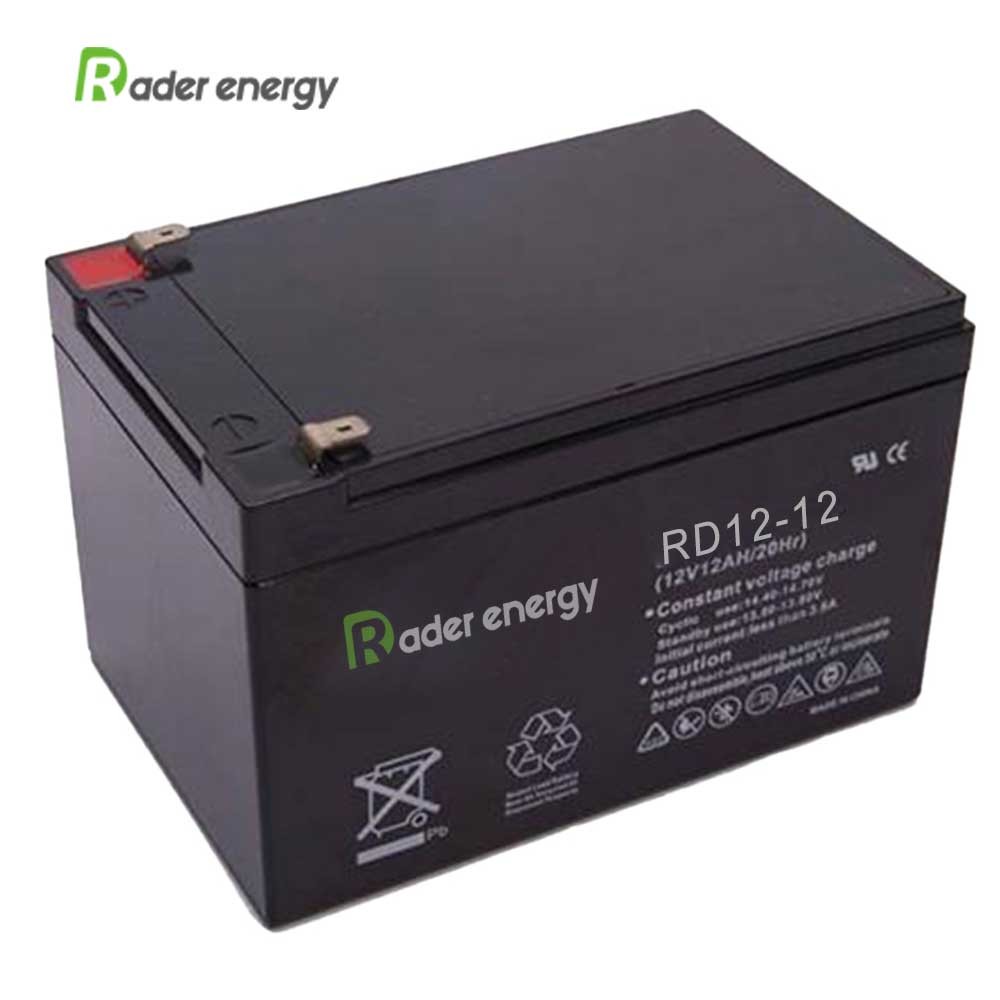

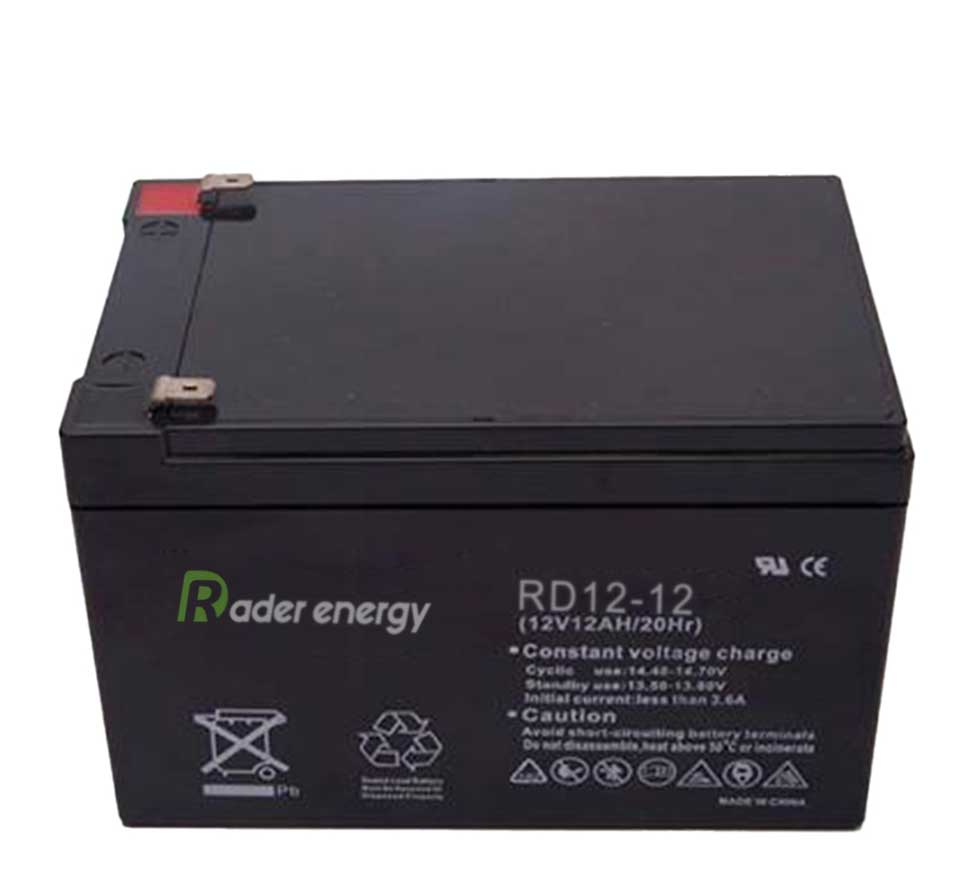

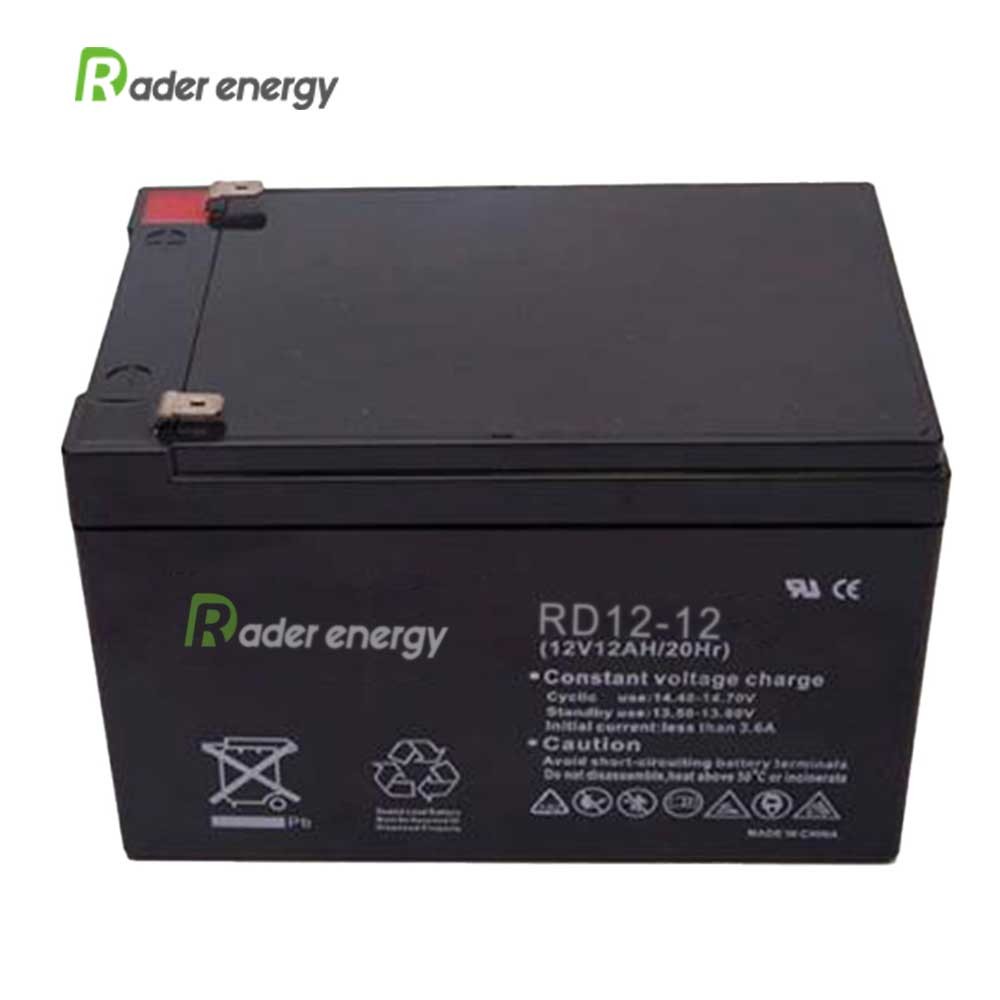

12V 12Ah Rechargeable Battery Safety Sealed deep cycle Lead Acid Batteries Gel AGM Battery

12V 12Ah Rechargeable Battery Safety Sealed deep cycle Lead Acid Batteries Gel AGM Battery

Brand: Rader
Product origin:china
Delivery time: within 20 days
Supply capacity: 50 thousand per month

1) The battery consists of high-performance paste plate,low resistance separators,high-impact resistant polypropylene plastic tank .
2) Stable performance in different temperature working environment..Low internal resistance and high starting.

Product Description:

2V 12Ah Rechargeable Battery Safety Sealed Lead Acid Batteries Gel AGM Battery

Nominal Voltage			12 V
Capacity (25C)	20HR(10.5V)		12Ah
	10HR(10.5V)		11.2Ah
	1HR(9.60V)		7.8Ah
Dimension	Length		151±1.5mm (5.94inch)
	Width		98±1mm (3.86inch)
	Height		95±1mm (3.74inch)
	Total Height		101±1mm (3.98inch)
Approx. Weight			3.45kg (7.61lbs)±5%
Terminal type			F2/F1
Internal resistance (Fully charged, 25C)			Approx. 20mQ
Capacity affected by temperature (20HR)		40C	102%
		25C	100%
		0C	85%
		- 15C	65%
Self-discharge (25C)		3 month	Remaining Capacity: 91%
		6 month	Remaining Capacity: 82%
		12 month	Remaining Capacity: 65%
Nominal operating temperature			25C±3C(77℉±5℉)
Operatingtemperature range		Discharge	- 15C~50C(5℉~122℉)
		Charge	- 10C~50C(14℉~122℉)
		Storage	-20C~50C(-4℉~122℉)
Float charging voltage(25C)			13.60to 13.80V Temperature compensation: - 18mV/C
Cyclic charging voltage(25C)			14.50to 15.00V Temperature compensation: -30mV/C
Maximum charging current			3.6A
Maximum discharge current			180A(5 sec.)
Designed floating life(20C)			5years
