Raderenergy 22kw 3 phase ev charger From china manufacturer provide OEM ODM service

Raderenergy 22kw 3 phase ev charger From china manufacturer provide OEM ODM service

Power	22kw
Display	4.3 Inches Screen
Installation	Column/Wall-Mounted Type
Equipment size	L324*W161*H1430(mm) / L359*140*H510(mm)
Input voltage range	AC380V±15%
Output current range	32 Amp
Output voltage range	AC380V±15%
IP rating	IP 55
Working Temp	-25 to 55°C
protocol	OCPP 1.6J Protocol (Optional)
Network selection	Ethernet/3G/4G/WIFI (Optional)
Protect
Over Current, Over Voltage, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperatur

Product Description:

Power Up Faster with Our 22kW 3 Phase EV Charger: Ultimate Efficiency for Homes & Businesses

Product Overview

Designed for high-performance charging, our 3 phase 22kW EV charger delivers rapid power delivery while balancing energy efficiency. Compatible with all 3 phase EV charging station infrastructures, it provides a future-proof solution for residential, commercial, and public installations.

Key Features of 22kW 3 Phase EV Charger

1️⃣ 3-Phase Fast Charging Technology

Experience 3x faster charging than single-phase units – our 3 phase charger for EV replenishes 100-150km range per hour*, reducing downtime for drivers and maximizing fleet utilization.

2️⃣ Adaptable Installation

From compact home garages to large-scale 3 phase EV charging station networks, this charger supports dynamic voltage adjustment (380V-415V) and IP65-rated durability for indoor/outdoor deployment.

3️⃣ Smart Energy Management

Integrated load balancing protects your grid from overloads, while real-time monitoring via mobile app allows remote scheduling, cost tracking, and firmware updates.

4️⃣ Cost-Effective Operation

Optimize ROI with lower per-kWh costs compared to DC fast chargers. The 3 phase 22kW EV charger minimizes infrastructure upgrades, requiring only standard 3-phase power supply.

5️⃣ Safety-Certified Design

CE/ISO-certified components ensure protection against overcurrent, short circuits, and surge voltages, meeting EU/US/AU safety standards.

Market Applications

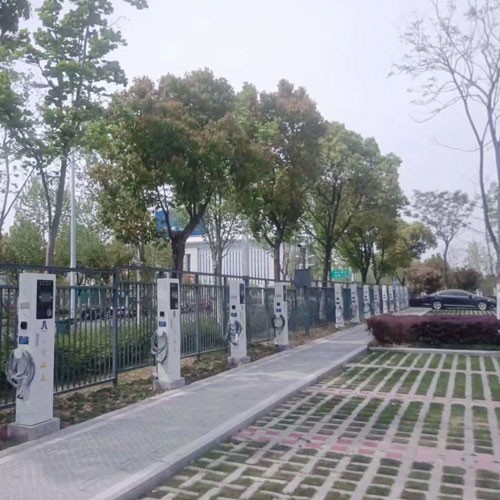

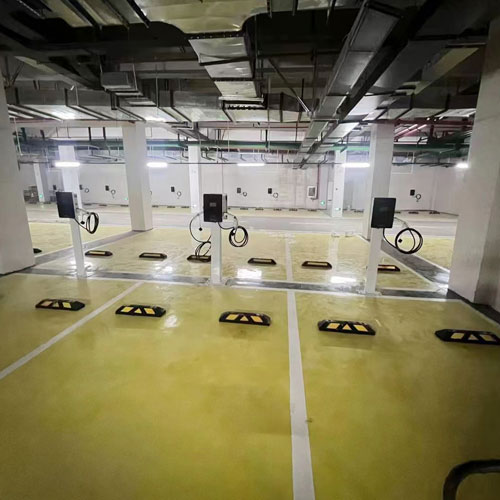

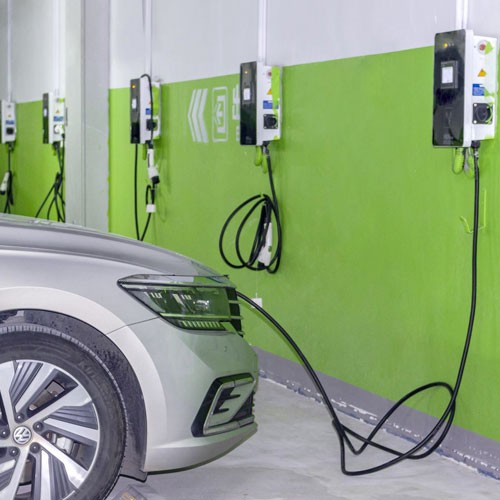

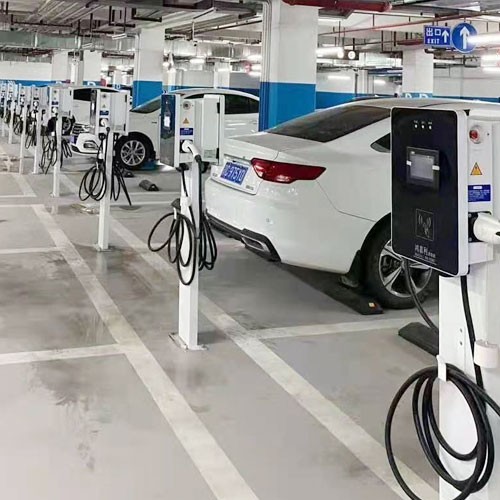

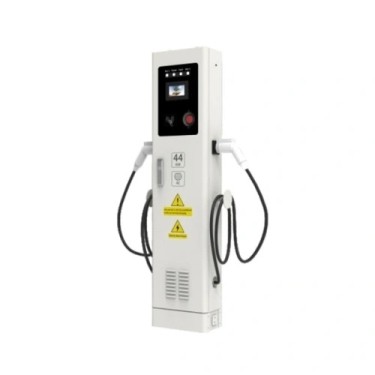

Electric car charging station 22kw ev charger refers to electric vehicle charging equipment with an output power of 22 kilowatts. It is divided into wall-mounted, column-mounted, and floor-standing types, which can adapt to different charging environments and needs.

Electric car charging station 22kw ev charger has the characteristics of fast charging, flexible installation, economical and practical, stable and safe, and intelligent management. It has a wide range of application prospects in the market and can be used for charging at home or in shopping malls, hotels, office buildings and other places.

Electric car charging station 22kw ev charger product technical parameters are as follows:

Parameters	Requirements
General Requirements
EV Charger Type	AC
Charger Capacity	22KW
Equipment size	L324W161H1430(mm) / L359140H510(mm)
Product Model NO.	ENC-ACB/L022A

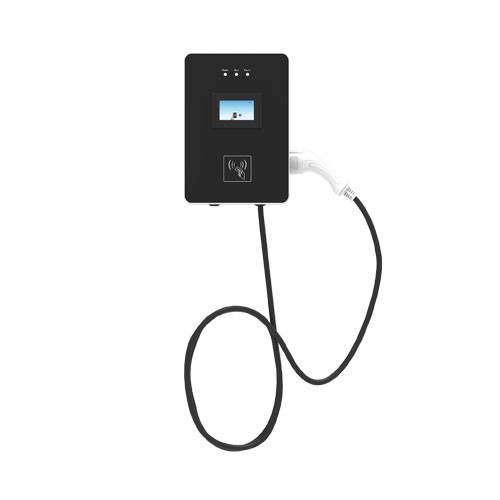

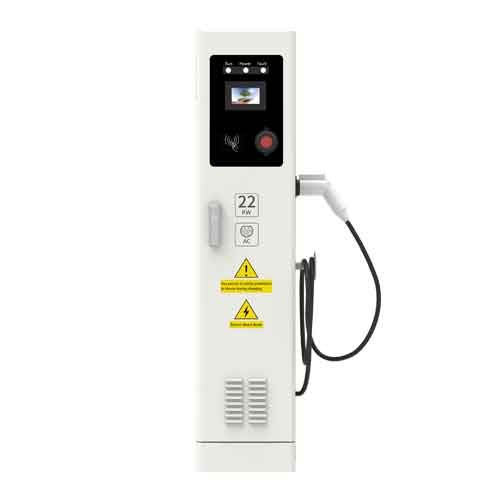

Mounting	Wall-Mounted/Column Type
Input Requirements
AC Supply System	Single-Phase, 3 Wire AC system(ANSI)
AC Supply System	Three-Phase, 5 Wire AC system(ENC)
Nominal Input Voltage	AC380V±15%
Input Frequency	50±3Hz
Environmental Requirements
Ambient Temperature Range	-25 to 55°C
Ambient Humidity	5 to 95%
Storage Temperature	-40 to 70°C
Mechanical Requirements
IP Ratings	IP 55
Cooling	Natural Cooling
Output Requirements
Number of Outputs	1
Type of Each Output	AC380V±15%
Single Output Max.Current	32 Amp
User Interface & Display Requirements
Display & Touch-Screen Size	4.3 Inches Screen
User Authentication	QR Code/RFID Card /Password Login
Metering Information	Consumption Units
Communication Requirements
Communication between EVSE and Central server	OCPP 1.6J Protocol (Optional)
Interface between Charger and CMS	Ethernet/3G/4G/WIFI (Optional)
Protection & Safety Requirements
Executive Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772, etc.
Safety Parameters	Over Current, Over Voltage, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc.
